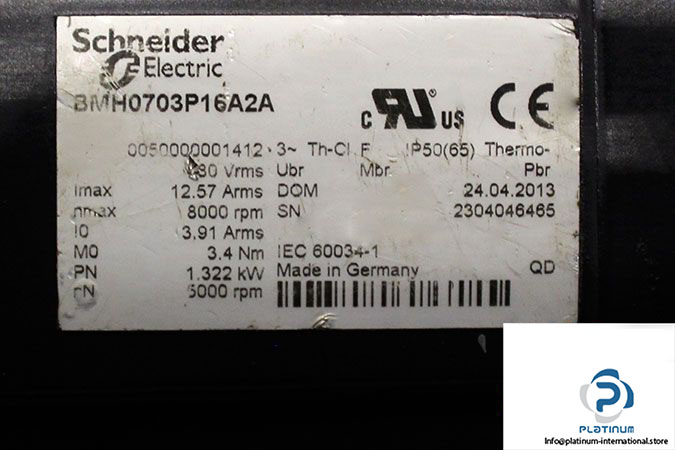

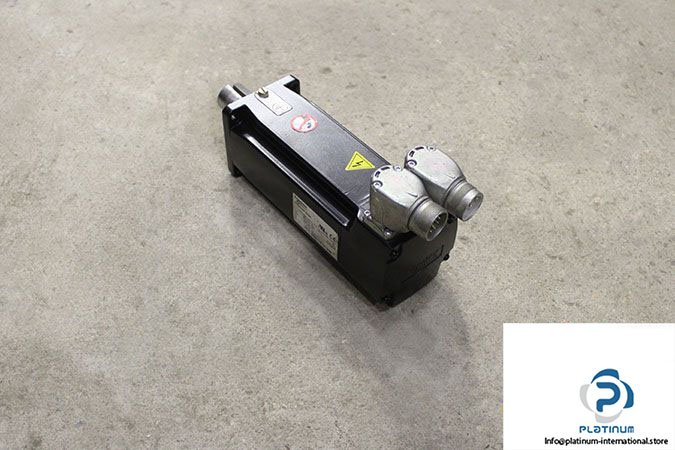

Schneider BMH0703P16A2A Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motor

Model: BMH0703P16A2A

Device Short Name: BMH

Rated Voltage [V]: 480

Continuous Stall Torque [Nm]: 3.4

Peak Stall Torque [Nm]: 10.2

Nominal Output Power [W]: 1.322

Nominal Torque [Nm]: 2.4

Nominal Speed [rpm]: 5000

Maximum Speed [rpm]: 8000

Continuous Stall Current [A]: 3.91

Continuous Power [W]: 1.68

Maximum Permanent Current [A]: 12.57

Degree of Protection [IP]: 50 (56)

Speed Feedback Resolution: 32768 Points/Turn

Mounting Support: International Standard Flange

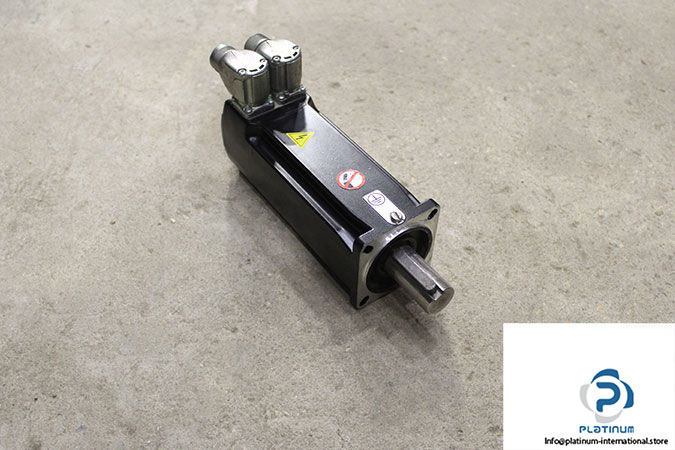

Shaft End: Keyed

Shaft Diameter [mm]: 14

Shaft Length [mm]: 30

Thermal Class: F

Weight [kg]: 3.3
