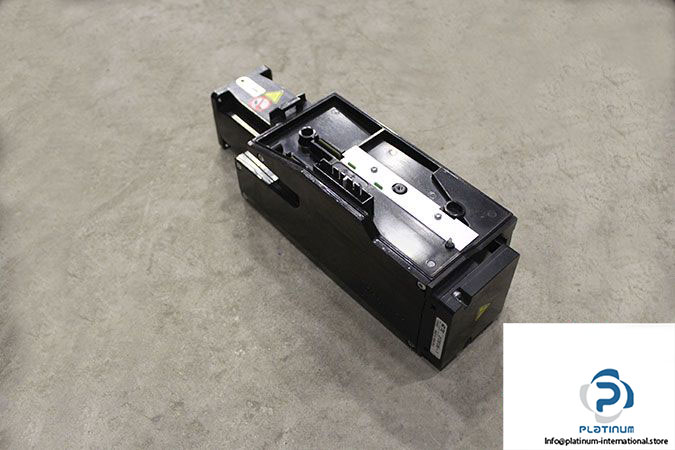

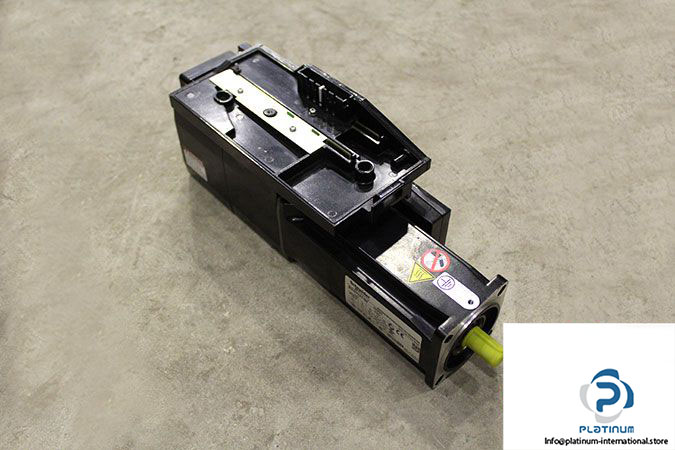

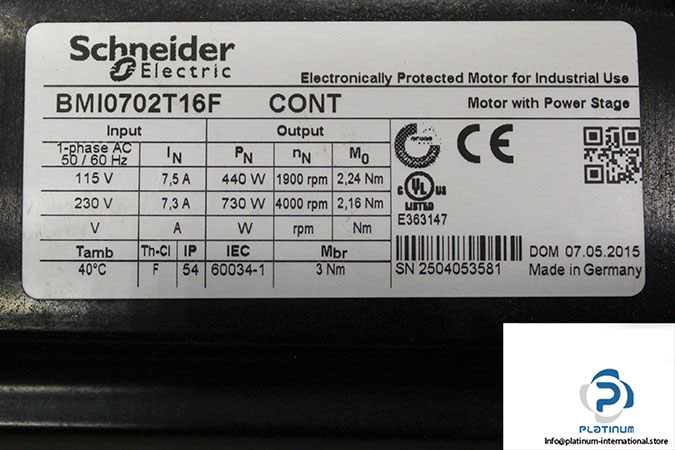

Schneider BMI0702T16F Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motors

Model: BMI0702T16F

Rated Voltage [V]: 115/230

Rated Current [A]: 7.5/7.3

Stall Torque [Nm]: 2.24/2.16

Rated Power [W]: 440/730

Rated Speed [rpm]: 1900/4000

Max Speed [rpm]: 8000

Ambient Temperature [°C]: 40

Frequency [Hz]: 50/60

Flange Size [mm]: 70

Number of Poles: 10

Shaft End: Keyed

Shaft Diameter [mm]: 11

Shaft Length [mm]: 23

Key Width [mm]: 4

Protection Class [IP]: 54

Duty: S1 Cont.

Insulation Class: F

Weight [kg]: 4.56
