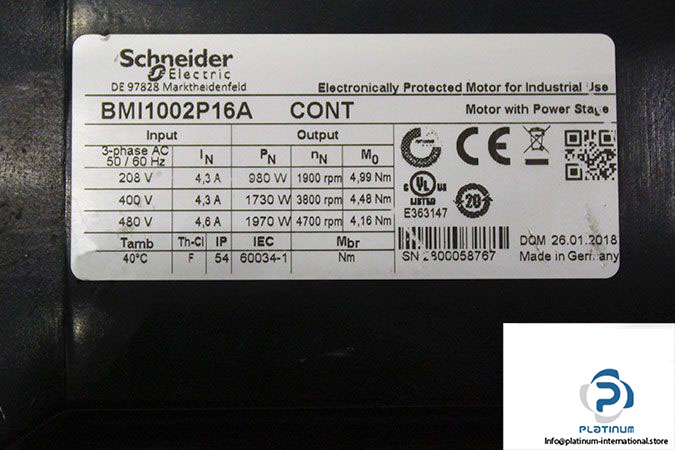

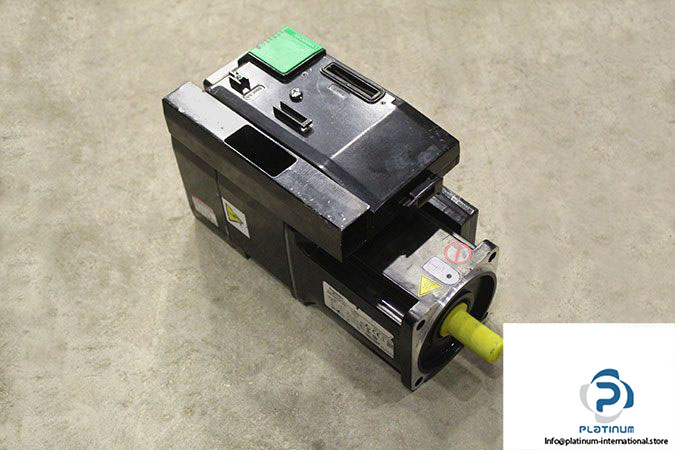

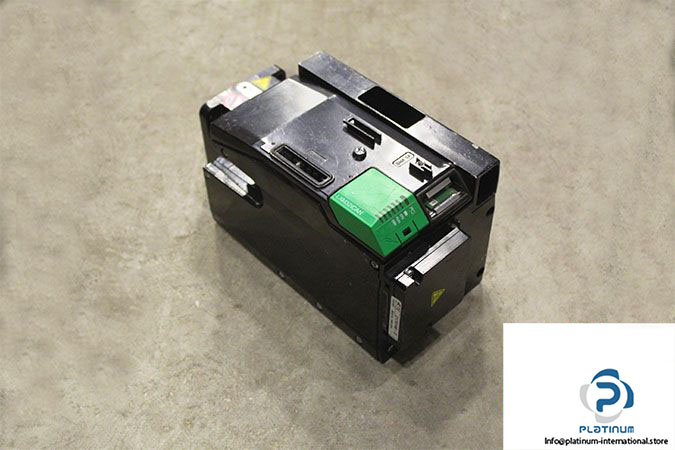

Schneider BMI1002P16A Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motors

Model: BMI1002P16A

Rated Voltage [V]: 208/400/480

Rated Current [A]: 4.3/4.3/4.6

Stall Torque [Nm]: 4.99/4.48/4.16

Rated Power [W]: 980/1730/1970

Rated Speed [rpm]: 1900/3800/4700

Max Speed [rpm]: 6000

Ambient Temperature [°C]: 40

Frequency [Hz]: 50/60

Flange Size [mm]: 100

Shaft Diameter [mm]: 19

Shaft Length [mm]: 40

Key Width [mm]: 6

Protection Class [IP]: 54

Duty: S1 Cont.

Insulation Class: F

Weight [kg]: 8.645
