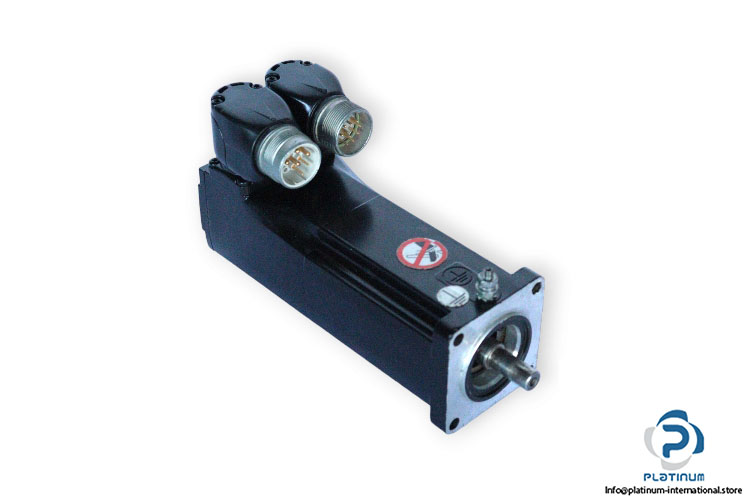

Schneider BSH0551T01F2A AC Servo Motor

Manufacturer: Schneider Electric, Elau
Type: AC Servo Motor
Model: BSH0551T01F2A

Still Torque [Nm]: 0.5
Still Current [A]: 1.4
Max Current [A]: 5.4
Rated Voltage [V]: 480
Rated Power [kW]: 0.4
Rated Speed [rpm]: 8000
Max Speed [rpm]: 9000
Number of Poles: 6
Brake Voltage [VDC]: 24
Brake Power [W]: 10
Brake Torque [Nm]: 0.8
Flange Size [mm]: 55
Shaft Diameter [mm]: 9
Shaft Length [mm]: 20
Protection Class [IP]: 65
Thermal Class: F
