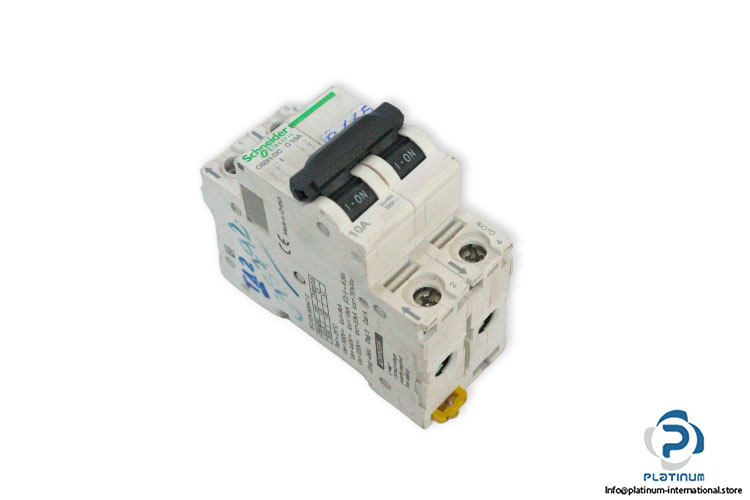

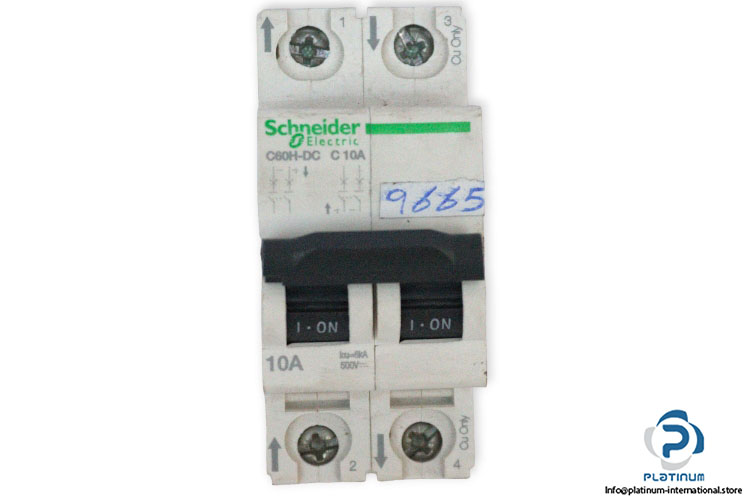

Schneider C60H-DC C10A Miniature Circuit Breaker
Used
Manufacturer: Schneider
Type: miniature circuit breaker
Model: C60H-DC/ C60HDC
Operating Voltage: 500 V DC
Current: 10 A
Curve Code: C

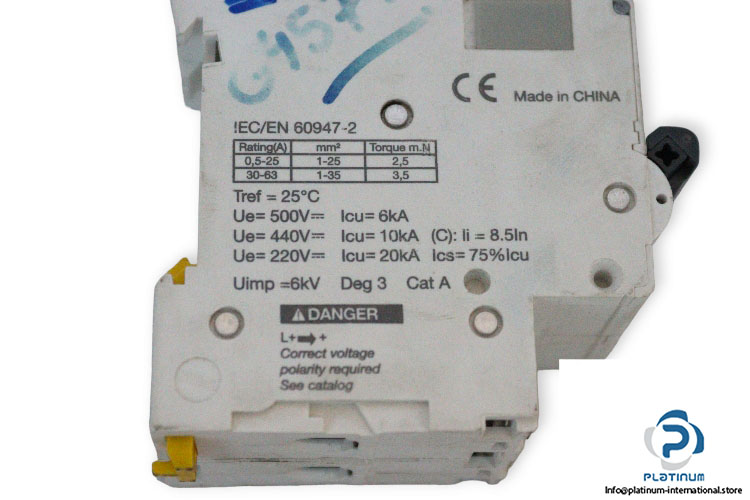

Breaking Capacity: 6 … 20 kA (500 … 220 V DC)
Impulse Withstand Voltage: 6 kV
Mounting Mode: Fixed
Number Of Protected Poles: 2
Reference Temperature: 25 °C
Rated Current: 0.5 … 25 A (2.5 m.N), 30 … 63 A (3.5 m.N)
Operating Temperature: -25 … 70 °C
