CONTROL RELAY

The Schneider CAD50M7 TeSys control relay offers 5 NO contacts, 220 V AC control voltage, and robust current capacity, ensuring reliable operation in industrial automation systems.

Manufacturer
SCHNEIDER
SKU
1074686
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

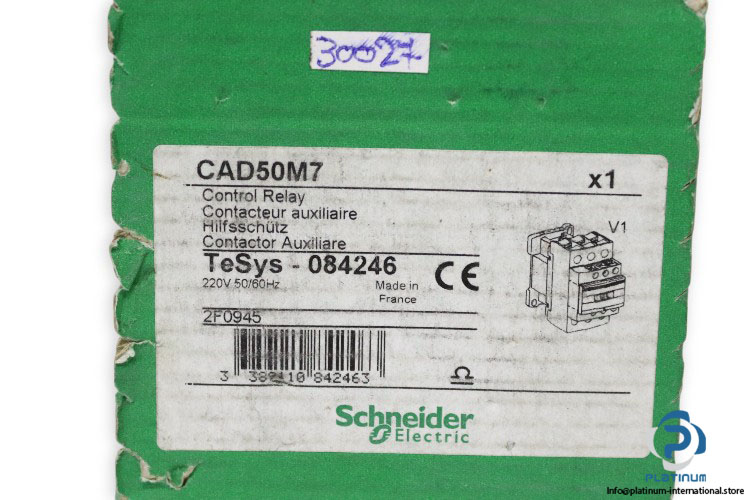

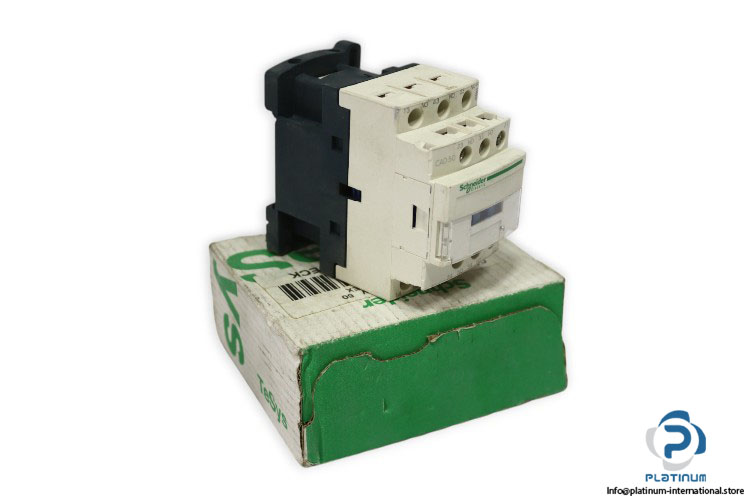

SCHNEIDER CAD50M7 CONTROL RELAY

The Schneider CAD50M7 is a TeSys control relay engineered for reliable operation in industrial control systems. With 5 NO pole contact composition, high operational voltage, and robust thermal current capacity, it ensures safe and efficient performance in demanding environments.

Manufacturer: Schneider

Type: Control Relay

Model: CAD50M7

Part No.: 084246

Ref No.: 2F0945

Range: TeSys

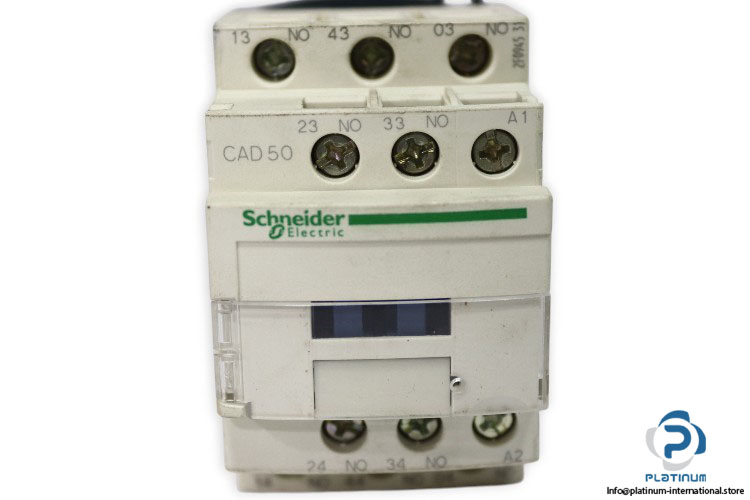

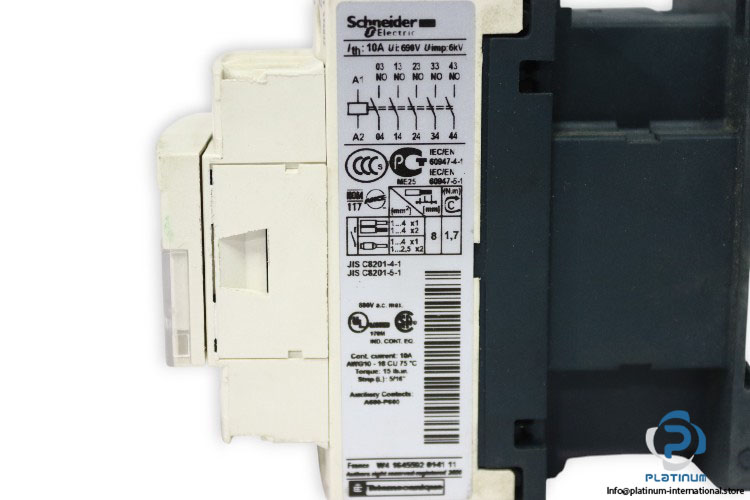

Pole Contact Composition5 NO
[Ue] Rated Operational Voltage‰¤ 690 V AC 25...400 Hz
Control Circuit TypeAC at 50/60 Hz
[Uc] Control Circuit Voltage220 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage6 kV (IEC 60947)
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
Irms Rated Making Capacity140 A AC (IEC 60947-5-1), 250 A DC (IEC 60947-5-1)
[Icw] Rated Short-Time Withstand Current100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
Associated Fuse Rating10 A gG (IEC 60947-5-1)
[Ui] Rated Insulation Voltage600 V UL certified, 600 V CSA certified, 690 V (IEC 60947-5-1)
Mounting SupportPlate / Rail
Dimensions (H x W x D)77 x 45 x 84 mm
