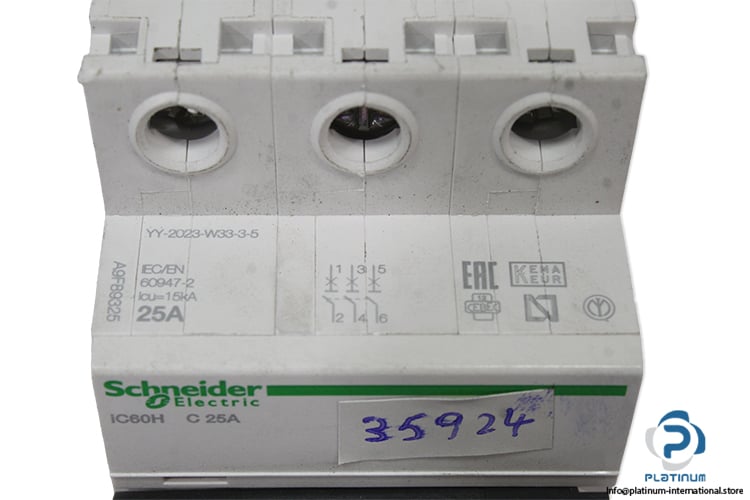

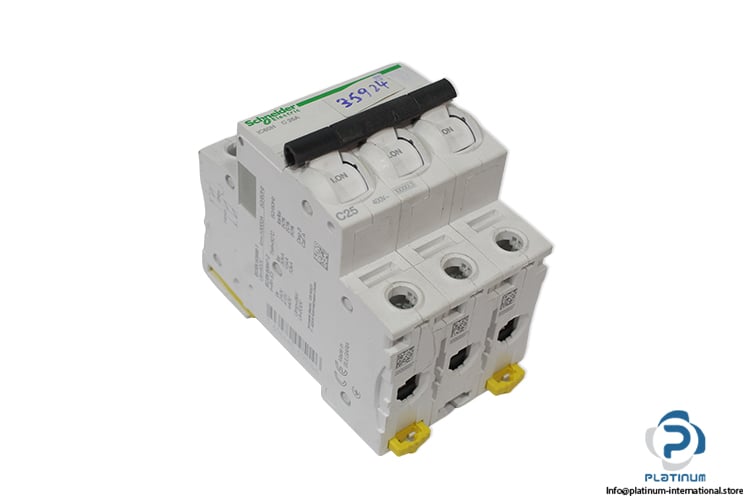

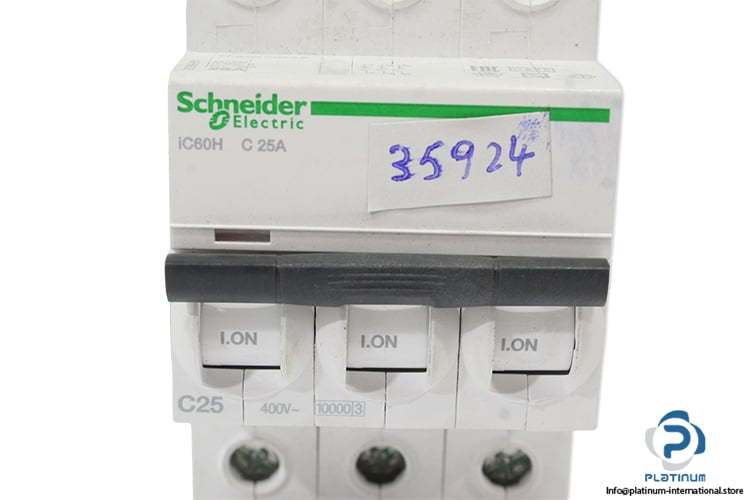

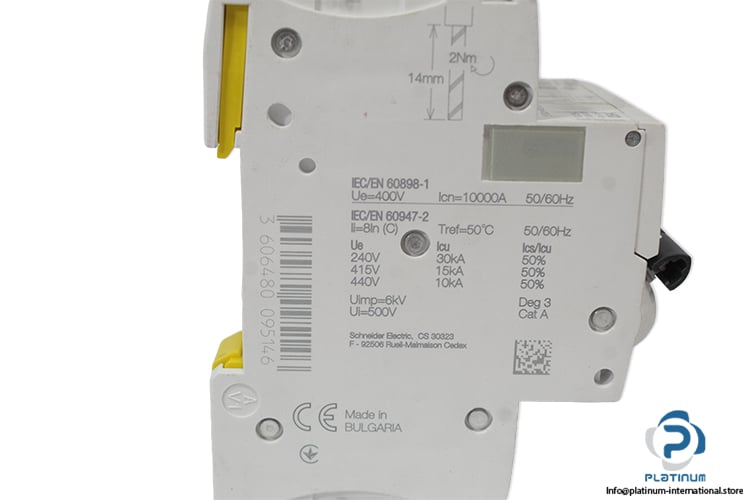

Schneider Electric A9F54325 IC60H C25A Miniature Circuit Breaker MCB
New
In stock1 unitReady to ship
Miniature Circuit Breaker
SCHNEIDER ELECTRIC Acti9 iC60H 3-pole MCB rated at 25 A, 400 V AC, with high breaking capacity and C curve protection for industrial electrical systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SCHNEIDER ELECTRIC A9F54325 IC60H C25A Miniature Circuit Breaker
The SCHNEIDER ELECTRIC A9F54325 iC60H Miniature Circuit Breaker from the Acti9 range is designed to provide reliable protection against overload and short-circuit conditions in low-voltage electrical installations. Engineered for industrial and commercial applications, it offers high breaking capacity, durable construction, and consistent performance under demanding conditions.
Manufacturer: SCHNEIDER ELECTRIC
Type: Miniature Circuit Breaker (MCB)
Model: A9F54325 IC60H C25A
Breaking Capacity:
| Range | Acti9 |
| Short Name | iC60H |
| Rated Supply Voltage | 400 V AC |
| Rated Operational Current (In) | 25 A |
| Frequency | 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Impulse Voltage (Uimp) | 6 kV |
| 240 V AC | 30 kA |
| 415 V AC | 15 kA |
| 440 V AC | 10 kA |
| Poles No. | 3-Pole |
| Curve Code | C |
| Protection Class | IP20 |
| Ambient Temperature | -35 / 70 °C |
| Dimensions | 85 x 54 x 78.5 mm |
