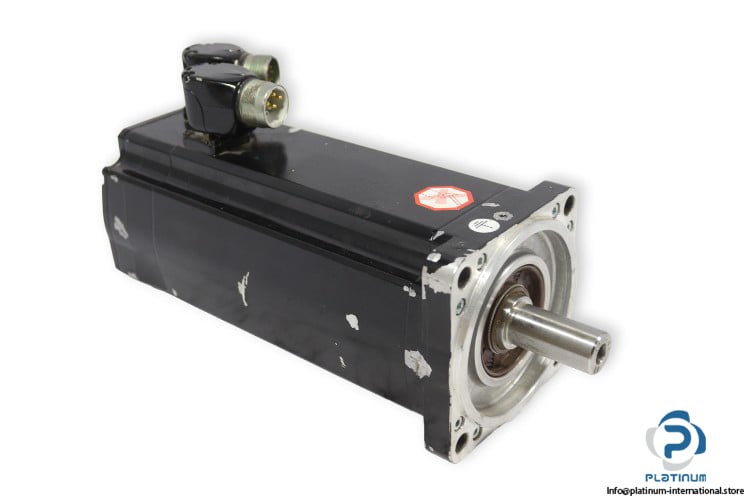

Schneider Electric BSH1003P31A2A Servo Motor

Manufacturer: Schneider Electric
Type: Servo motor

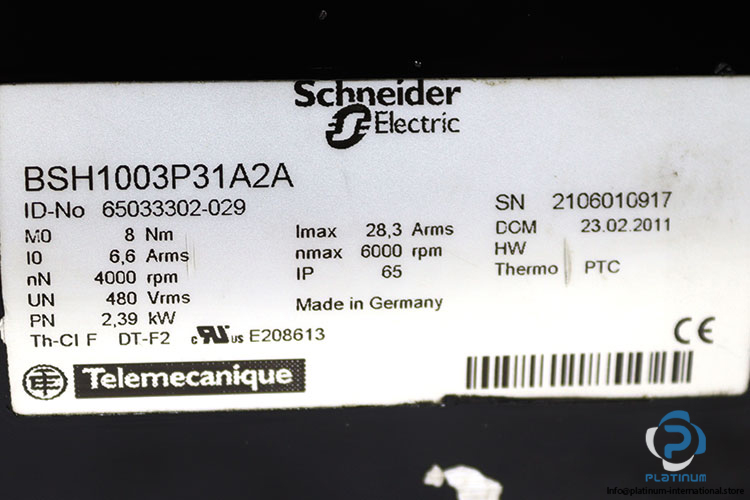

Model: BSH1003P31A2A
ID No: 65033302-029

Number of motor poles: 8
Shaft diameter: 19 mm
Shaft length: 40 mm
Key width: 30 mm
stall torque: 8 Nm
Stall current: 6.6 Arms
Rated speed: 4000 rpm
Rated power: 2.39 kW
Max. Voltage: 480 Vrms
Maximum permanent current: 28.3 Arms
Maximum mechanical speed: 6000 rpm
Rotor inertia: 3.22 kg.cm²
Feedback type: Single turn Sin Cos Hiperface
mounting support: International standard flange

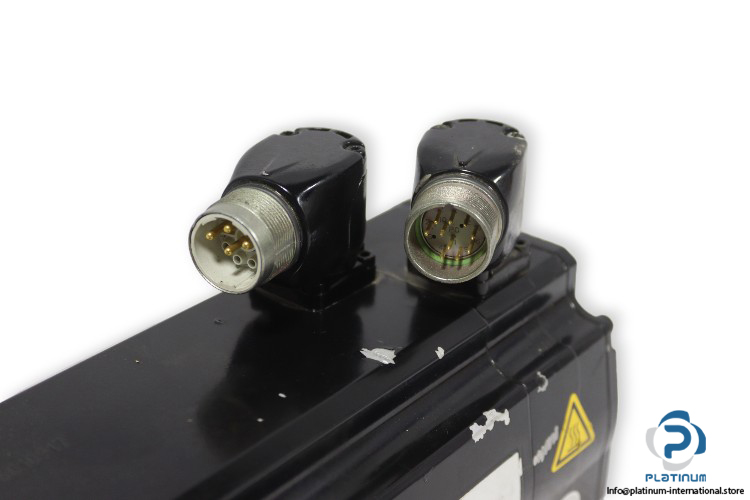

Electrical connection: Rotatable right-angled connectors
Protection class: IP65
Thermal Class: F
