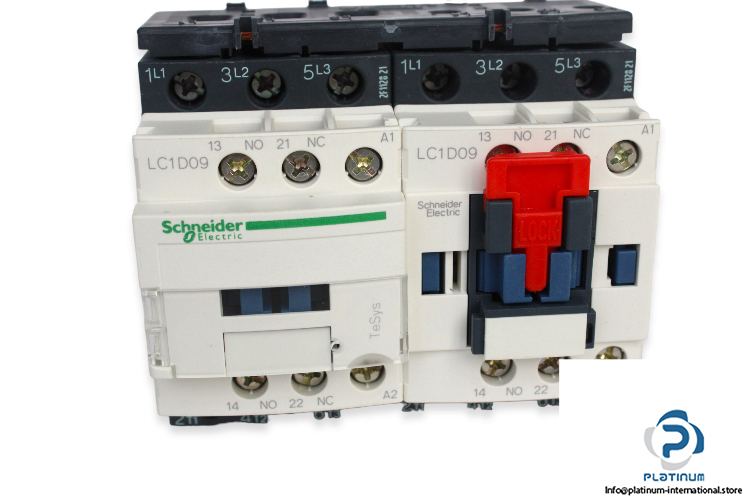

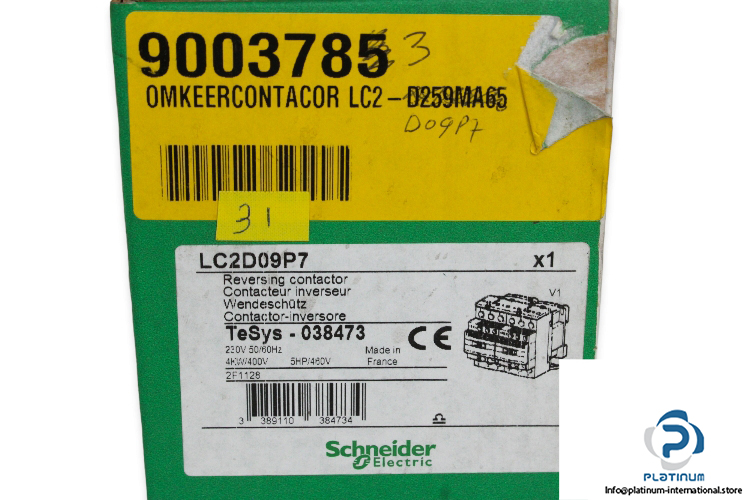

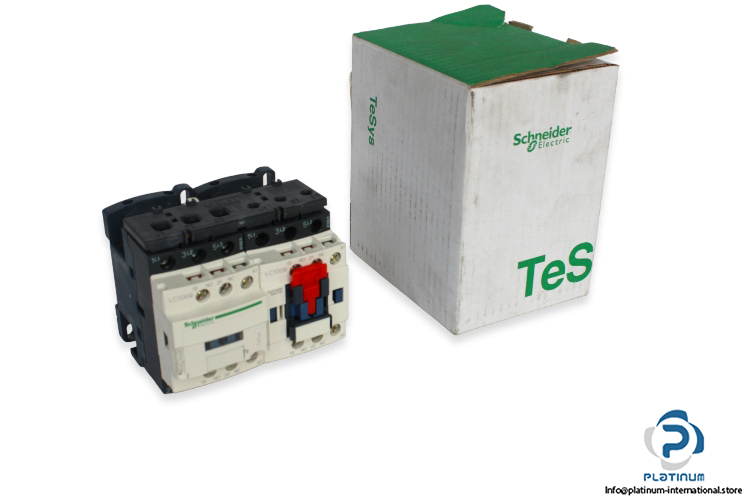

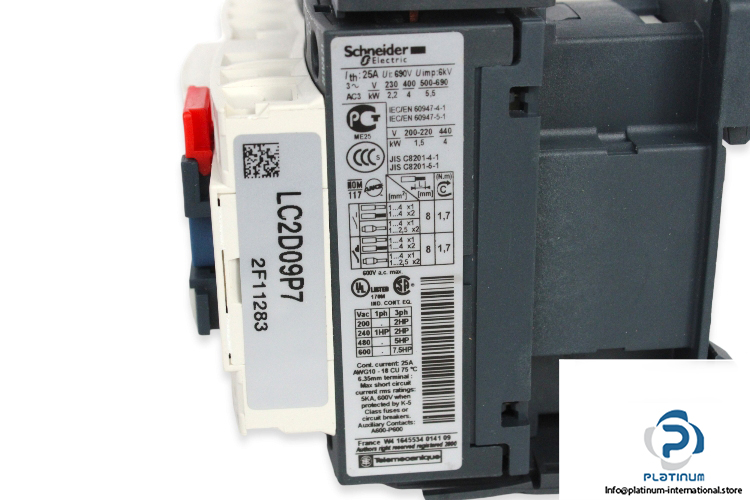

Schneider Electric LC2D09P7 Reversing Contactor

Manufacturer: Schneider Electric

Type: Reversing Contactor

Model: LC2D09P7

Part No.: 038473



Control circuit voltage: 230 V AC 50/60 Hz

Rated operational voltage: 690 V AC

conventional free air thermal current (Ith): 25 A

rated impulse withstand voltage (Uimp): 6 KV

Motor power kW: 4 KW @ 400 V

Motor power HP: 5 HP @ 480 V

Poles description: 3 Poles

Power pole contact composition: 3 Normally open contacts

Auxiliary contact composition: 1 Normally open + 1 Normally closed

Operating Temperature: -40 … +60 °C

Degree of Protection: IP20

Dimensions: 77 x 90 x 86 mm
