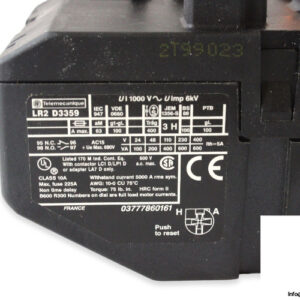

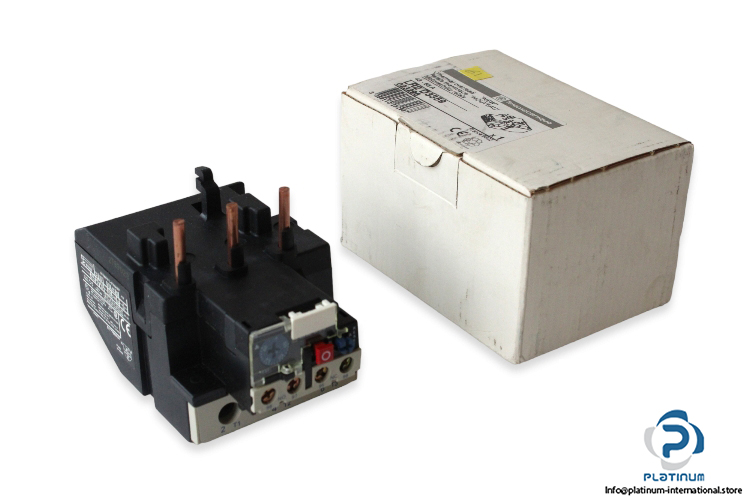

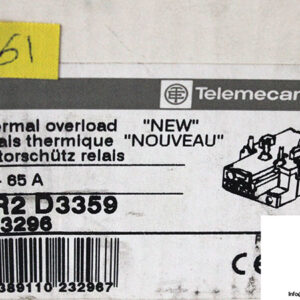

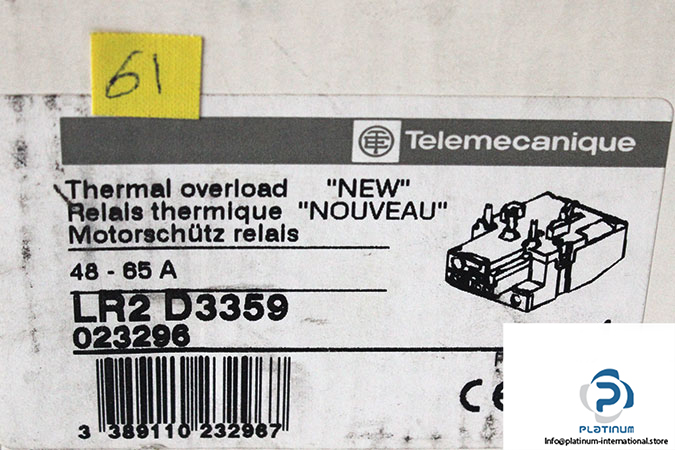

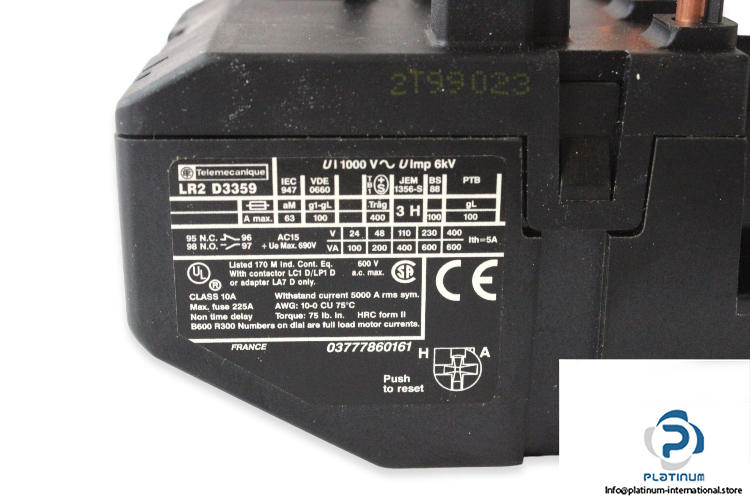

Schneider Electric LR2 D3359 Thermal Overload Relay

Manufacturer: Schneider Electric

Type: Thermal overload relay

Model: LR2 D3359

Part No.: 023296

Rated operational voltage: 690 V AC

Thermal protection adjustment range: 48 … 65 A

Auxiliary contact composition: 1 Normally open, 1 Normally closed

Connection – terminals: screw clamp terminals

Tightening torque: Control circuit: 1.7 N.m on screw clamp terminals

Surge withstand: 6 kV

Relay application: Motor protection

Operating Temperature: 20 … 60 °C

Degree of Protection: IP2x conforming to VDE 0106

Dimensions: 121 x 75 x 100 mm
