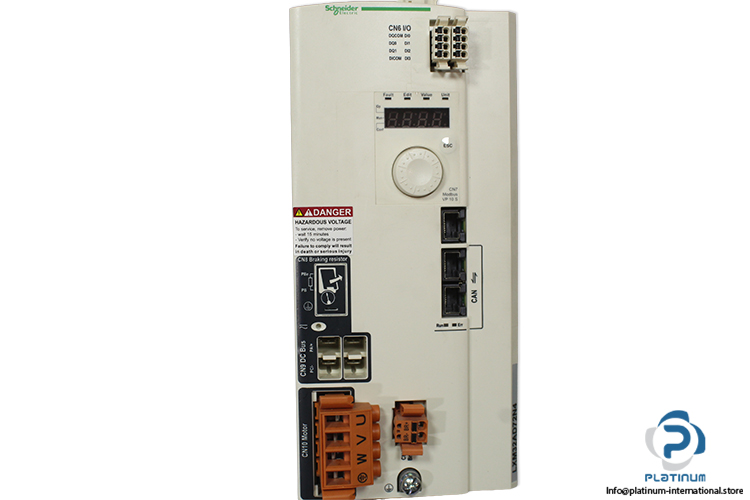

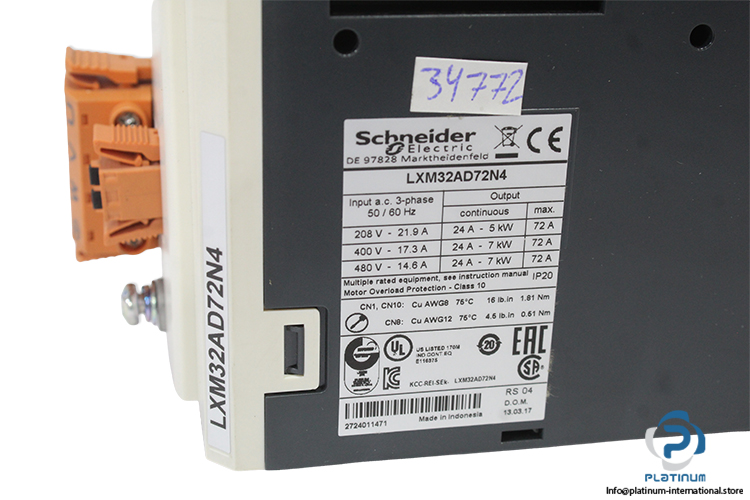

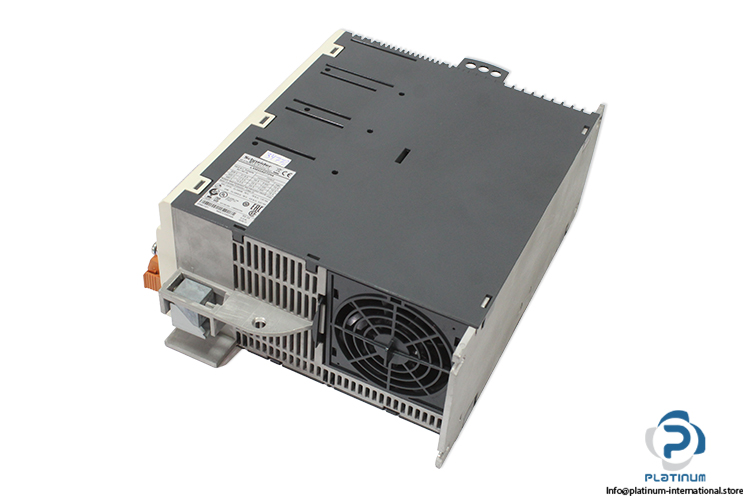

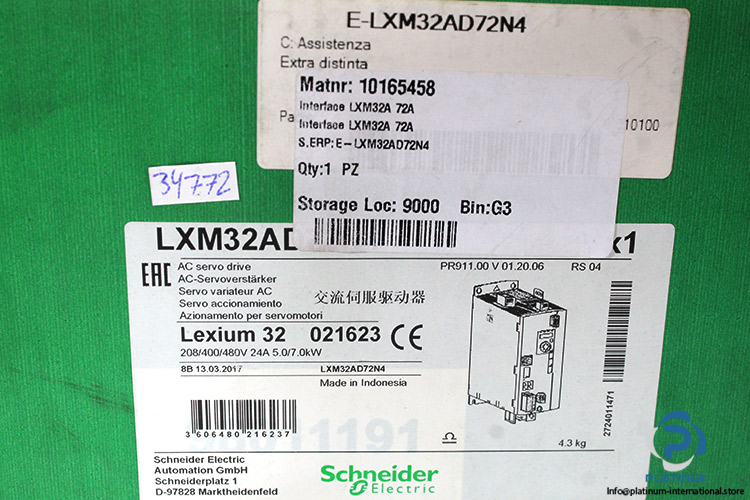

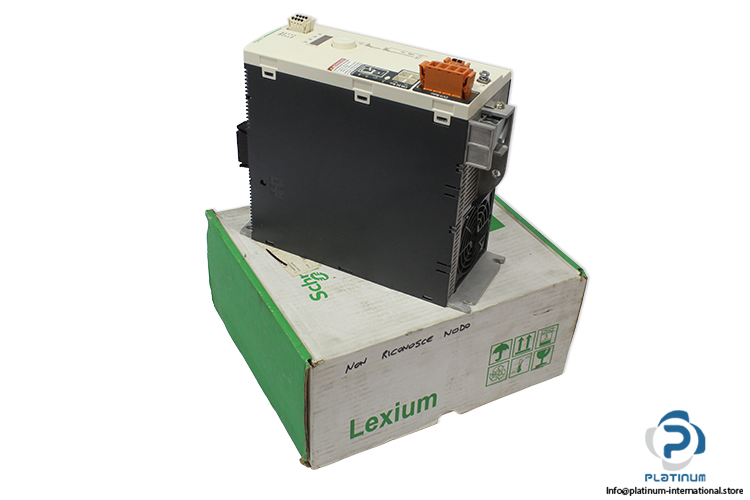

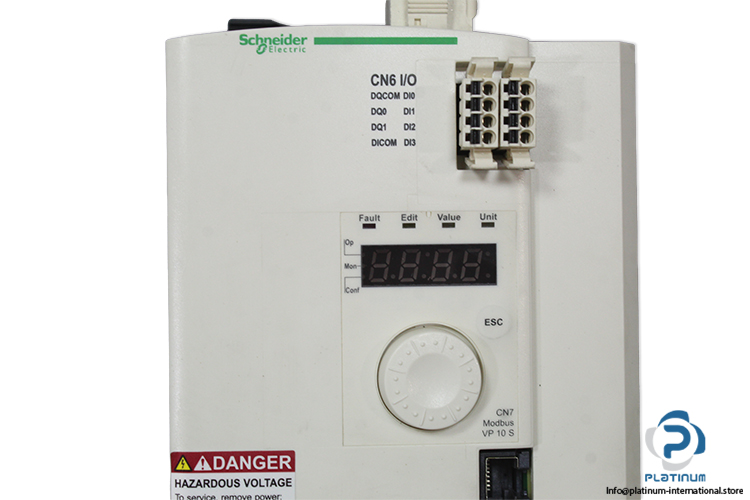

Schneider Electric LXM32AD72N4 Motion Servo Drive

In stock1 unitReady to ship

1 333,33$

AC Motion Servo Drive

SCHNEIDER ELECTRIC Lexium 32 AC servo drive with integrated CANopen/CANmotion communication, high power output, and advanced safety features for industrial motion control applications.

Manufacturer
SCHNEIDER
SKU
1091753
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.021623
Recommended Accessories & Compatible Equipment To build a complete and reliable motion control system, this servo drive can be combined withServo Motors for precise motion and torque control, Servo Gearboxes to optimize speed, torque, and positioning accuracy, Couplings for secure mechanical connection between motor and load, Cables & Connectors including encoder cables, power cables, and communication cables, Cable Connectors for CANopen and CANmotion communication interfaces
RangeLexium 32
Short NameLXM 32A
Rated Supply Voltage3-Phase 200…240 / 380…480 V AC
Supply Voltage Limits170…264 V / 323…528 V
Supply Frequency50 / 60 Hz
Network Frequency47.5…63 Hz
EMC FilterIntegrated
Continuous Output Current24 A (8 kHz)
Output Current 3s Peak72 A
Continuous Power6500 W (208 V), 13000 W (400 V), 13000 W (480 V)
Nominal Power5 kW (208 V, 8 kHz), 7 kW (400 V, 8 kHz), 7 kW (480 V, 8 kHz)
Discrete Input Number1 capture, 2 safety, 4 logic
Discrete Input TypeCapture CAP, Logic DI, Safety (STO_A, STO_B)
Discrete Input Voltage24 V DC (capture, logic, safety)
Discrete Input LogicEN/IEC 61131-2 type 1
Discrete Output Number2
Discrete Output TypeLogic DO
Discrete Output Voltage30 V DC
Discrete Output LogicPositive or negative
Control Signal TypeServo motor encoder feedback
Communication InterfaceCANmotion, CANopen (Integrated)
Connector TypeRJ45
Transmission Rate50 kbps to 1 Mbps (distance dependent)
Number of Addresses1…127
Protection ClassIP20
Ambient Temperature0…50 °C
Dimensions270 × 108 × 237 mm
NoteAll of the above accessories and equipment are available at Platinum International Company for Industrial Technologies.
ConditionNew
Stock KeyJO-004
