Schneider Electric SH32051P01A2000 Servo Motor SH3 205
Used
In stock3 unitsReady to ship
2 555,55$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

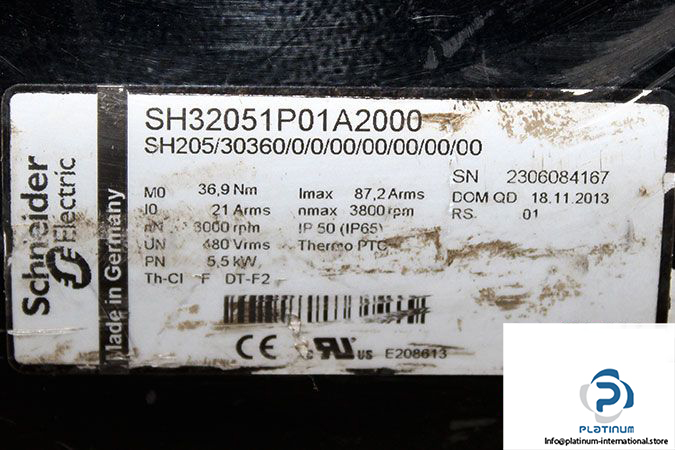

Manufacturer: ELAU – SCHNEIDER ELECTRIC
Type: SERVO MOTOR SH3 205
Model: SH32051P01A2000
Alternative Model: SH205/30360/0/0/00/00/00/00/00
Rated Voltage : 480 Vrms
Max. Current: 87.2 Arms
Stall Current: 21 Arms
Normal Speed: 3000 Revolution Per Minute (rpm)
Max. Speed: 3800 Revolution Per Minute (rpm)
Nominal Torque: 36.9 Nm
Holding Brake: Without
Nominal Power: 5.5 kW
Flange Size: 205 mm
Motor Length: 310 mm
Shaft Diameter: 38 mm
Shaft Length: 80 mm
Thermal Class: F
Protection Class: IP50 (IP65)
Weight: 34.70 kg
