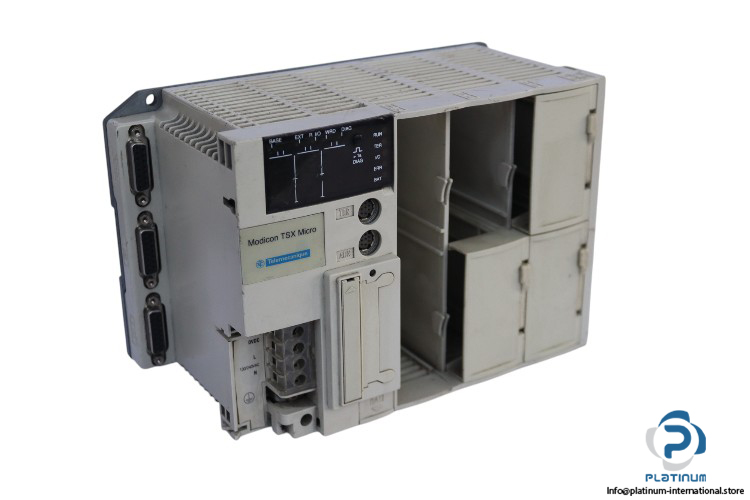

Schneider Electric TSX3722001 Modular Base Controller
“ A flexible and robust controller designed for the Modicon TSX Micro automation platform, supporting 100“240 V AC operation, multiple I/O, and IEC 61131-2 standards.
Schneider Electric Modular Base Controller TSX3722001
Manufacturer: Schneider Electric
Type: Modular Base Controller

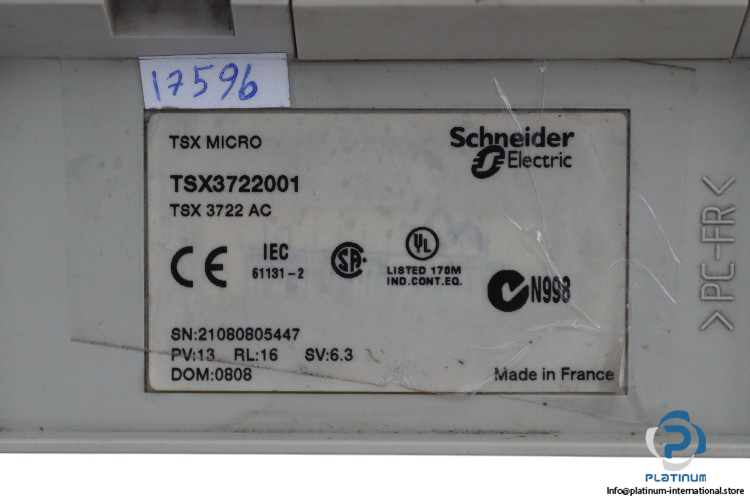

Model: TSX3722001
Part No.: TSX 3722 AC
Range: Modicon TSX Micro automation platform
The Schneider Electric TSX3722001 Modular Base Controller is designed for reliable and efficient industrial control within the Modicon TSX Micro automation platform. Engineered with flexibility and performance in mind, this controller supports multiple I/O options and offers robust protection features. Its compact size and high compatibility make it suitable for a variety of automation applications.
Technical Specifications:
- Primary Voltage: 100 to 240 V, 90 to 264 V AC
- Input Current: 2 mA to 60 A
- Immunity to Microbreaks: 20 ms
- Number of Output Current: 0.5 A
- Number of Slots: 3
- Analogue Input Type: 0…10 V (8 inputs)
- Analogue Output Type: 0…10 V (1 output)
- Protection Type: Overload protection, Short-circuit
- Network Frequency: 50…60 Hz
- Total Useful Secondary Power: 24 W
- Standard: IEC 61131-2
- Operation Temperature: 0 to 60 °C
- Dimensions (W x H x D): 341.4 x 151 x 152 mm
This modular controller is ideal for managing complex industrial processes thanks to its versatility and adherence to stringent international standards. Its ability to handle various input/output configurations ensures optimal performance across multiple application scenarios.
