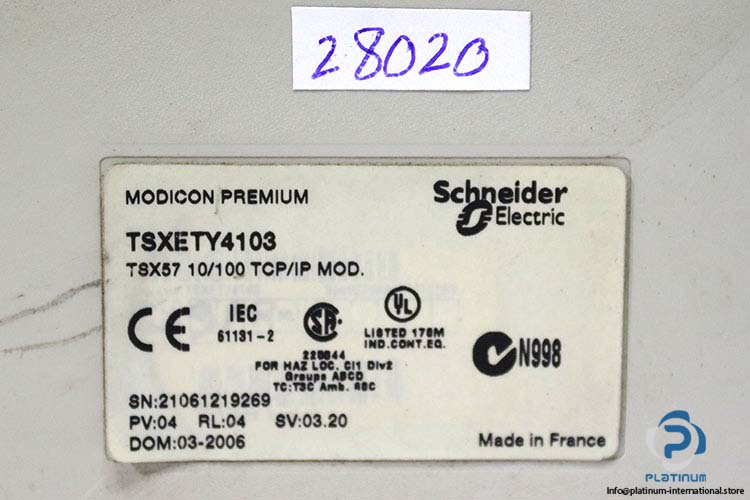

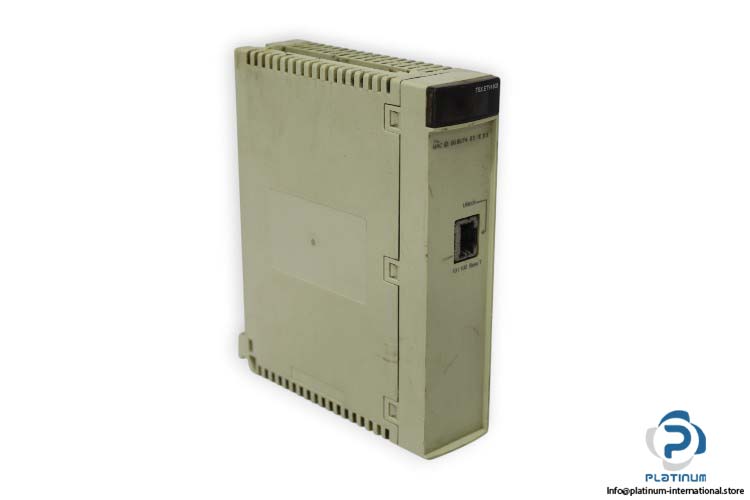

Schneider Electric TSXETY4103 Ethernet Tcp/Ip Module

Manufacturer: Schneider Electric

Type: ETHERNET TCP/IP MODULE

Model: TSXETY4103 / TSX57 10/100 TCP/IP MOD

Range of Product: Modicon Premium Automation Platform

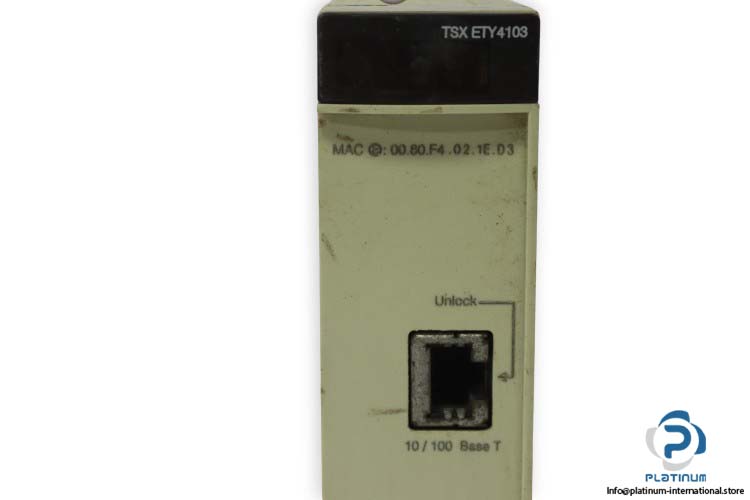

Physical Interface: RJ45 10BASE-T/100BASE-TX 1 Twisted Pair

Transmission Rate: 10/100 Mbit/s

Communication Port Protocol: Uni-Telway, Modbus TCP

Maximum Number of Connections: 64

Web Server: Transparent Ready Class B30

Web Services: Rack Viewer, Data Editor (via PC Terminal)

Current Consumption: 360 mA 5 V DC

Degree of Protection IP: IP20

Ambient Air Temperature for Operation: 0…60 °C

The Schneider Electric TSXETY4103 is a high-performance Ethernet TCP/IP module designed for seamless integration within Modicon Premium automation platforms. Supporting both Uni-Telway and Modbus TCP protocols, it ensures reliable communication over industrial networks. The module features an RJ45 interface with 10/100 Mbit/s transfer rates, accommodating up to 64 simultaneous connections. With Transparent Ready Class B30 web server support and built-in Rack Viewer and Data Editor services, it enables remote monitoring and configuration with ease. Ideal for demanding industrial automation environments requiring efficient, secure, and scalable network communication.
