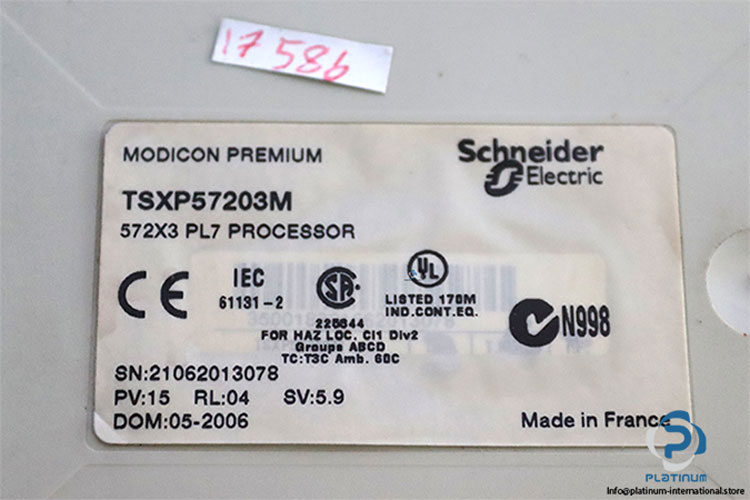

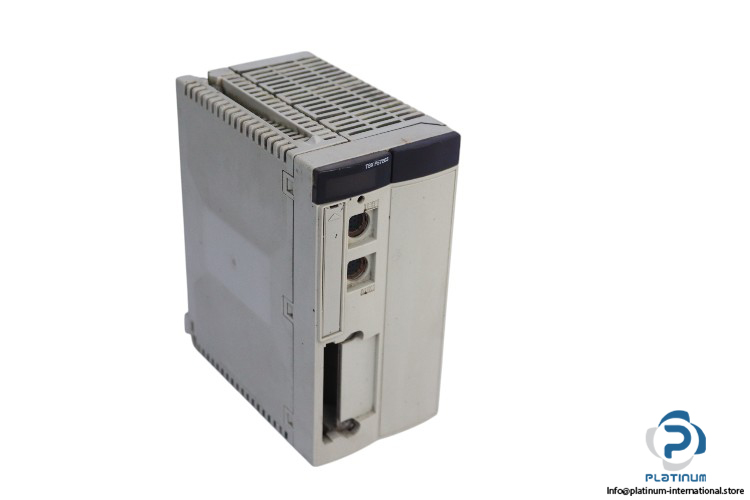

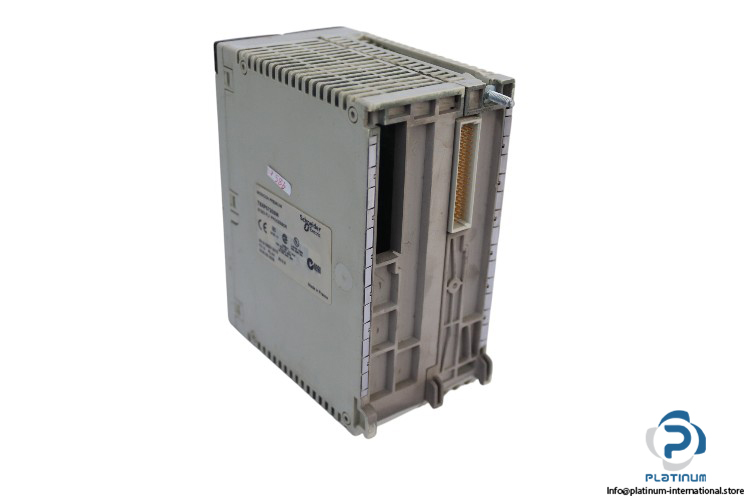

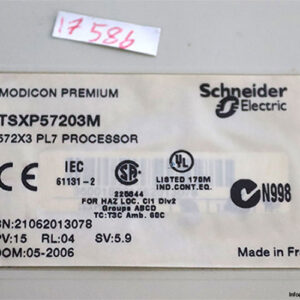

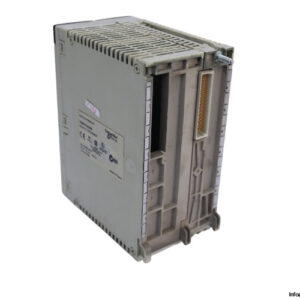

Schneider Electric TSXP57203M Processor

Schneider Electric Double-Format PL7 Processor TSXP57203M

The Schneider Electric TSXP57203M is a high-performance double-format PL7 processor, part of the Modicon Premium Automation Platform. Designed for robust industrial automation, it supports a variety of I/O capacities, integrated communication options, and reliable operation under harsh conditions.

🔧 Technical Specifications:

• Manufacturer: Schneider Electric
• Type: Double-Format PL7 Processor
• Model: TSXP57203M
• Range: Modicon Premium Automation Platform
• Software Designation: PL7 Junior/Pro
• Discrete I/O Processor Capacity: 1024 I/O
• Analogue I/O Processor Capacity: 80 I/O
• Application-Specific Channels: 24
• Process Control Channels: 10 (up to 30 simple loops)
• Integrated Connection Type: Non-isolated serial link, 2 female mini-DIN connectors
• Communication Module Processor Capacity:
  • 1 fieldbus module (none if CANopen used)
  • 1 network module
  • 4 AS-Interface bus modules
  • 1 CANopen
• Current Consumption: 750 mA at 5 V DC
• Operating Temperature: 0 to 60 °C
• Degree of Protection: IP20
