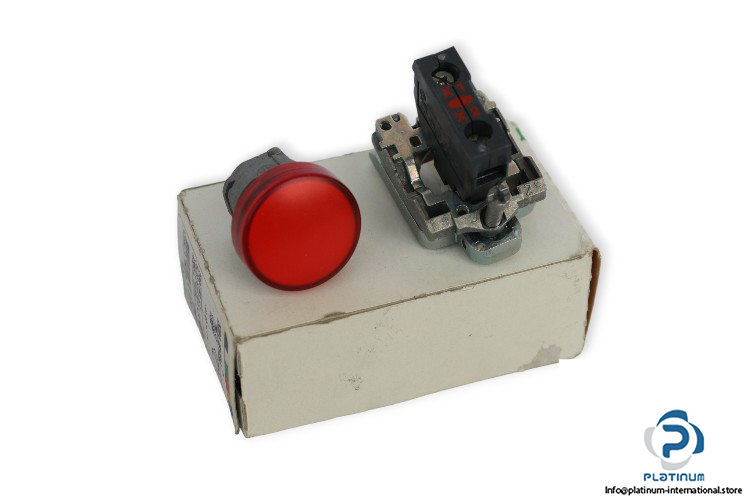

Schneider Electric XB4 BVB4 Pilot Light

Manufacture: Schneider electric
Type: Pilot light
Model: XB4BVB4

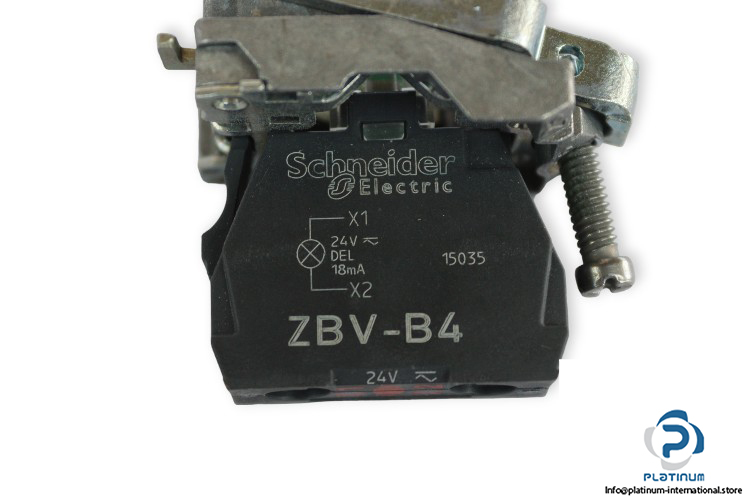

Part No.: ZBV-B4
Order No.: 089193
Range of Product: Harmony XB4
Device Short Name: XB4

Rated Supply Voltage: 24 V AC/DC, 50/60 Hz
Current Consumption: 18 mA
Head Type: Standard
Bezel Material: Chromium plated metal
Fixing Collar Material: Zamak
Mounting Diameter: 22.5 mm
Light Source: Universal LED
Bulb Base: Integral LED
Light Source Color: Red
Degree of Protection: IP66 conforming to IEC 60529, IP67, IP69, IP69K
Ambient Air Temperature for Operation: -40 … 70°C
Dimensions: 47 x 30 x 54 mm
