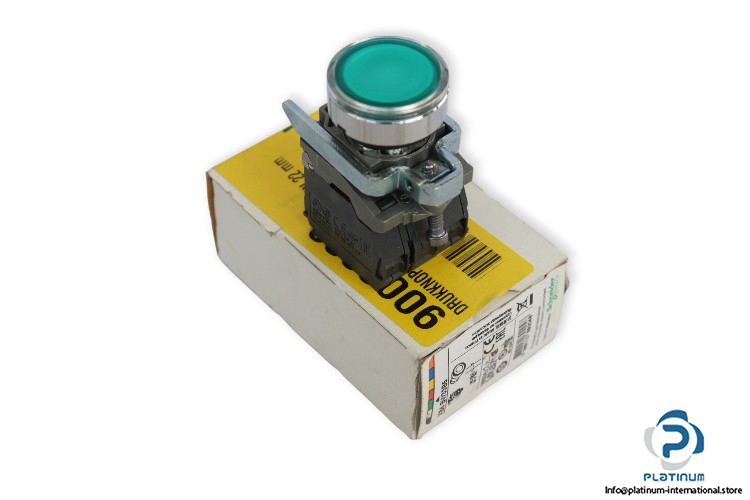

Schneider Electric XB4 BW33B5 Illuminated Push Button

Manufacture: Schneider electric
Type: Illuminated push button
Model: XB4BW33B5

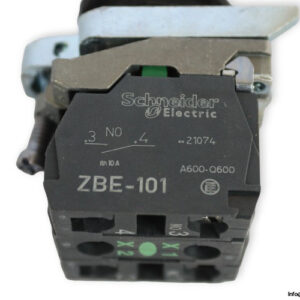

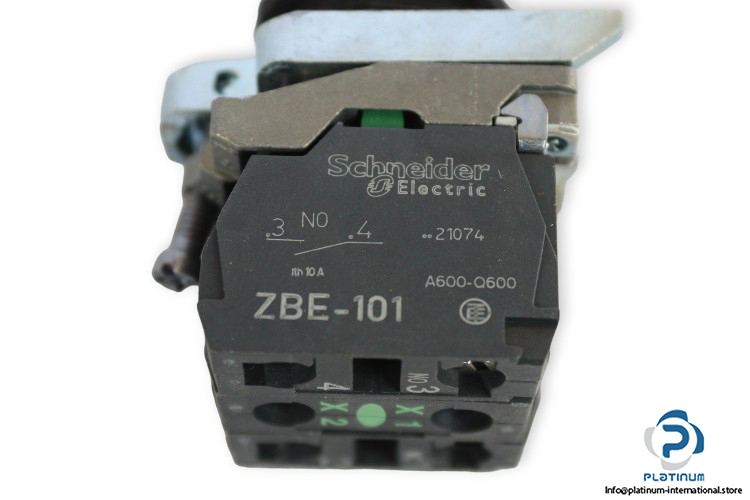

Part No.: ZBE-101

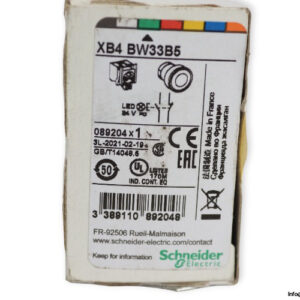

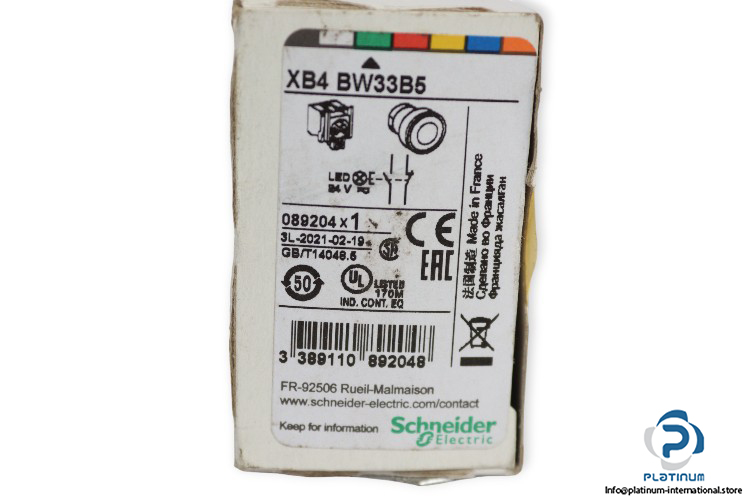

Order No.: 089204
Range of Product: Harmony XB4
Device Short Name: XB4

Rated Supply Voltage: 24 V AC/DC, 50/60 Hz
Current Consumption: 18 mA
Conventional Free Air Thermal Current: 10 A
Rated Insulation Voltage Ui: 600 V
Rated Impulse Withstand Voltage Uimp: 6 kV
Rated Operational Current Ie:
3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Head Type: Standard
Bezel Material: Chromium plated metal
Fixing Collar Material: Zamak
Mounting Diameter: 22 mm
Light Source: Universal LED
Bulb Base: Integral LED
Contacts Type And Composition: 1 NO + 1 NC
Contacts Material: Silver alloy (Ag/Ni)
Degree of Protection: IP66 conforming to IEC 60529, IP67, IP69, IP69K
Ambient Air Temperature for Operation: -40 … 70°C
Dimensions: 47 x 30 x 57 mm
