Schneider GV2P32 Motor Circuit Breaker
Motor Circuit Breaker

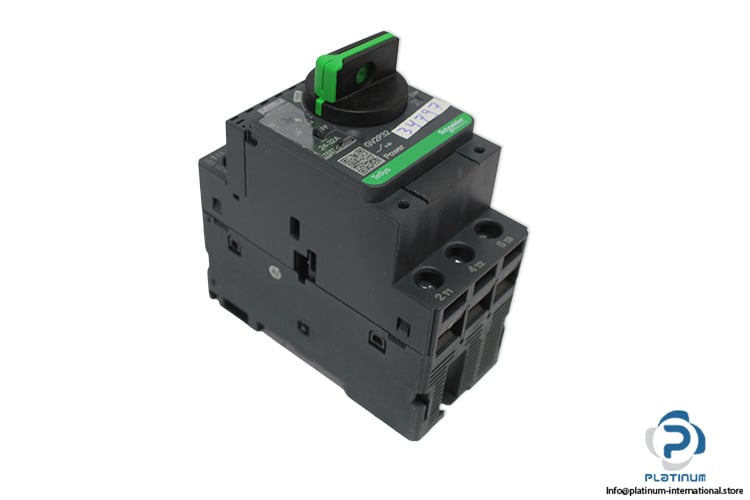

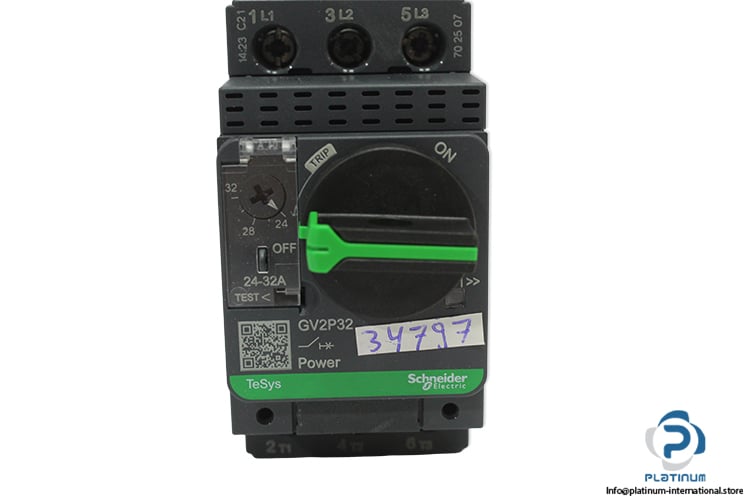

SCHNEIDER TELEMECANIQUE GV2P32 motor circuit breaker, 32 A, 3P, thermal-magnetic trip, 690 V AC rated voltage, high breaking capacity up to 100 kA for industrial motor protection.SCHNEIDER TELEMECANIQUE GV2P32 Motor Circuit Breaker
The SCHNEIDER TELEMECANIQUE GV2P32 is a TeSys Deca motor circuit breaker designed for reliable motor protection in industrial applications. It features thermal-magnetic trip technology and provides high breaking capacity with adjustable thermal protection for precise motor control and safety.
Manufacturer: SCHNEIDER TELEMECANIQUE
Type: Motor Circuit Breaker
Model: GV2P32
Code: 037610
Range: TeSys Deca
Product Name: TeSys GV2
Device Short Name: GV2P
Device Application: Motor Protection
Trip Unit Technology: Thermal-Magnetic
Poles Description: 3P
Network Type: AC
Control Type: Rotary Handle
Utilisation Category:
Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
AC-3e conforming to IEC 60947-4-1
Breaking Capacity (Icu):
100 kA at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Dimensions:
Standards:
EN/IEC 60947-2
EN/IEC 60947-4-1
UL 60947-4-1
| Network Frequency | 50/60 Hz conforming to IEC 60947-2 |
| Motor Power | 15 kW at 400/415 V AC 50/60 Hz |
| Rated Current (In) | 32 A |
| Thermal Protection Adjustment Range | 24 / 32 A conforming to IEC 60947-2 |
| Magnetic Tripping Current | 537.6 A |
| Conventional Free Air Thermal Current (Ith) | 32 A conforming to IEC 60947-2 |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated Insulation Voltage (Ui) | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV conforming to IEC 60947-2 |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 97 mm |
| IP Degree Of Protection | IP20 |
| Ambient Air Temperature For Operation | -20 / 60 °C |
| CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40 | Annex JJ |
| IEC/EN 60335-1 | Clause 30.2 |
