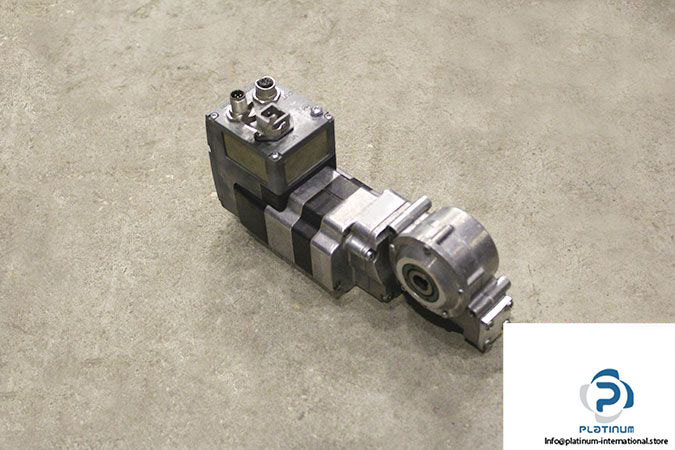

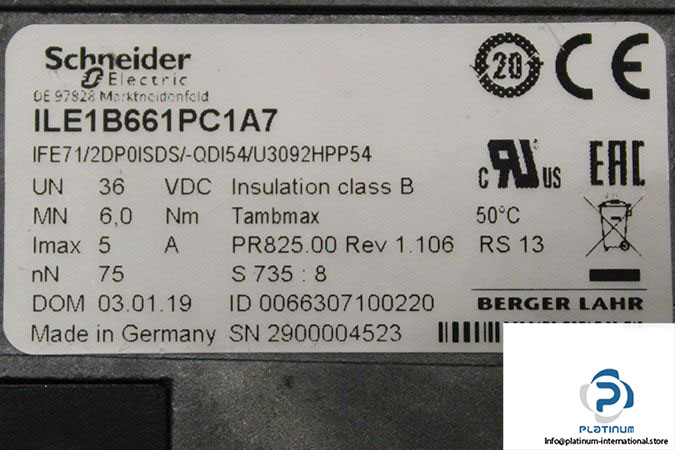

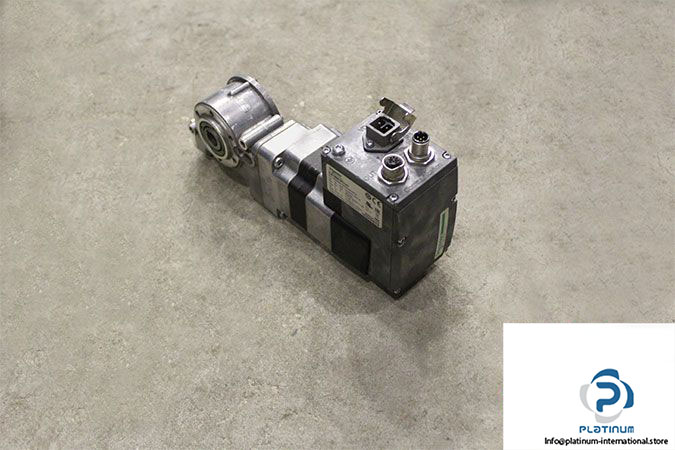

Schneider ILE1B661PC1A7 Brushless DC Motor

Manufacturer: Schneider Electric, Berger Lahr

Type: Brushless DC Motors

Model: ILE1B661PC1A7

Part No.: IFE71/2DP0ISDS/-QDI54/U3092HPP54

Reduction Ratio: 92

Peak Stall Torque [Nm]: 16.56

Continuous Stall Torque [Nm]: 11.7

Nominal Torque [Nm]: 6

Max Current [A]: 5

Supply Voltage [VDC]: 36

Nominal Speed [rpm]: 75

Number of Poles: 6

Flange Size [mm]: 66

Hole Diameter [mm]: 4.4

Length [mm]: 229

Ambient Temperature [°C]: 50

Thermal Class: B

Weight [kg]: 2.19
