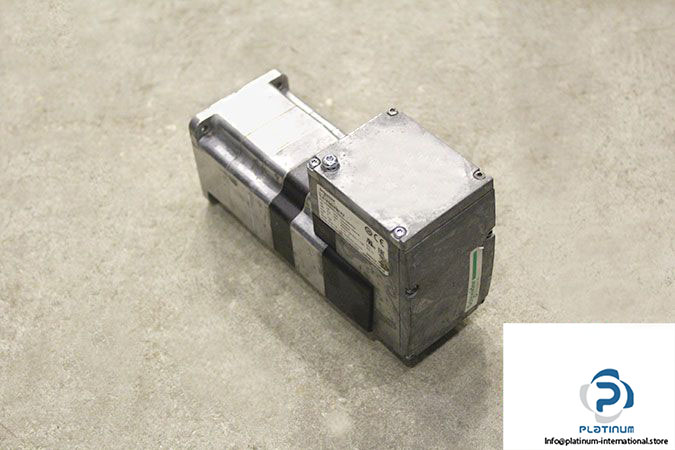

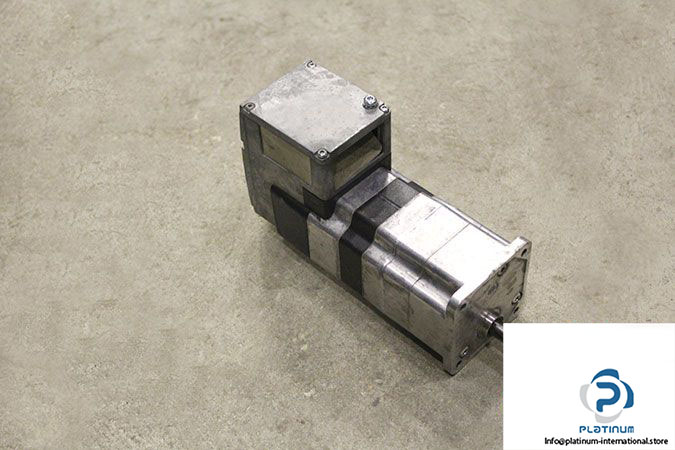

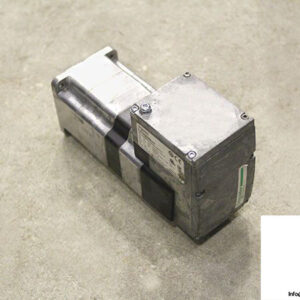

Schneider ILE1F661PB1A2 Brushless DC Motor

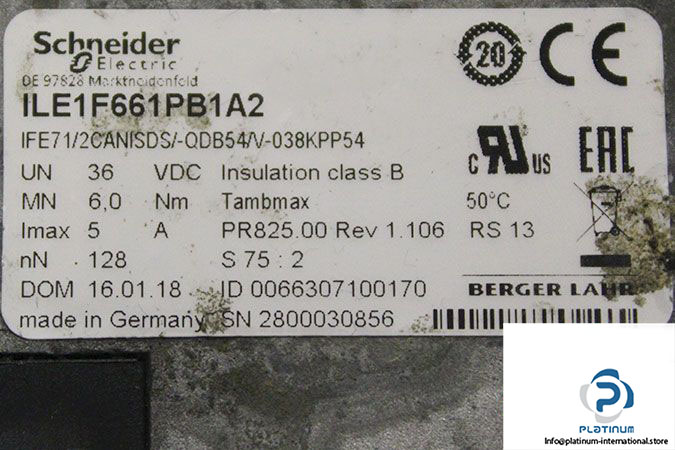

Manufacturer: Schneider Electric, Berger Lahr

Type: Brushless DC Motors

Model: ILE1F661PB1A2

Part No.: IFE71/2CANISDS/-QDB54/V-038KPP54

Reduction Ratio: 38

Peak Stall Torque [Nm]: 10.94

Continuous Stall Torque [Nm]: 8.2

Nominal Torque [Nm]: 6

Max Current [A]: 5

Supply Voltage [VDC]: 36

Nominal Speed [rpm]: 128

Number of Poles: 6

Flange Size [mm]: 66

Shaft Diameter [mm]: 10

Shaft Length [mm]: 25

Key Width [mm]: 16

Length [mm]: 174

Ambient Temperature [°C]: 50

Thermal Class: B

Weight [kg]: 1.81
