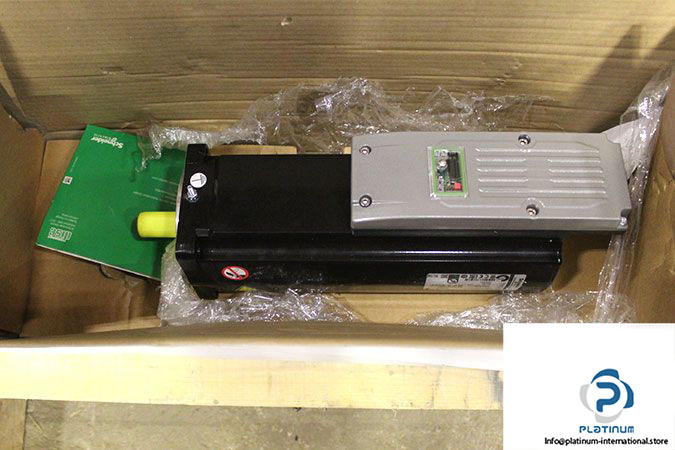

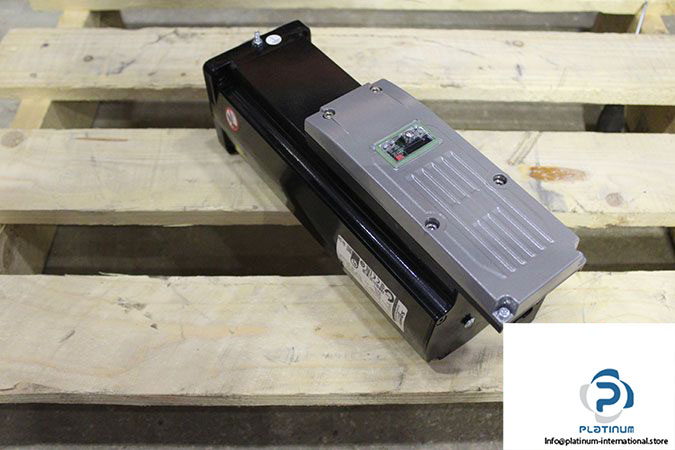

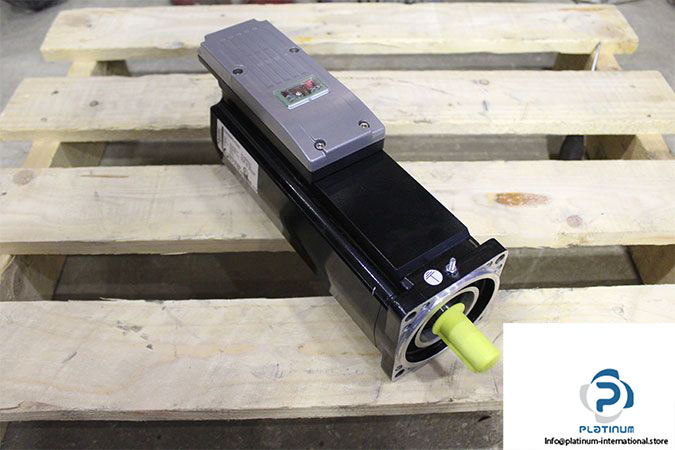

Schneider ILM1003P01F0000 Integrated Servo Motor
New
Available on request
1 500,00$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schneider Electric, Elau
Type: Integrated Servo Motor

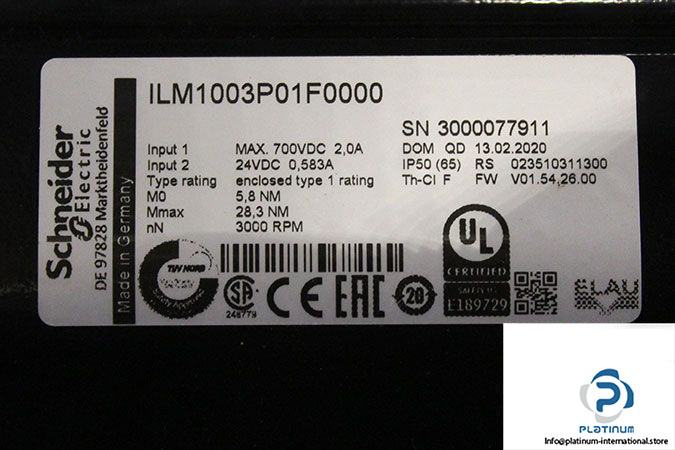

Model: ILM1003P01F0000
Continuous Stall Torque [Nm]: 5.8
Peak Stall Torque [Nm]: 28.3
Nominal Torque [Nm]: 3.5
Max Current [A]: 21.2
Rated Current [A]: 2.4
Max Supply Voltage [VDC]: 700 at 2.0 A
Supply Voltage [VDC]: 24 at 0.583 A
Nominal Output Power [W]: 1100
Nominal Speed [rpm]: 3000
Holding Torque [Nm]: 9 Holding Brake
Number of Poles: 8
Flange Size [mm]: 100
Shaft Diameter [mm]: 19
Shaft Length [mm]: 40
Key Width [mm]: 30
Protection Class [IP]: 65
Thermal Class: F
Weight [kg]: 8.86
