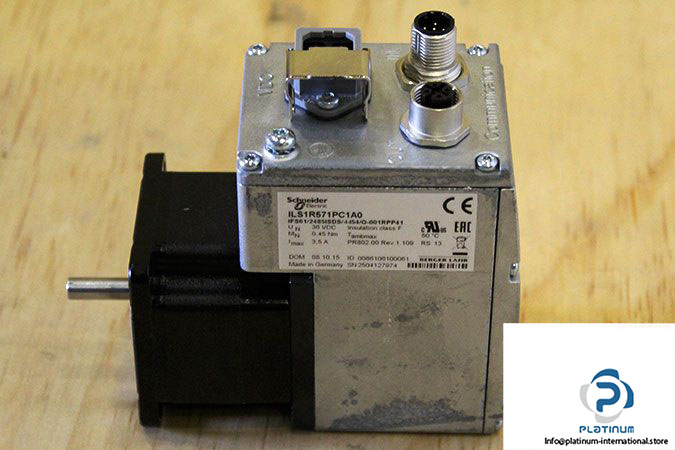

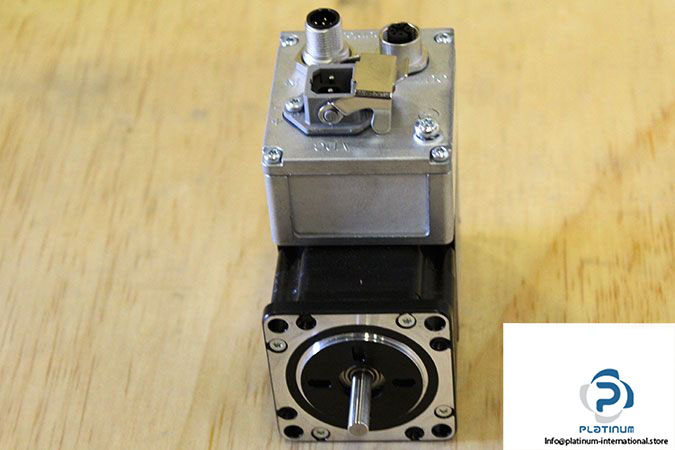

Schneider Electric ILS1R571PC1A0 IFS61/2485ISDS/-I-I54/O-001RPP41 Integrated Drive ILS With Stepper Motor

Manufacturer: ELAU – SCHNEIDER ELECTRIC / BERGER LAHR

Type: INTEGRATED DRIVE ILS WITH STEPPER MOTOR

Model: ILS1R571PC1A0

ID No: 0066106100061

MRN: IFS61/2485ISDS/-I-I54/O-001RPP41

Rated Voltage : 36 V DC

Current (^Imax):  6.5 A

Normal Speed: 1000 Revolution Per Minute (rpm)

Nominal Torque: 0.45 Nm

Holding Torque: 0.51 Nm

Temperature: 50 °C

Flange Size: 57 mm

Motor Length: 101.9 mm

Shaft Diameter: 6.35 mm

Shaft Length: 21 mm

Insulation Class: F

Protection Class: IP 41

Weight: 1.54 kg
