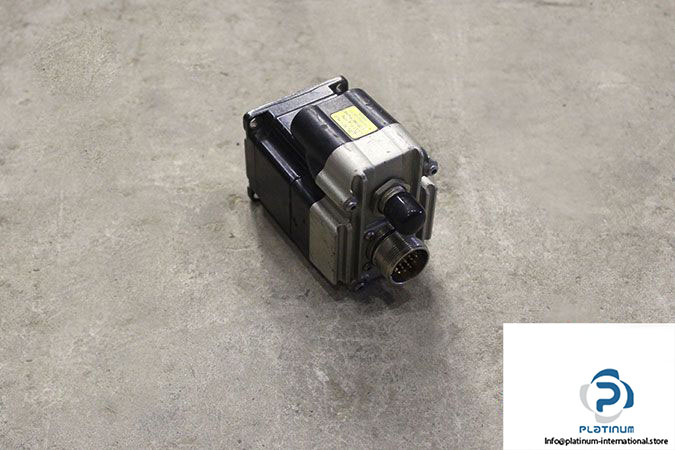

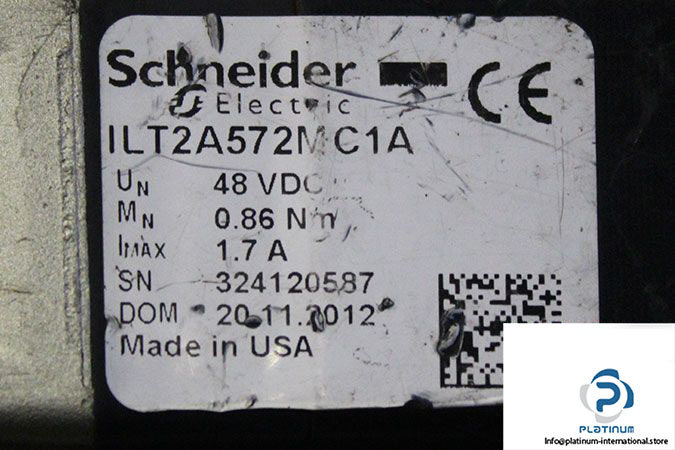

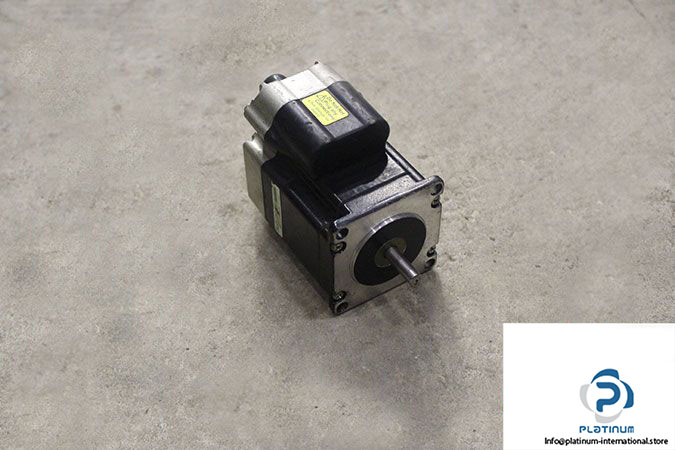

Schneider ILT2A572MC1A Stepper Motor

Manufacturer: Schneider Electric

Type: Stepper Motor

Model: ILT2A572MC1A

Serial No.: 324120587



Rated Supply Voltage [VDC]: 48

Max. Current [A]: 1.7

Nominal Speed [rpm]: 400

Holding Torque [Nm]: 0.86

Peak Stall Torque [Nm]: 0.86

Continuous Stall Torque [Nm]: 0.86

Ambient Temperature [°C]: -25…70

Shaft Diameter [mm]: 5.8

Length [mm]: 97.03

Weight [kg]: 0.85
