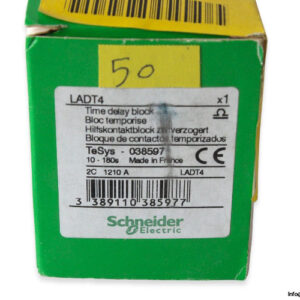

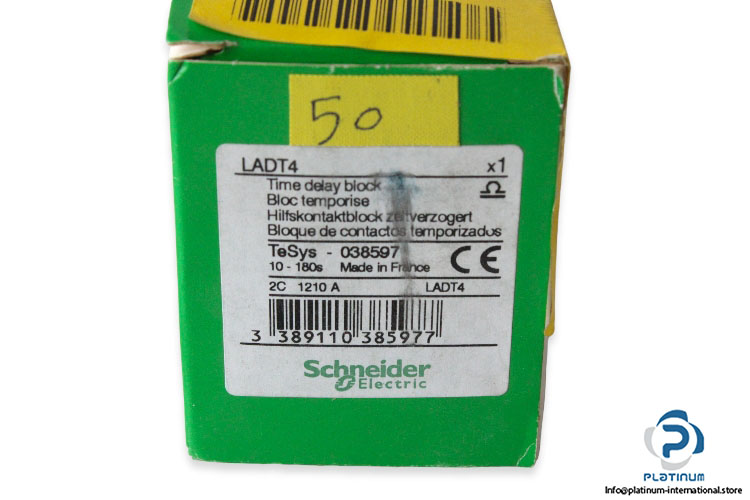

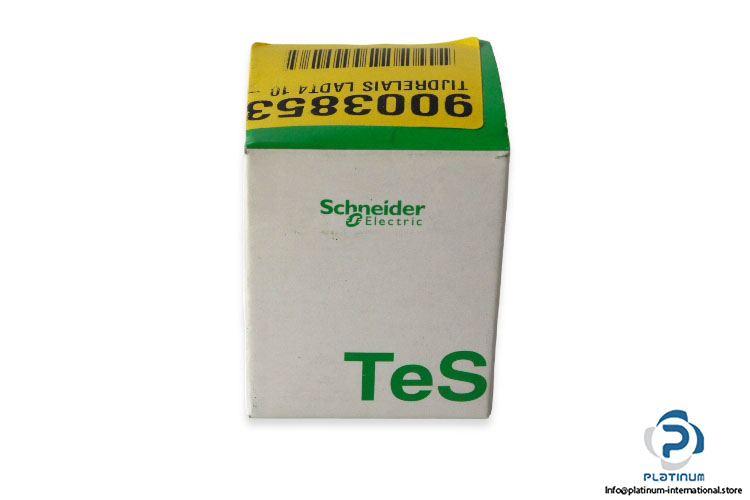

Schneider LADT4 Time Delay Auxiliary Contact Block

Schneider Electric LADT4 Time Delay Auxiliary Contact Block

The Schneider Electric LADT4 is a time delay auxiliary contact block designed for precise switching operations in industrial control systems. Featuring both normally open (NO) and normally closed (NC) contacts, this block offers an adjustable on-delay timer range for flexible control in various applications.

Manufacturer: SCHNEIDER ELECTRIC

Type: Time Delay Auxiliary Contact Block

Model: LADT4

Technical Data:

• Pole Contact Composition: 1 NO + 1 NC
• Contacts Operation: Time delay
• Timer Type: On delay
• Time Delay Range: 10 / 180 s
• Rated Operational Voltage: 690 V AC 25 / 400 Hz
• Rated Operational Current: 6 A
• Rated Insulation Voltage: 690 V
• Minimum Switching Current: 5 mA
• Minimum Switching Voltage: 17 V
• Protection Type: GG fuse 10 A
• Ambient Temperature: -40 / 70 °C
• IP Degree of Protection: IP20
• Dimensions: 48 x 44 x 61 mm
