Schneider LC1D09BD Contactor
New
In stock4 unitsReady to ship
Contactor
The Schneider LC1D09BD is a TeSys Deca contactor for motor control and resistive load switching. It includes a LAD4TBDL suppressor module, operates at 24 V DC, and supports up to 690 V AC with high reliability.243AC3ComponentContactorControldcDecaDiodeIndustrialLAD4TBDLLC1DLC1D09BDModulemotorPoleSchneiderSeriesStarterSuppressorTeSysV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

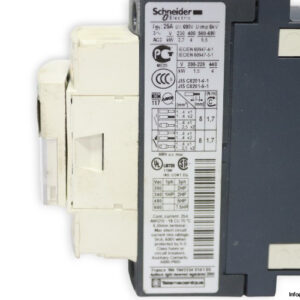

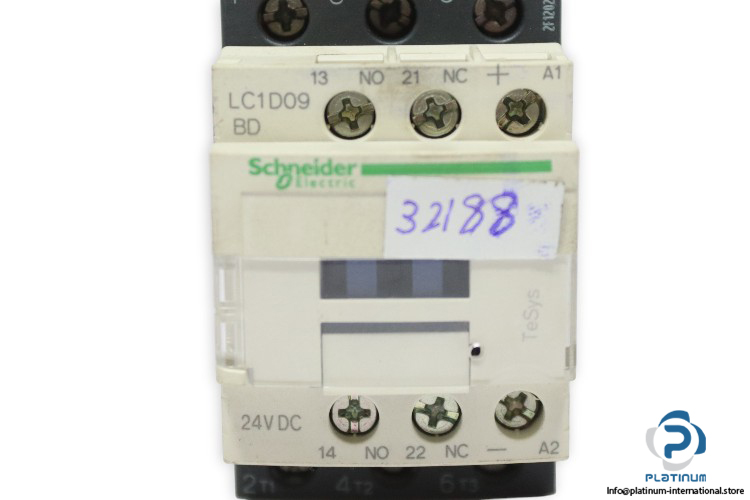

Schneider LC1D09BD Contactor
The Schneider LC1D09BD Contactor is a high-performance motor control and resistive load switching device from the TeSys Deca series. Built for reliability, durability, and precise switching, it is suitable for a wide range of industrial electrical applications. This unit includes the LAD4TBDL bi-directional limiting diode suppressor module for improved protection of DC control circuits.
Manufacturer: Schneider
Type: Contactor
Model: LC1D09BD
| Range of Product | TeSys Deca |
| Product or Component Type | Contactor |
| Device Short Name | LC1D |
| Contactor Application | Motor control, Resistive load |
| Utilisation Category | AC-4, AC-1, AC-3, AC-3e |
| Poles Description | 3P |
| Rated Operational Voltage | Power circuit up to 690 V AC 25 to 400 Hz, up to 300 V DC |
| Control Circuit Voltage | 24 V DC |
| Motor Power | 2.2 kW at 220 to 230 V AC, 4 kW at 380 to 400 V AC, 4 kW at 415 to 440 V AC |
| Pole Contact Composition | 3 NO |
| Thermal Current Ith | 25 A at 60 degree Celsius |
| Rated Insulation Voltage | 690 V IEC, 600 V CSA, 600 V UL |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Built-in Suppressor | Bi-directional peak limiting diode |
| Inrush Power | 5.4 W at 20 degree Celsius |
| Hold-in Power | 5.4 W at 20 degree Celsius |
| Operating Time | 63 ms closing, 20 ms opening |
| Time Constant | 28 ms |
| Maximum Operating Rate | 3600 cycles per hour at 60 degree Celsius |
| Tightening Torque | 1.7 N m on all screw clamp terminals |
| Auxiliary Contact Composition | 1 NO and 1 NC |
| Auxiliary Contact Type | Mechanically linked and mirror contact |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Minimum Switching Voltage | 17 V |
| Minimum Switching Current | 5 mA |
| Insulation Resistance | 10 Megaohm |
| Non-overlap Time | 1.5 ms energisation and de-energisation |
| Standards Compliance | IEC 60335, UL 60335, CSA 60947-4-1 |
| IP Degree of Protection | IP20 front face |
| Protective Treatment | TH, IACS E10, IEC 60947-1 Annex Q |
| Ambient Temperature | minus 40 to 60 degree Celsius, up to 70 degree Celsius with derating |
| Operating Altitude | 0 to 3000 meters |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 95 mm |
| Attached Accessory | Schneider LAD4TBDL Contactor Bi-Directional Limiting Diode |
| Accessory Manufacturer | Schneider Electric |
| Accessory Type | Contactor Bi-Directional Limiting Diode |
| Accessory Model | LAD4TBDL |
| Accessory Part Number | 802546 |
| Accessory Range | TeSys |
| Device Short Name | LAD4 |
| Control Circuit Voltage | 24 V DC |
| Product Type | Suppressor module |
| Mounting Location | Side |
| Mounting Mode | By clips |
| Ambient Temperature for Operation | minus 25 to 55 degree Celsius |
