Schneider LV438578 Circuit Breaker
New
In stock1 unitReady to ship
Circuit Breaker
The Schneider LV438578 ComPact NSX100N is a thermal-magnetic circuit breaker rated at 63 A. With a wide voltage range of 250 V DC / 277 V AC and 8 kV impulse withstand, it offers compact, reliable protection for industrial electrical systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

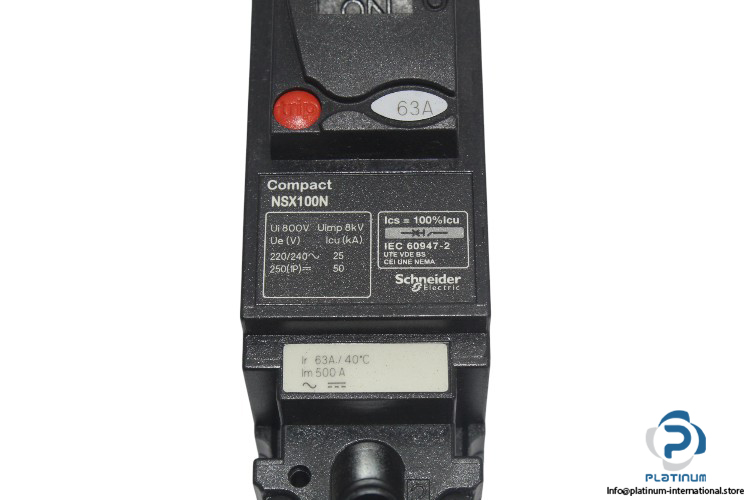

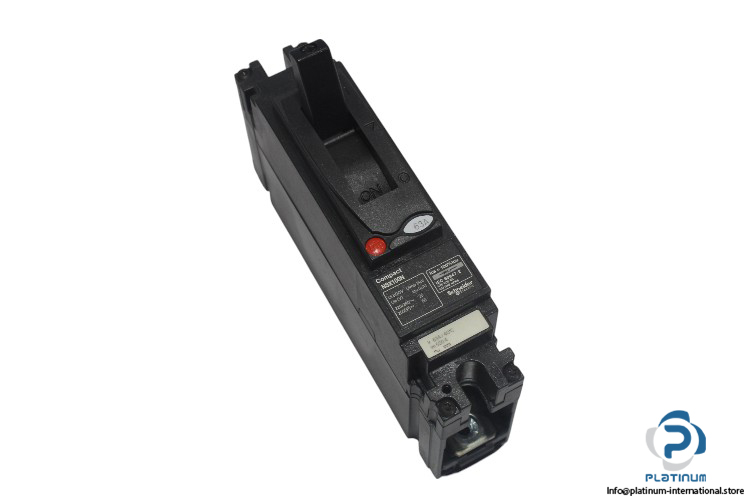

Schneider LV438578 | ComPact NSX100N Circuit Breaker
The Schneider LV438578 is a single-pole thermal-magnetic circuit breaker from the ComPact NSX series, engineered for high-performance protection in both DC and AC applications. Designed to ensure safety, durability, and compliance with IEC 60947-2 standards, it features robust electrical ratings and compact installation dimensions.
Manufacturer: Schneider
Type: Circuit Breaker
Model: LV438578
MRN: MGLV438578
Technical Data:
- Range: ComPact
- Product Name: ComPact NSX
- Range of Product: ComPact NSX100…250 DC / ComPact NSX100…250
- Device Short Name: NSX100N
- Number of Poles: 1P
- [In] Rated Current: 63 A at 40 °C
- [Ue] Rated Operational Voltage: 250 V DC / 277 V AC 50/60 Hz
- Network Frequency: 50/60 Hz
- [Ui] Rated Insulation Voltage: 750 V AC (IEC 60947-2)
- [Uimp] Rated Impulse Withstand Voltage: 8 kV (IEC 60947-2)
- Trip Unit Technology: Thermal-magnetic
- Connection Pitch: 35 mm
- Standards: EN/IEC 60947
- Ambient Air Temperature for Operation: -25 to 70 °C
- Dimensions: 35 x 86 x 161 mm
