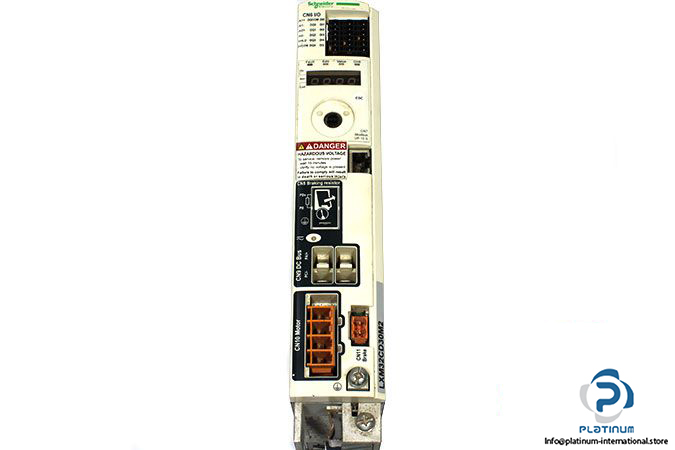

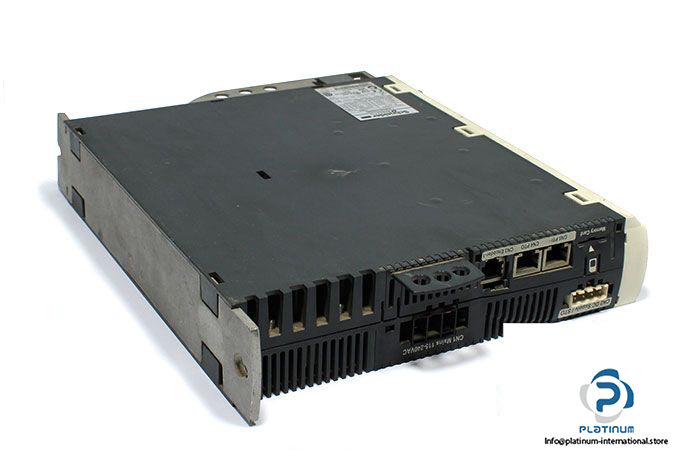

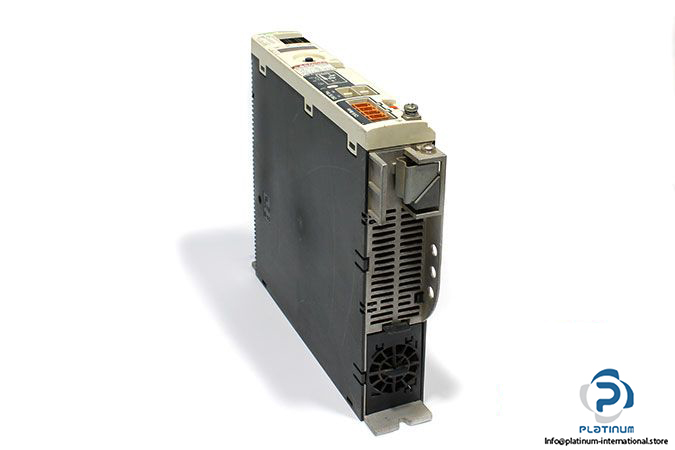

Schneider LXM32CD30M2 Motion Servo Drive

Manufacturer: Schneider Electric

Type: Motion Servo Drive

Model: LXM32CD30M2

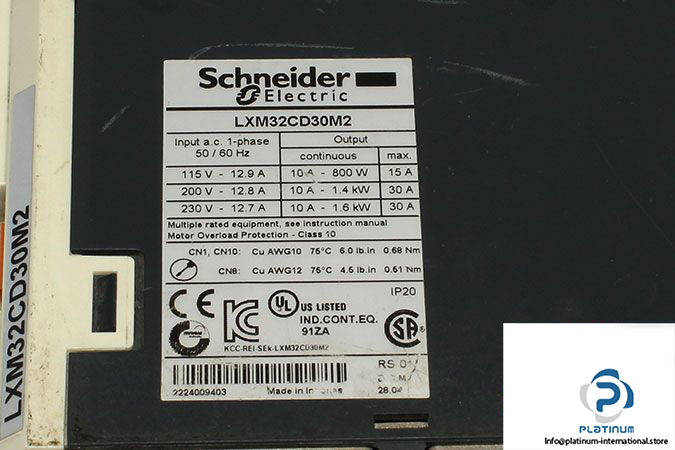

Input

Voltage Rating 1 Phase at

• 12.9 A: 115 V
• 12.8 A: 200 V
• 12.7 A: 230 V

Discrete Input Voltage: 24 VDC

Frequency: 50 … 60 Hz

Output

Current: 10 A

Power at

• 115 V: 0.8 kW
• 230 V: 1.6 kW

Max. Current: 30 A

Ambient Temperature: 0 … 50 °C

Protection Class: IP20

Dimensions: 270 X48 X 237 mm

Weight: 1.86 kg
