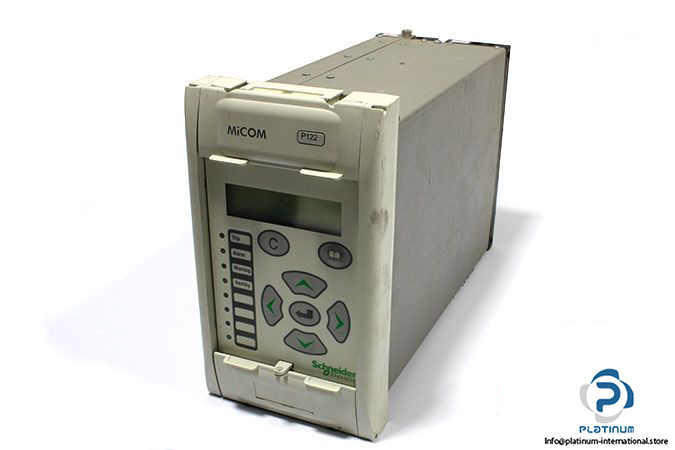

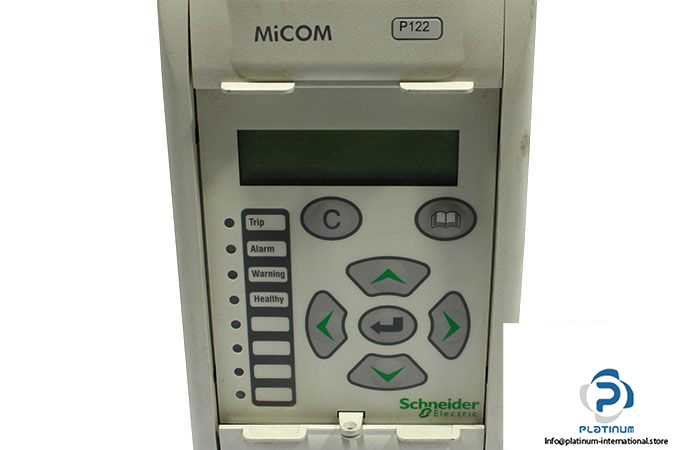

Schneider Micom P122 Overcurrent AND Earth Fault Protection Relay

Manufacturer: Schneider

Type: overcurrent and earth fault protection relay

Model: MICOM P122

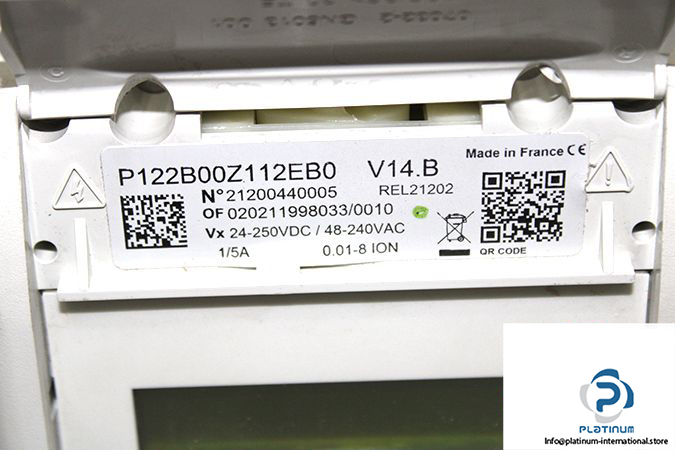

Order code: P122B00Z112EB0



Type of measurement: Current

Voltage: 24-250VDC / 48-240VAC

Protection type

• Overcurrent ANSI code: 50/51
• Cold load pick-up
• Earth fault ANSI code: 50G/51G
• Lockout ANSI code: 86
• Thermal overload protection ANSI code: 49RMS
• Phase undercurrent ANSI code: 37
• Breaker failure ANSI code: 50BF
• Negative sequence overcurrent ANSI code: 46
• Restricted earth fault ANSI code: 64REF

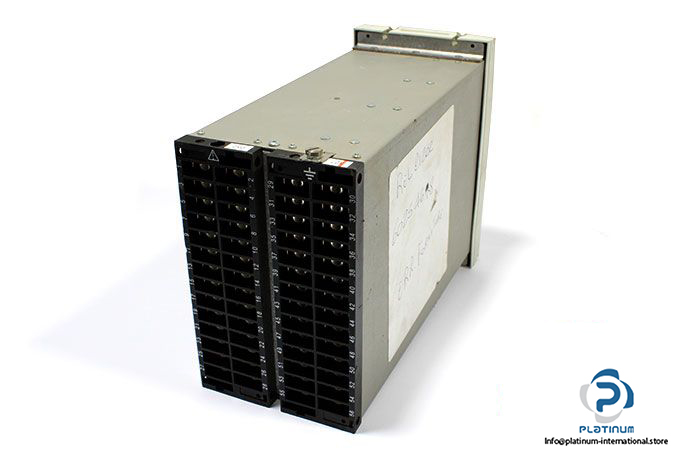

No. of inputs: 4 current input CT…X/5 A and X/1 A – 3 discrete

No. of outputs: 7 discrete

Weight: 3 kg
