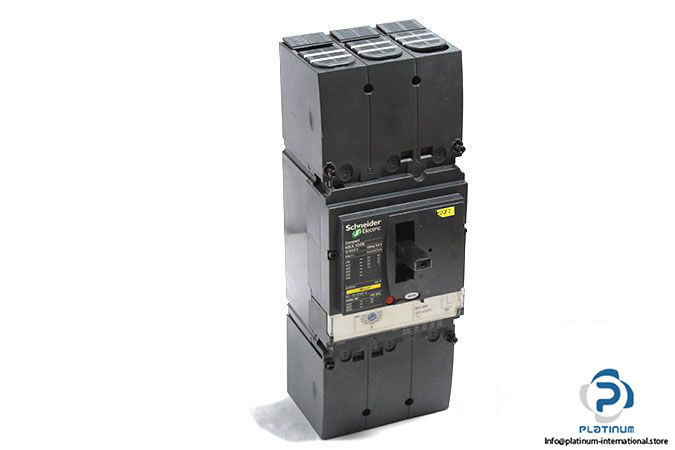

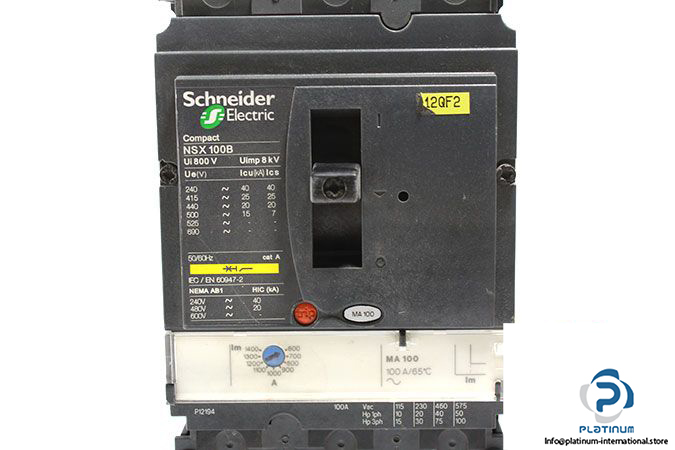

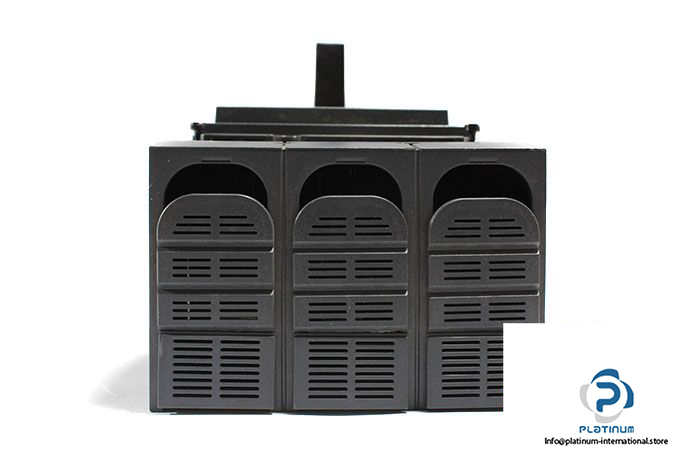

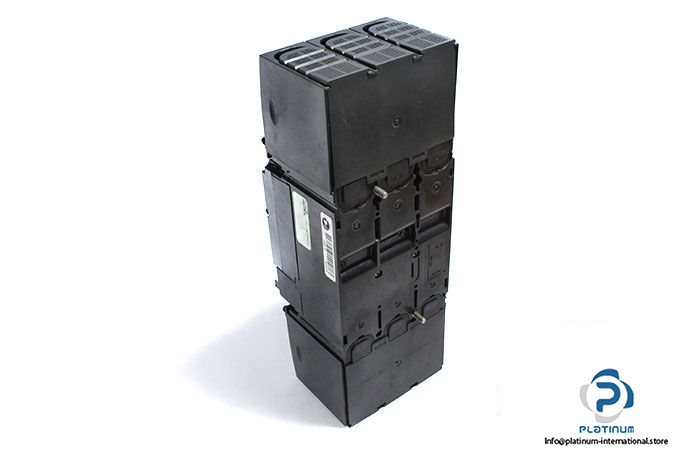

Schneider NSX100B Circuit Breaker

Manufacturer: Schneider

Type: Circuit Breaker

Range: Compact

Model: NSX100B

Part No.: LV429540

Number of Poles: 3

Rated Current (I_n): 100 A

Rated Operational Voltage (U_e): 690 V AC

Rated Insulation Voltage (U_i): 800 V AC 50/60 Hz

Rated Impulse (U_imp): 8 kV

Breaking Capacity (I_cu):

40 kA Icu at 220/240 V AC

25 kA Icu at 380/415 V AC

15 kA Icu at 500 V AC

Service Frequency: 50/60 Hz

Mounting Mode: Fixed

Dimensions ( W x D x H): 105 x 86 x 288 mm

Protection Class: IP40

Operation Temperature: -35 … 70°C

Weight: 1.9 kg
