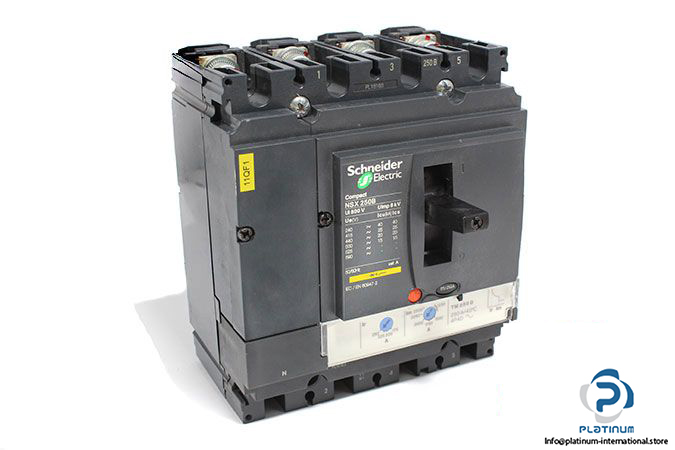

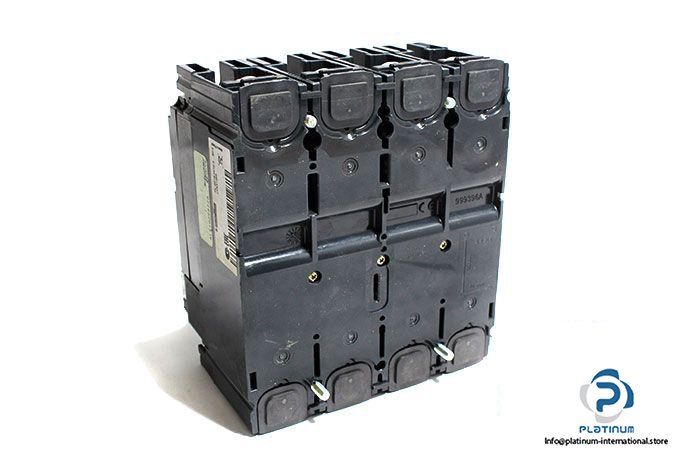

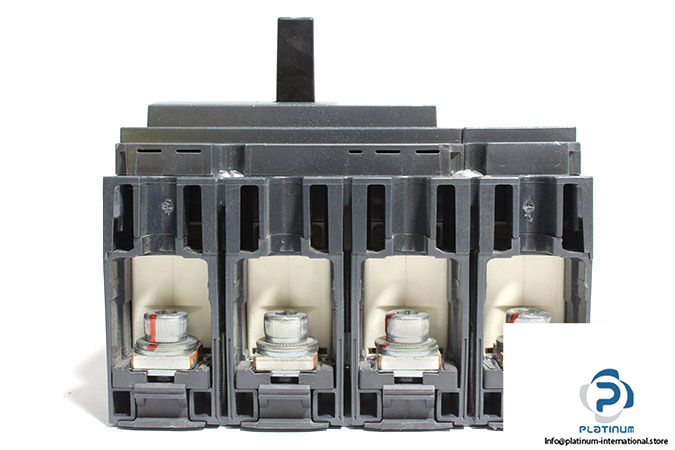

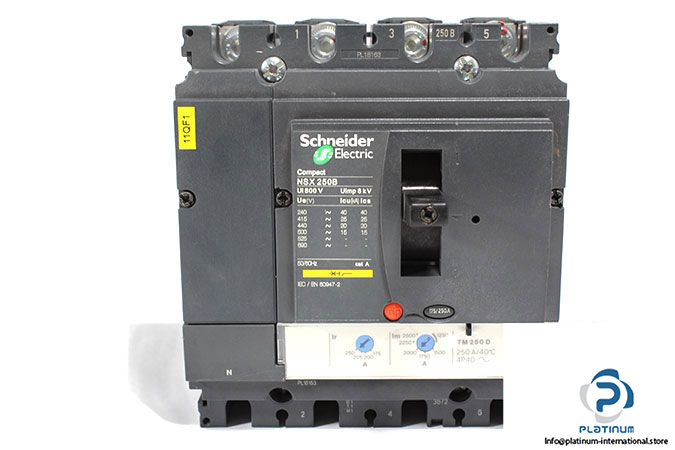

Schneider NSX250B Circuit Breaker

Manufacturer: Schneider

Type: Circuit Breaker

Range: Compact

Model: NSX250B

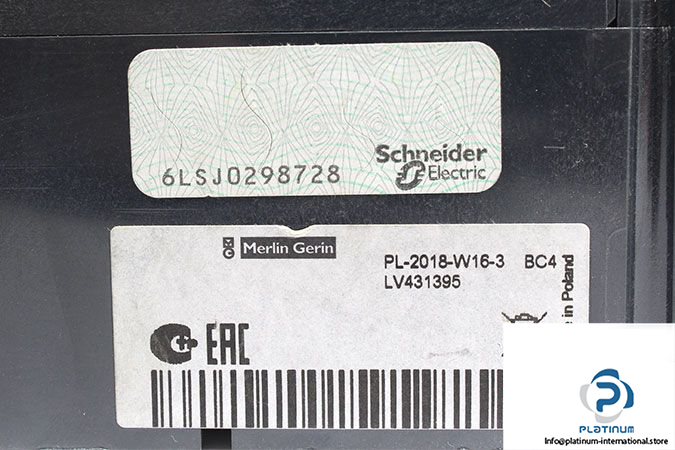

Part No.: LV431395

Number of Poles: 4

Rated Current (I_n): 250 A

Range Of Product: NSX100 … 250

Rated Operational Voltage (U_e): 690 V AC

Rated Insulation Voltage (U_i): 800 V AC 50/60 Hz

Rated Impulse (U_imp): 8 kV

Breaking Capacity (I_cu):

40 kA 220/240 V AC

25 kA 380/415 V AC

15 kA 500 V AC

Mounting Mode: Fixed

Service Frequency: 50/60 Hz

Dimensions ( W x D x H): 140 x 85 x 161 mm

Protection Class: IP40

Operation Temperature: -35…70 °C

Weight: 2.47 kg
