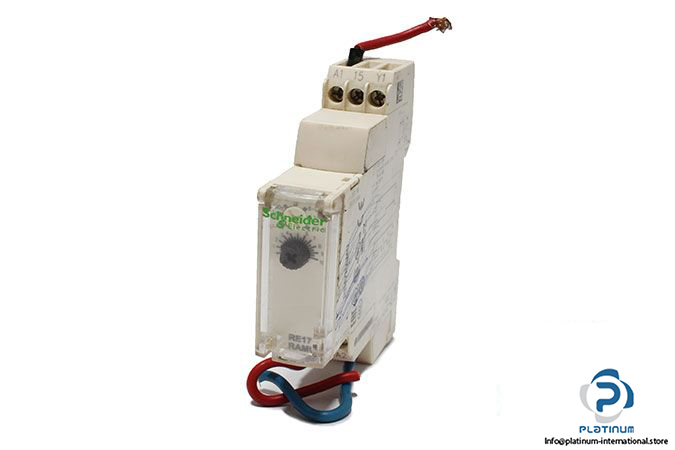

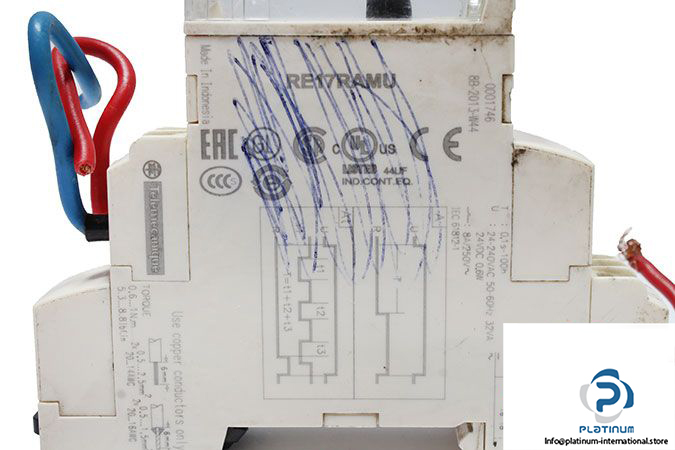

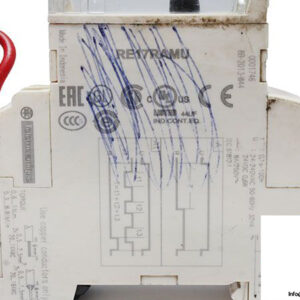

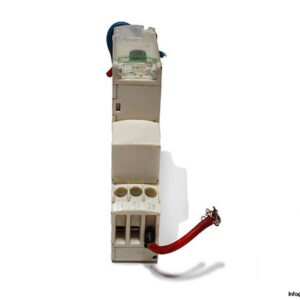

Schneider RE17RAMU Modular Timing Relay
Manufacturer: SCHNEIDER
Type: Modular Timing Relay
Model: RE17RAMU
Rated Supply Voltage: 24 … 240 VAC / 24 VDC
Frequency: 50/60 Hz
Power Consumption: 0 … 32 VA at 240 VAC
Max. Power Consumption: 0.6 W at 24 VDC
Min. Switching Current: 10 mA at 5 VDC
Max. Switching Current: 8 A AC/DC
Max. Switching Voltage: 250 V AC
Breaking Capacity: 2000 VA
Ambient Air Temperature: -20 … 60 °C
Protection Class Terminal / Housing / Front Panel: IP20 / IP40 / IP50
Time Setting: 0.1 s … 100 hrs
Dimensions: 17.8 X 72 X 90 mm
Weight: 0.07 Kg
