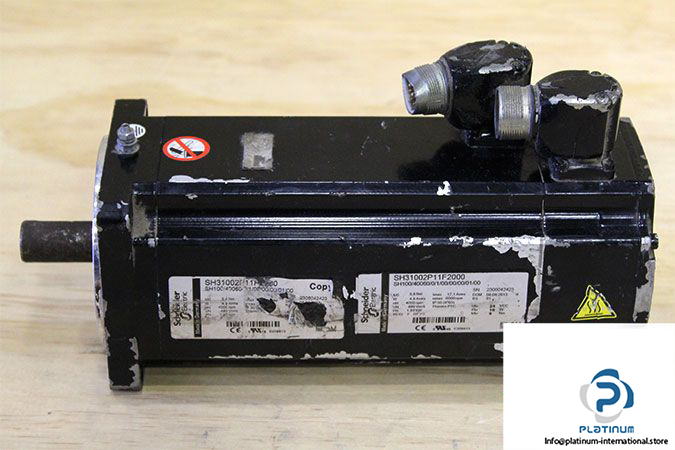

Schneider Electric SH31002P11F2000 Servo Motor

Manufacturer: ELAU – SCHNEIDER ELECTRIC

Type: SERVO MOTOR

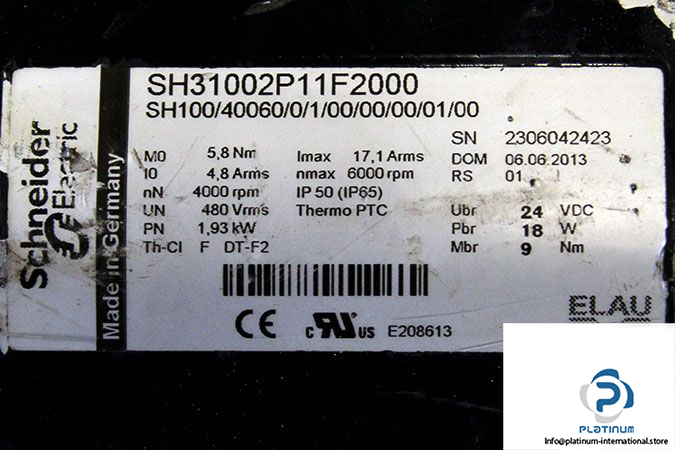

Model: SH31002P11F2000

Alternative Model: SH100/40060/0/1/00/00/00/01/00

Rated Voltage : 480 Vrms

Max. Current: 17.1 Arms

Stall Current: 4.8 Arms

Normal Speed: 4000 Revolution Per Minute (rpm)

Max. Speed: 6000 Revolution Per Minute (rpm)

Nominal Torque: 5.8 Nm

Holding Torque: 9 Nm

Nominal Power: 1.93 kW

Flange Size: 100 mm

Motor Length: 234.5 mm

Shaft Diameter: 19 mm

Shaft Length: 40 mm

Thermal Class: F

Protection Class: IP50 (IP65)

Weight: 6.56 kg
