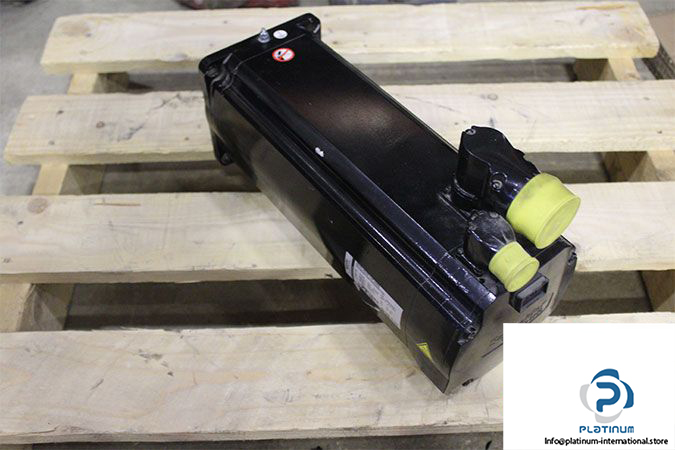

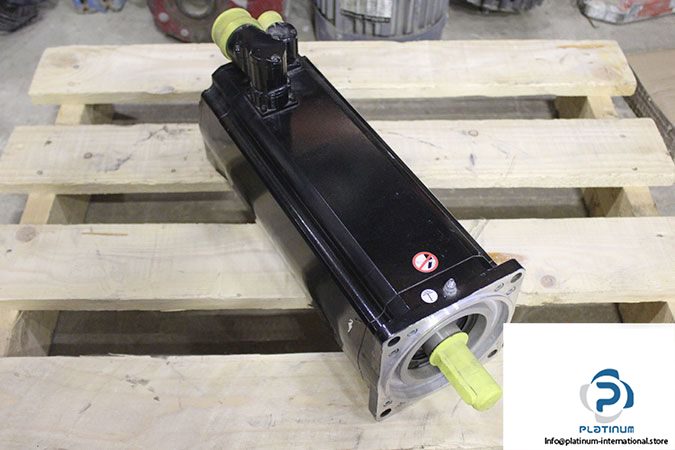

Schneider SH31403P12F2000 Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

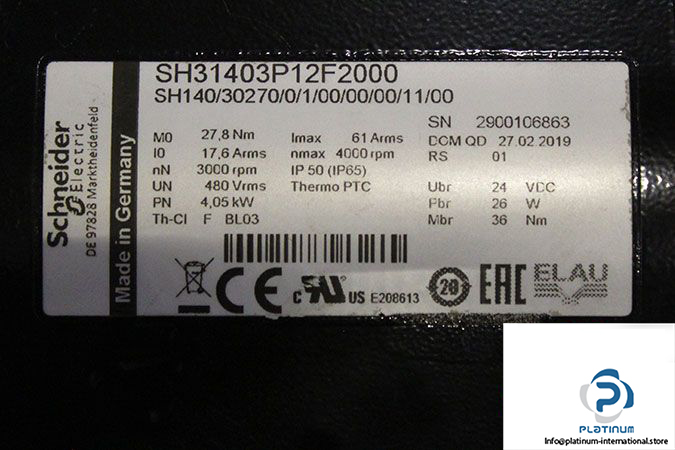

Model: SH31403P12F2000

Part No.: SH140/30270/0/1/00/00/00/11/00

Stall Torque [Nm]: 27.8

Stall Current [A]: 17.6

Max Current [A]: 61

Rated Voltage [V]: 480

Rated Power [kW]: 4.05

Rated Speed [rpm]: 3000

Max Speed [rpm]: 4000

Number of Poles: 5

Holding Torque [Nm]: 36

Shaft End: Parallel key

Flange Size [mm]: 140

Key Width [mm]: 8

Shaft Diameter [mm]: 24

Shaft Length [mm]: 50

Protection Class [IP]: 65

Thermal Class: F
