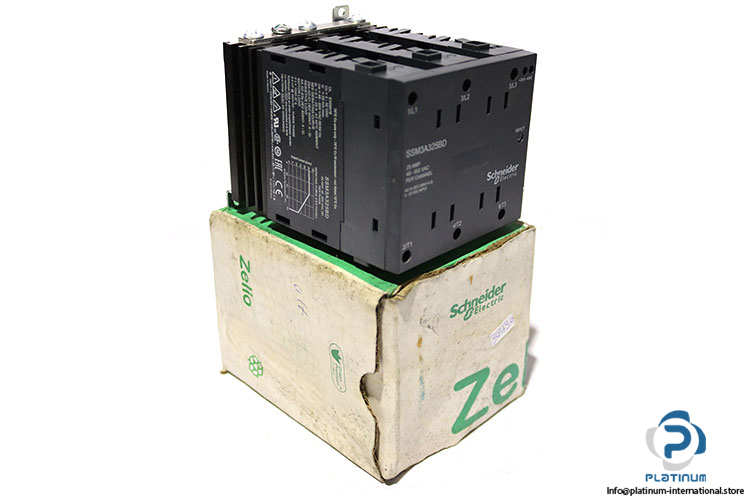

Schneider SSM3A325BD Solid State Relay
New
In stock1 unitReady to ship
Solid State Relay
Schneider SSM3A325BD three-phase solid state relay from the Zelio Relay range, featuring 48…600 V AC output, 4…32 V DC control voltage, LED input status, and IP20 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Schneider SSM3A325BD Solid State Relay
The Schneider SSM3A325BD is a three-phase solid state relay from the Zelio Relay range, engineered for reliable performance in demanding industrial applications. With durable construction, precise switching, and LED status indication, it ensures efficiency and safety in automation systems.
Manufacturer: Schneider
Type: Solid State Relay
Model: SSM3A325BD

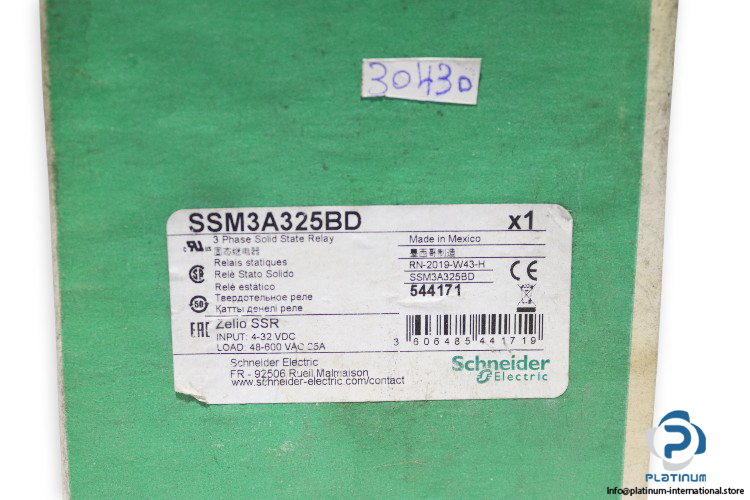

ID No.: 544171
Ref No.: RN-2019-W43-H
| Range of Product | Zelio Relay |
| Product or Component Type | Solid State Relay |
| Device Short Name | SSM3 |
| Number of Channels | 3 |
| Network Number of Phases | 3 Phases |
| Mounting Support | Symmetrical DIN Rail |
| Output Voltage | 48...600 V AC |
| Control Circuit Voltage [Uc] | 4...32 V DC |
| Contacts Type and Composition | 3 NO |
| Tightening Torque | Input: 0.6...0.7 N.m / Output: 1.36...1.7 N.m |
| Connections - Terminals | Input: Screw terminals 0.2...1.3 mm² (AWG 24...AWG 16) |
| Output | Screw terminals 1.3...5.3 mm² (AWG 16...AWG 10) |
| Capacitance Unbalance | ‰¤ 8 pF for input/output |
| Insulation Resistance | 1000 MΩ |
| Local Signalling | LED green for input status |
| Switching Voltage | 4 V DC turn-on / 1 V DC turn-off |
| Input Current Limits | 22...28 mA |
| IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | -20...80 °C |
