Schneider XAC-B04 Empty Pendant Control Station
New
In stock1 unitReady to ship
Pendant Control Station
SCHNEIDER Harmony XAC-B04 empty pendant control station with 4 cut-outs, IP65 protection, glass reinforced polyester enclosure, and wide operating temperature range for industrial control applications.4CertifiedControlCSACutDoubleEEmptyenclosureGlassHarmonyIndustrialInsulatedIP65outPendantpolyesterreinforcedSchneiderStationXACXAC-B04Yellow
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

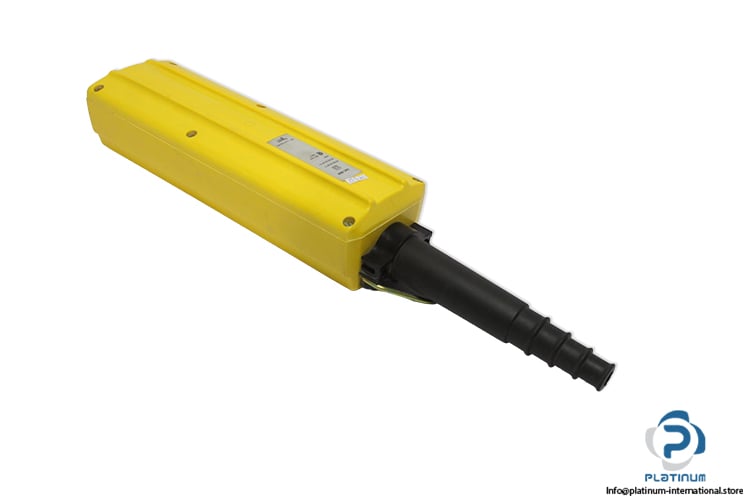

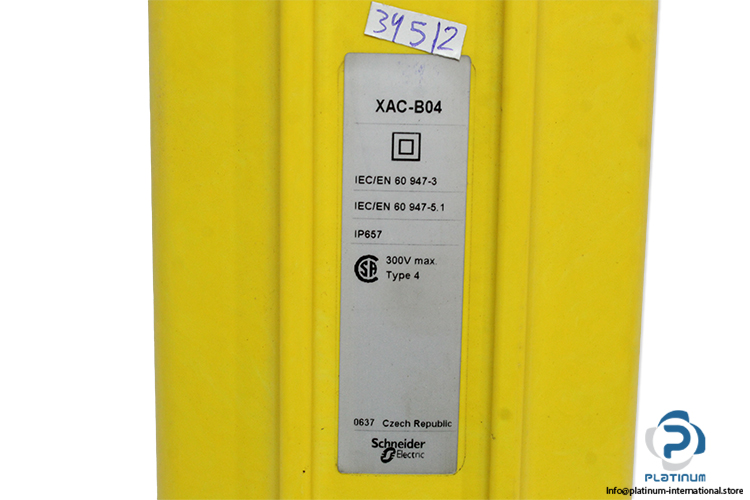

SCHNEIDER XAC-B04 Empty Pendant Control Station
The SCHNEIDER XAC-B04 is an empty pendant control station from the Harmony XAC range, designed for industrial power and control circuit applications. This double-insulated enclosure is manufactured from glass reinforced polyester and provides high protection levels for demanding environments.
Manufacturer: SCHNEIDER
Type: Empty Pendant Control Station
Model: XAC-B04
Range Of Product: Harmony XAC
Product Or Component Type: Pendant Control Station
Device Short Name: XACB
| Control Station Type | Double Insulated |
| Enclosure Material | Glass Reinforced Polyester |
| Electrical Circuit Type | Power Circuit / Control Circuit |
| Enclosure Type | Empty Enclosure |

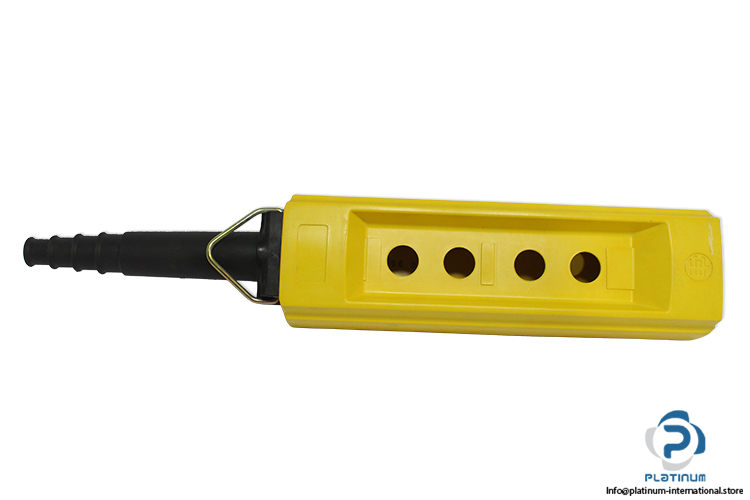

| Number Of Cut-Out | 4 Cut-Outs |
| Control Station Colour | Yellow |
| Cable Entry | Rubber Sleeve With Stepped Entry 10 / 22 mm |
| Guard Rail | Without |
| Vertical Operator Cut-Out Centre | 40 mm |
| Standards | CSA C22.2 No 14 / IEC/EN 60947-5-1 / IEC/EN 60947-3 |
| Product Certifications | CSA Type 4 |
| Protective Treatment | TH |
| Ambient Air Temperature For Operation | -25 / 70 °C |
| Ambient Air Temperature For Storage | -40 / 70 °C |
| Vibration Resistance | 15 gn (f= 10 / 500 Hz) Conforming To IEC 60068-2-6 |
| Shock Resistance | 100 gn Conforming To IEC 60068-2-27 |
| Overvoltage Category | Class II Conforming To IEC 61140 |
| IP Degree Of Protection | IP65 Conforming To IEC 60529 |
| IK Degree Of Protection | IK08 Conforming To IEC 62262 |
