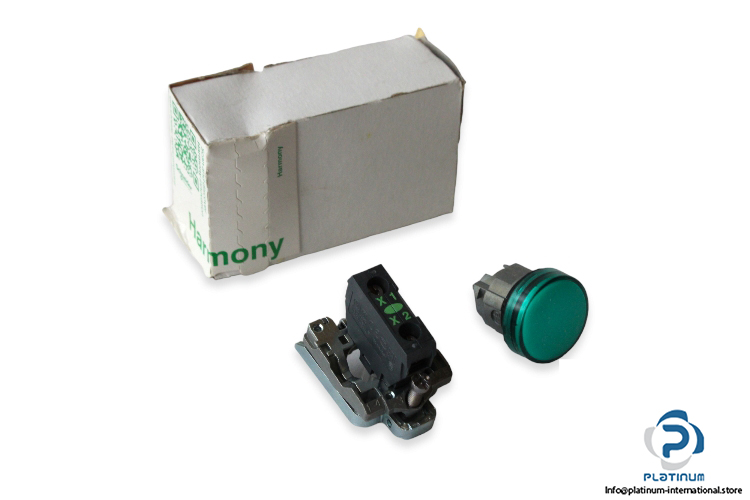

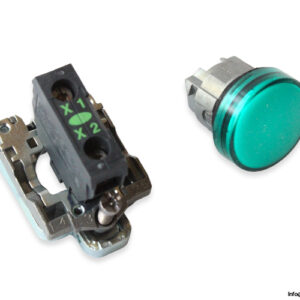

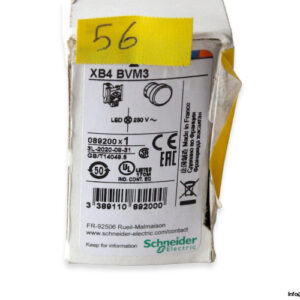

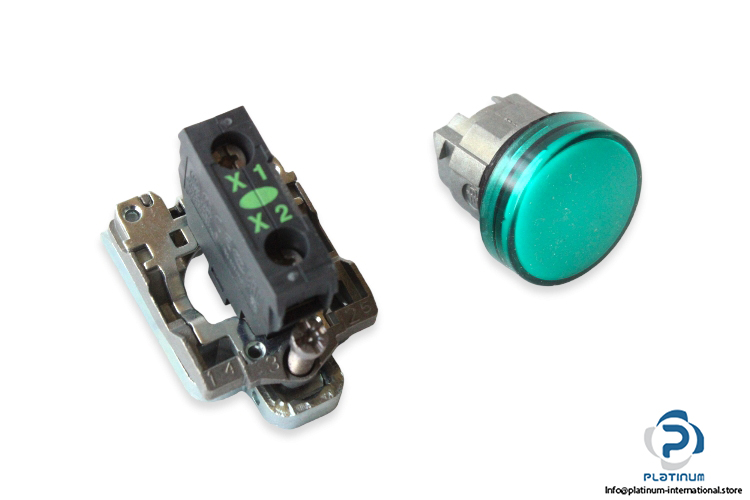

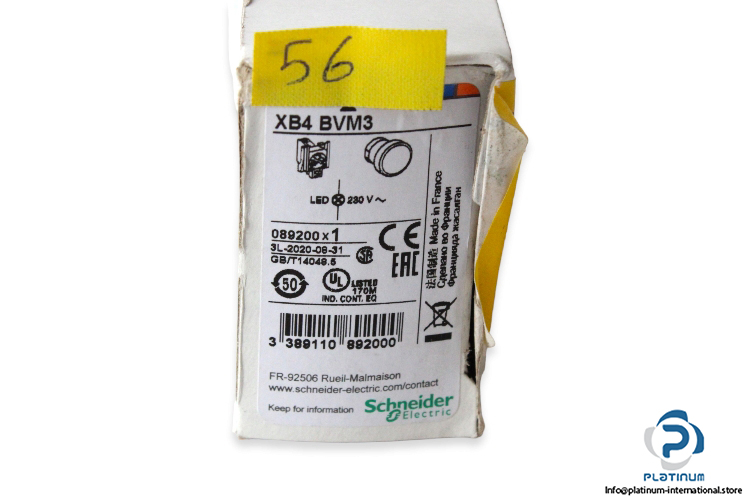

Schneider XB4 BVM3 Pilot Light

Manufacturer: Schneider electric
Type: Pilot Light
Model: XB4BVM3
Device short name: XB4

Rated supply voltage [Us]: 230 … 240 V AC 50/60 Hz
Supply voltage limits: 195 … 264 V AC
Rated insulation voltage [Ui]: 250 V
Bezel material: Chromium plated metal
Fixing collar material: Zamak
Mounting diameter: 22 mm
Head type: Standard
Shape of signaling unit head: Round
Cap/operator or lens color: Green
light source: Universal LED
Bulb base: Integral LED
light source color: Green
Ambient Temperature: -40 … 70 °C
Connections-terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
