Schneider XPSMCMCO0000EM Expansion Module
New
In stock6 unitsReady to ship
Expansion Module
Schneider Electric XPSMCMCO0000EM Modicon MCM non-safe communication module with Modbus TCP/IP, 24 V DC supply, RJ45 port, and DIN rail mounting.CommunicationDINElectricexpansionIndustrialIPMCMModbusModiconModulePreventarailRJ45SchneiderTCPXPSMCMCO0000EM
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 074842 |
| Code | 10224623 |
| Serial No. | 3606480748424 |

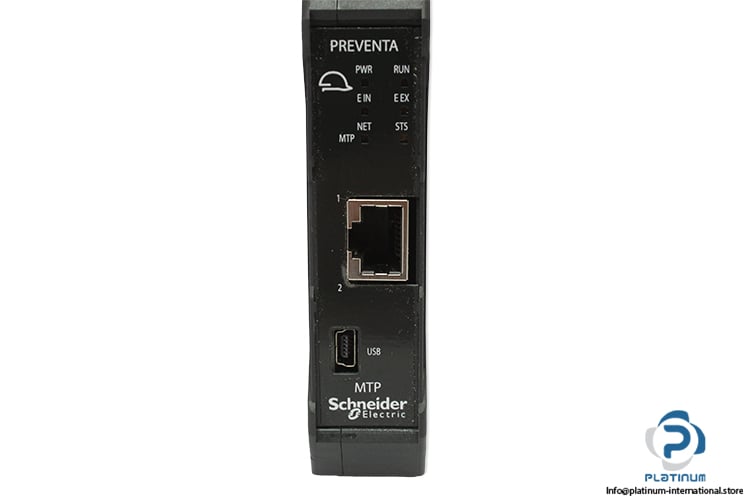

| Local Signalling | LED Green PWR “ Power ON, LED Green RUN “ Operating, LED Red E IN “ Internal Error, LED Red E EX “ External Error, LED Green/Red NET “ Connection State, LED Green/Red STS “ Communication Status |
| Cable Cross Section | 0.0003 / 0.002 in² (0.2 / 1.5 mm²) - AWG 24...AWG 16 Flexible Without Cable End, 0.0003 / 0.004 in² (0.2 / 2.5 mm²) - AWG 24...AWG 14 Flexible Without Cable End, 0.0004 / 0.002 in² (0.25 / 1 mm²) - AWG 23...AWG 18 Flexible With Cable End, Without Bezel, 0.0004 / 0.004 in² (0.25 / 2.5 mm²) - AWG 23...AWG 14 Flexible With Cable End, With Bezel, 0.0004 / 0.004 in² (0.25 / 2.5 mm²) - AWG 23...AWG 14 Flexible With Cable End, Without Bezel, 0.0008 / 0.002 in² (0.5 / 1.5 mm²) - AWG 20...AWG 16 Flexible With Cable End, With Double Bezel, 0.0003 / 0.002 in² (0.2 / 1 mm²) - AWG 24...AWG 18 Solid Without Cable End, 0.0003 / 0.004 in² (0.2 / 2.5 mm²) - AWG 24...AWG 14 Solid Without Cable End |
| Range of Product | Modicon MCM |
| Product or Component Type | Non-safe Communication Module |
| Device Short Name | XPSMCM |
| Rated Supply Voltage [Us] | 24 V (-20...20 %) DC |
| Power Dissipation | 3 W |
| Quality Labels | CE |
| Range Compatibility | Preventa XPSMCM |
| Connector Type | RJ45 |
| Number of Ports | 1 |
| Method of Access | Server |
| Transmission Rate | 10/100 Mbit/s |
| Communication Port Protocol | Modbus TCP/IP |
| Current Consumption | 0.125 mA |
| Maximum Cable Distance Between Devices | 328.08 ft (100 m) |
| Connections - Terminals | 2 Captive Screw Clamp Terminals, Removable Terminal Block |
| Mounting Support | Omega 35 mm DIN Rail EN 50022 |
| Width | 0.9 in (22.5 mm) |
| Height | 3.9 in (99 mm) |
| Depth | 4.5 in (114.5 mm) |
| IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | -10 / 55 °C |
| Condition | New |
| Stock Key | JO-004 |
