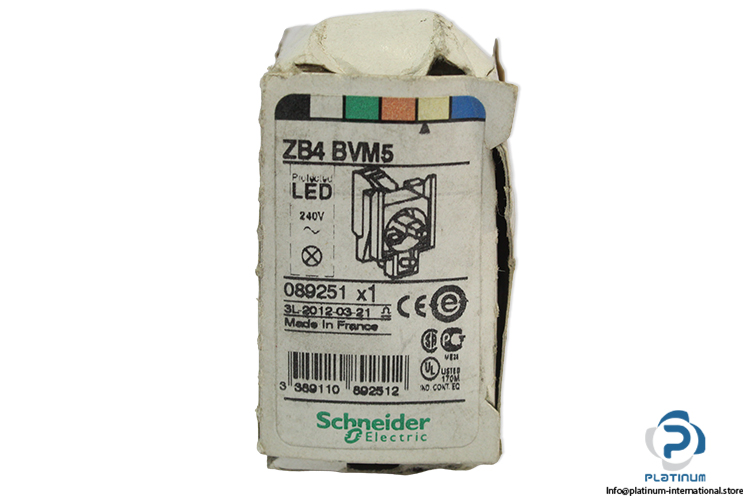

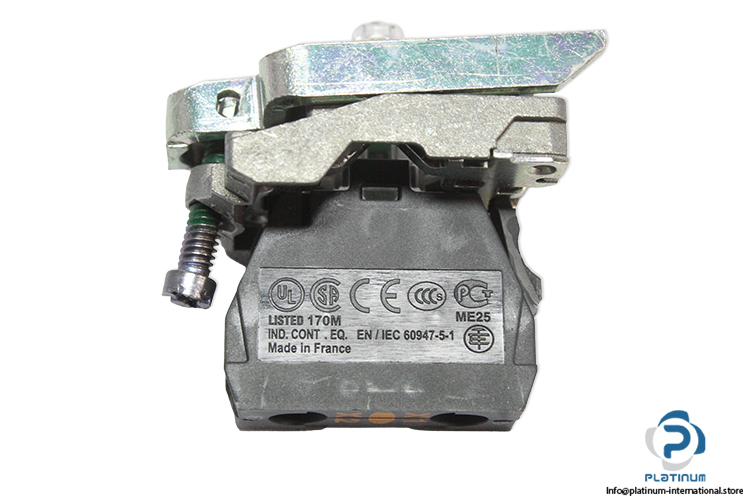

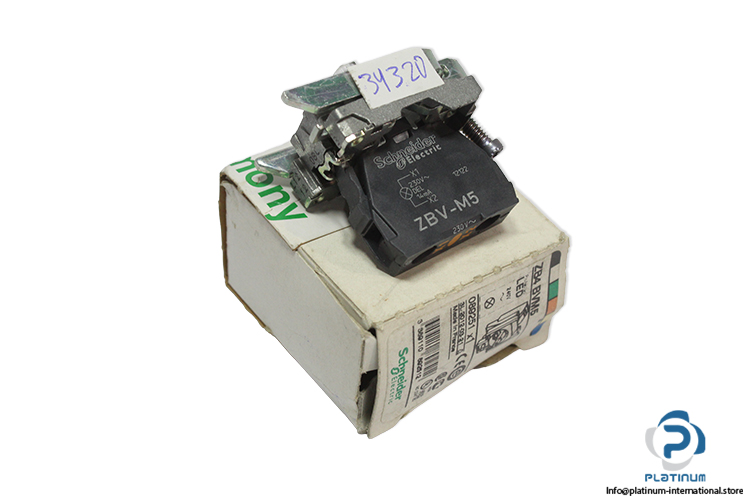

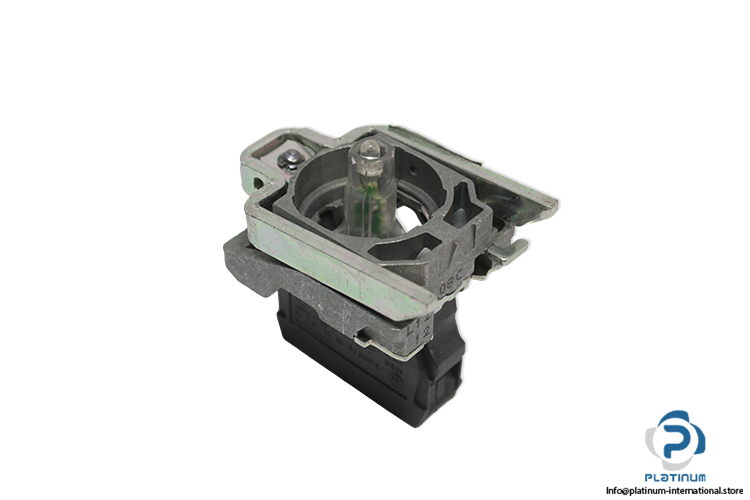

Schneider ZB4 BVM5 Light Block With Body/Fixing Collar
The Schneider ZB4 BVM5 is a complete body and light block assembly from the Harmony XB4 range. It features a durable Zamak fixing collar, protected integral LED light source, and is designed for reliable panel mounting applications in industrial control systems.
Manufacturer: Schneider
Type: Light Block With Body/Fixing Collar
Model: ZB4 BVM5
Part No.: 089251

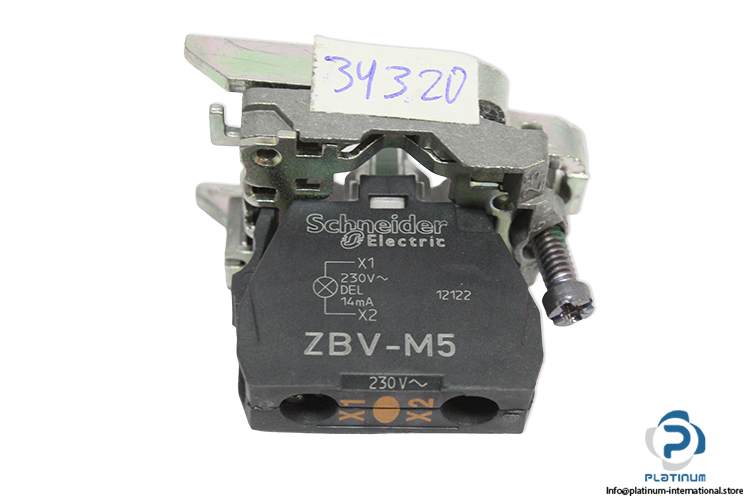

Light Block Code: ZBV-M5
Serial No.: 3389110892512
Range Of Product: Harmony XB4
Product Or Component Type: Complete Body/Light Block Assembly
Device Short Name: ZB4
Fixing Collar Material: Zamak
| Light Source | Protected LED |
| Bulb Base | Integral LED |
| Light Source Colour | Orange |
| Rated Supply Voltage | 230...240 V AC 50/60 Hz |
| CAD Overall Width | 1.18 in (30 mm) |
| CAD Overall Height | 1.85 in (47 mm) |
| CAD Overall Depth | 1.46 in (37 mm) |
| Tightening Torque | 7.08 / 10.62 lbf.in (0.8 / 1.2 N.m) EN 60947-1 |
| Shape Of Screw Head | Cross Philips No 1, Cross Pozidriv No 1, Slotted Flat Ø 4 mm, Slotted Flat Ø 5.5 mm |
| [Ui] Rated Insulation Voltage | 600 V EN 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Ambient Air Temperature For Operation | -40 / 158 °F (-40 / 70 °C) |
| Electrical Shock Protection Class | Class I IEC 60536 |
| Standards | EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL 508, JIS C8201-5-1, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1 |
