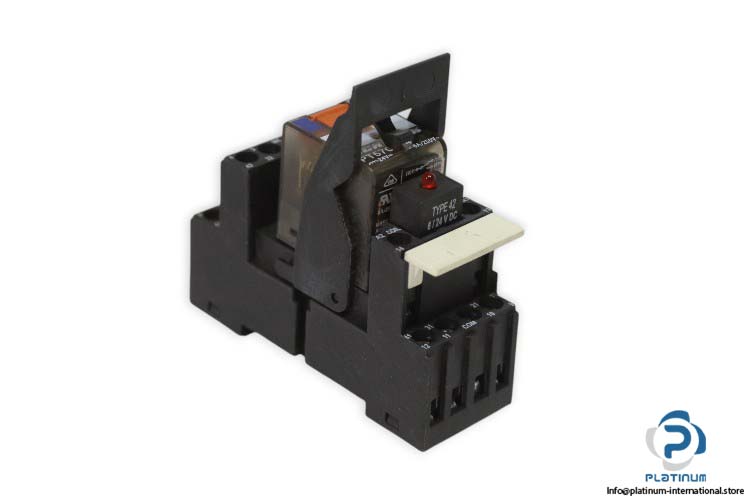

Schrack PT570024 Miniature Relay With Socket
Used
In stock1 unitReady to ship
Compact and robust SCHRACK miniature relay (Model PT570024) with socket relay ES 15/4N / 42. Designed for reliable switching in control systems, automation, and signal processing circuits.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: SCHRACK
Type: Miniature Relay

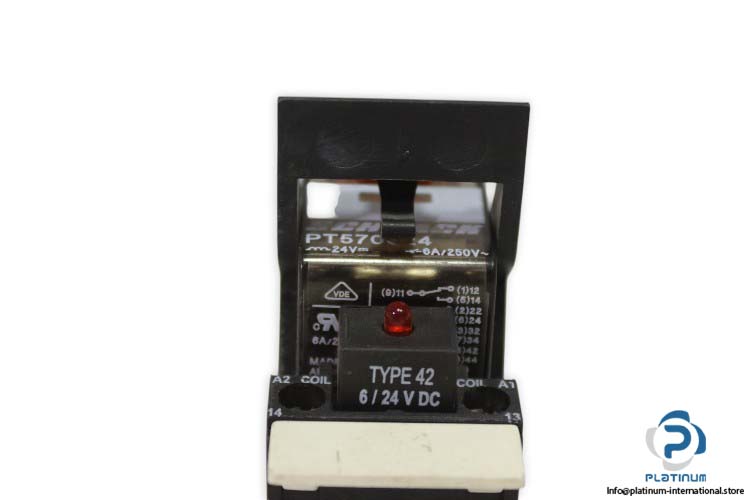

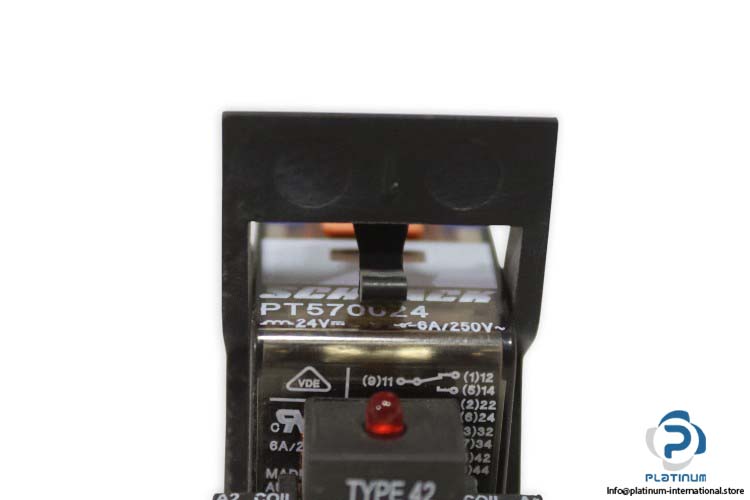

Model: PT570024

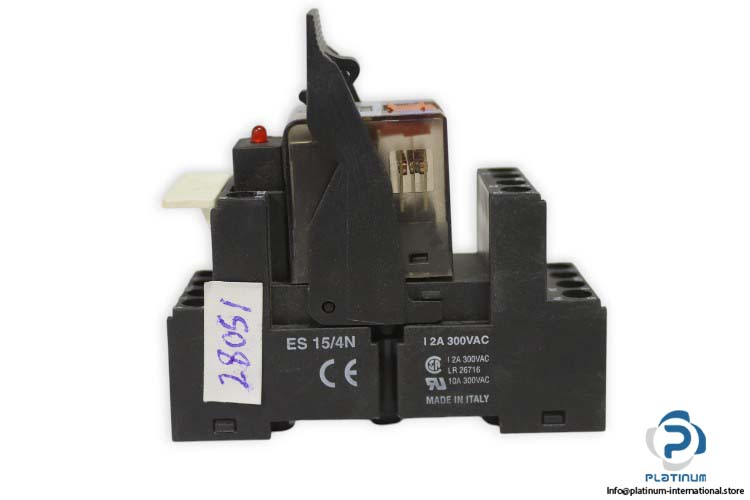

MNR: ES 15/4N / 42
Socket Relay Attachment
The SCHRACK PT570024 miniature relay is designed for high-performance switching in compact electrical systems. Engineered for durability and precision, it offers versatile usage in automation, control panels, and signal circuits. Paired with its ES 15/4N / 42 socket relay, this configuration ensures efficient electrical connection and thermal stability across a wide range of applications.
| Contact Number of Poles | 4 |
| Contact Limiting Short-Time Current | 300 A |
| Contact Switching Voltage (Max) | 240V AC |
| Contact Switching Load (Min) | 10 mA @ 12 V |
| Coil Voltage Rating | 24 VDC |
| Contact Voltage Rating | 240V AC |
| Coil Power Rating DC | 741 W |
| Dimensions (H x W x L) | 29 x 22.5 x 28 mm |
| Operating Temperature Range | -40 to 70 °C |
| Rated Voltage AC | 12 A @ 300V AC / 10 A @ 300V AC |
| Rated Voltage DC | 6 / 24 V DC |
| Ambient Temperature | -40°C to 85°C |
