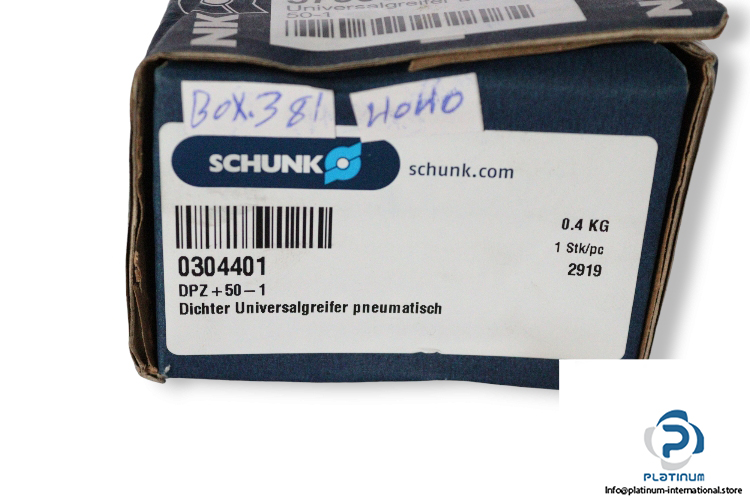

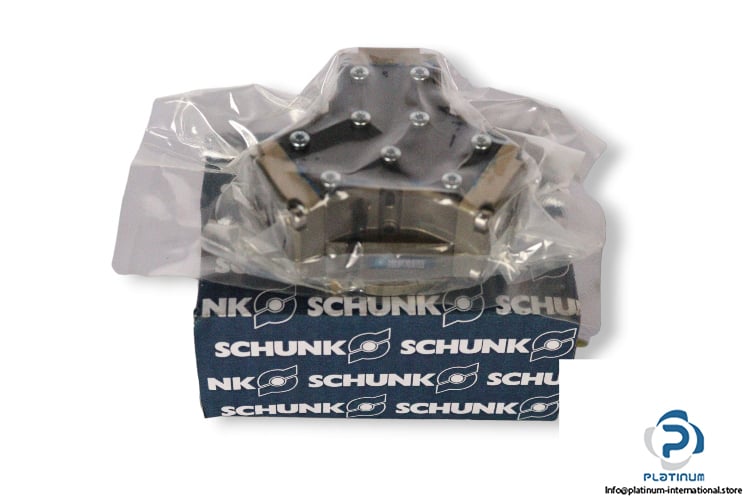

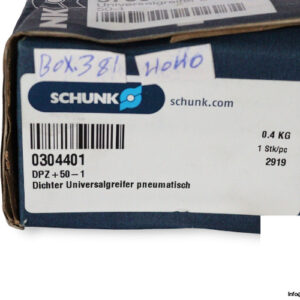

Schunk DPZ+50-1 Universal Gripper

Manufacturer: SCHUNK
Type: Universal Gripper
Model: DPZ -plus 50-1
Part no.: 0304401

Size: 50, pneumatic
Stroke per jaw: 4 mm
Closing force: 290 N
Opening force: 320 N
Fluid consumption double stroke: 9 cm³
Min. operating pressure: 2.5 bar
Max. operating pressure: 8 bar
Nominal operating pressure: 6 bar
Min. air purge pressure: 0.2 bar
Max. air purge pressure: 0.5 bar
Closing time: 0.03 s
Opening time: 0.03 s
Max. permissible finger length: 50 mm
IP protection class: 67
Min. ambient temperature: 5 °C
Max. ambient temperature: 90 °C
Repeat accuracy: 0.01 mm
Diameter: 80.6 mm
Height: 40.5 mm
Moment Mx max.: 15 Nm
Moment My max.: 19 Nm
Moment Mz max.: 8 Nm
