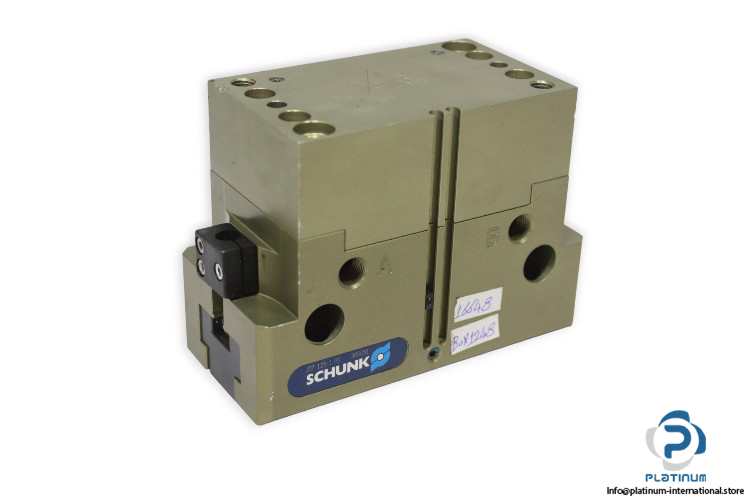

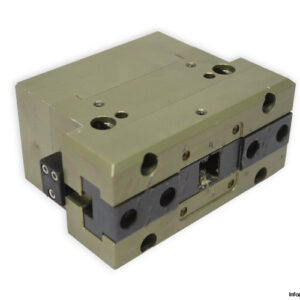

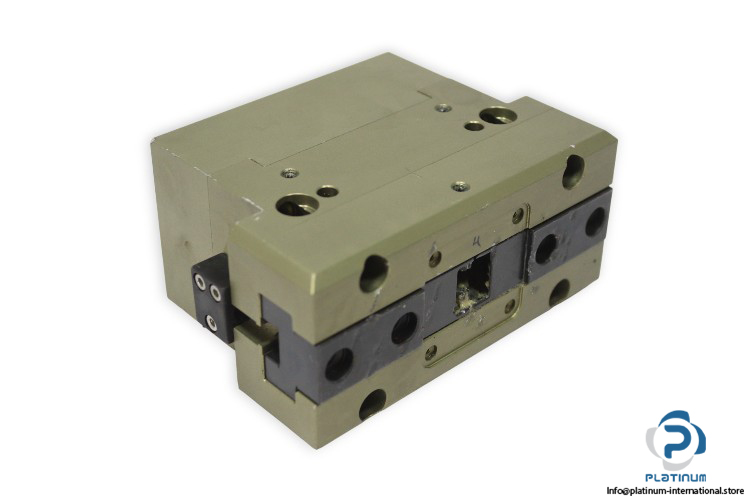

JGP 125-1 AS Universal Gripper
The JGP 125-1 AS Universal Gripper is a high-performance pneumatic gripper designed for reliable handling of workpieces in industrial automation systems. It offers strong gripping force, precision repeatability, and durability for demanding applications.
Type: Universal Gripper

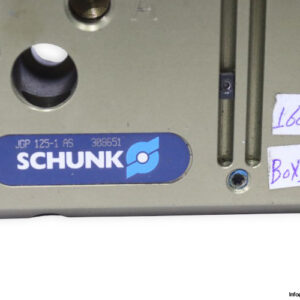

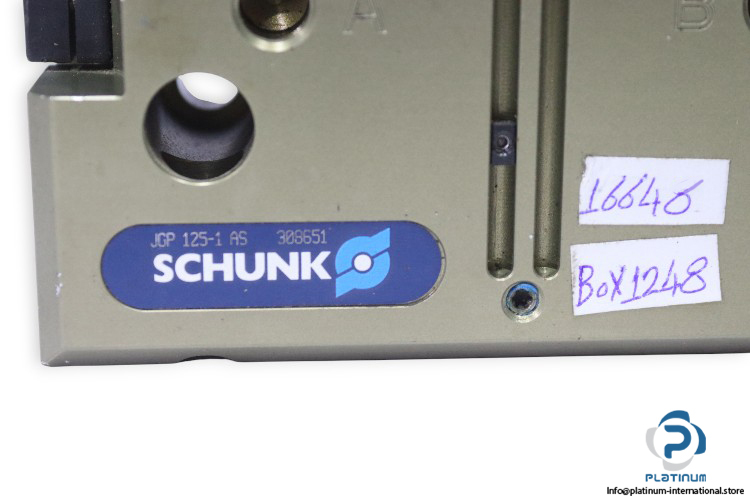

Model: JGP 125-1 AS
MRN: 308651
| Stroke per Jaw | 13.0 mm |
| Closing Force | 1470 N |
| Closing Force (with Finger Lengths of 0 mm) | 1700 N |
| Minimum Spring Force | 390 N |
| Recommended Workpiece Weight | 5.4 kg |
| Cylinder Volume per Double Stroke | 119.0 cm³ |
| Minimum Operating Pressure | 4.0 bar |
| Maximum Operating Pressure | 6.5 bar |
| Nominal Operating Pressure | 6.0 bar |
| Minimum Air Purge Pressure | 0.5 bar |
| Maximum Air Purge Pressure | 1.0 bar |
| Closing Time | 0.08 s |
| Opening Time | 0.12 s |
| Closing/Opening Time with Spring | 0.3 s |
| Maximum Permissible Finger Length | 145.0 mm |
| Maximum Permissible Weight per Finger | 2.1 kg |
| Protection Class | IP40 |
| Minimum Ambient Temperature | 5 °C |
| Maximum Ambient Temperature | 90 °C |
| Repeat Accuracy | 0.01 mm |
| Length X | 125.0 mm |
| Width Y | 60.0 mm |
| Height Z | 93.0 mm |
| Moment Mx Maximum | 95.0 Nm |
| Moment My Maximum | 115.0 Nm |
| Moment Mz Maximum | 80.0 Nm |
| Maximum Axial Force Fz | 2240.0 N |
