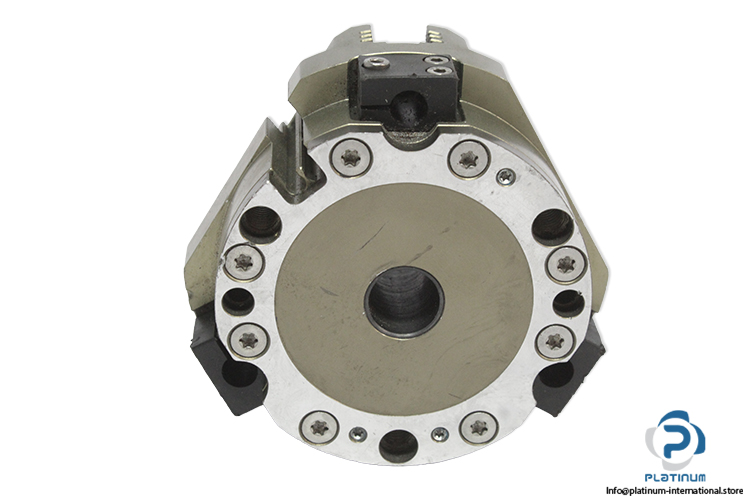

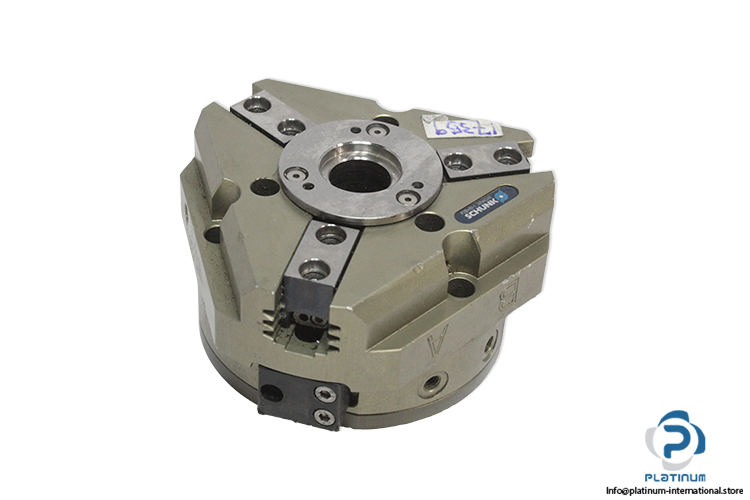

Schunk PZB+80-1 Universal Gripper
Universal Pneumatic Gripper
Schunk PZB+80-1 universal gripper with high gripping force, fast response, and compact design for industrial automation.Schunk PZB+80-1 Universal Pneumatic Gripper
A high-performance universal pneumatic gripper manufactured by Schunk, designed for reliable gripping, holding, and positioning tasks in automated handling and assembly systems. The PZB+80-1 offers high gripping forces, fast response times, and a compact design, making it suitable for demanding industrial automation applications. Manufacturer: Schunk
Type: Universal Gripper

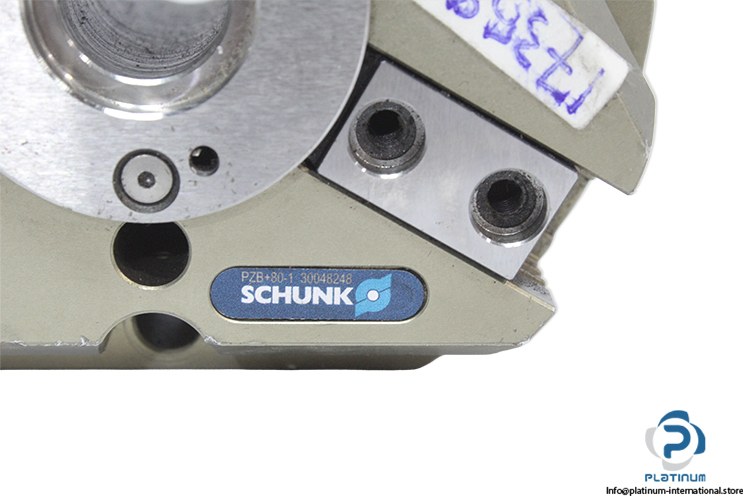

Model: PZB+80-1
Code: 30048248
Recommendation:
This Schunk universal gripper is ideal for automated handling, pick-and-place, and assembly applications requiring high gripping force and fast cycle times. For a complete automation solution, it is recommended to integrate this gripper with precise Sensors for position and part detection, and advanced Servo Motors to achieve coordinated motion control and enhanced system performance.
| Stroke per Jaw | 6.0 mm |
| Closing Force | 730.0 N |
| Opening Force | 830.0 N |
| Closing Force (0 mm Finger Length) | 800.0 N |
| Cylinder Volume per Double Stroke | 42.0 cm³ |
| Minimum Operating Pressure | 2.0 bar |
| Maximum Operating Pressure | 8.0 bar |
| Minimum Air Purge Pressure | 0.5 bar |
| Maximum Air Purge Pressure | 1.0 bar |
| Closing Time | 0.05 s |
| Maximum Permissible Finger Length | 90.0 mm |
| Protection Degree | IP40 |
| Ambient Temperature | 5 to 90 °C |
| Diameter | 96.0 mm |
| Height | 48.3 mm |
| Connection | 5 mm |
