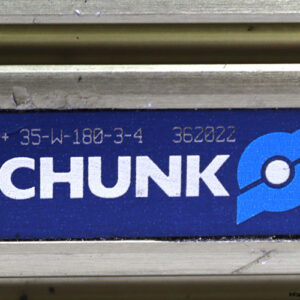

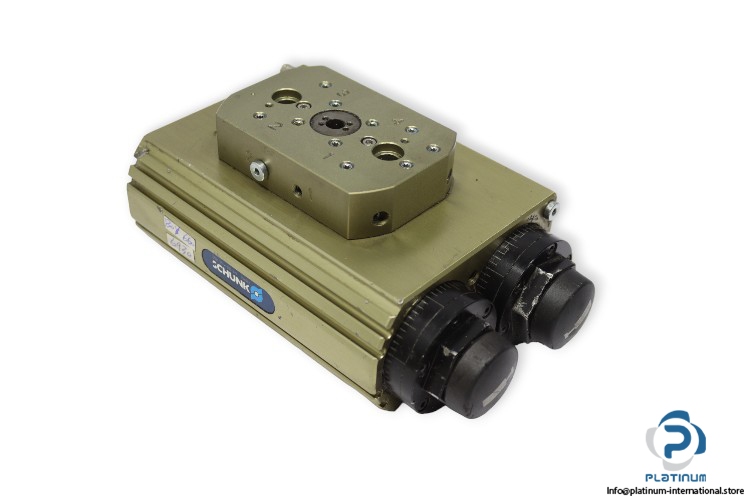

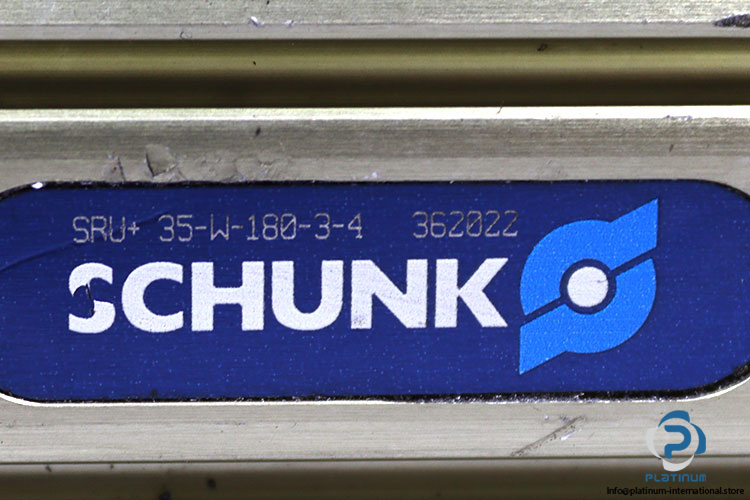

Schunk SRU+ 35-W-180-3-4 Universal Swivel Unit

Manufacturer: SCHUNK
Type: Universal Swivel Unit
Model: SRU+ plus 35-W-180-3-4
ID No.: 362022

End position damping: hydr. Damper
End position adjustability: 3
Torque: 13.4 Nm
Angle of rotation: 180°
Nominal Pressure: 6 bar
Max. Pressure: 8 bar
Fluid consumption: 216 cm³
Air consumption per cycle: 38.0 cm³
Diameter of connecting hose: 6 x 3.9 x 1.05
Max. Moment: 30.8 Nm
Max. Axial Force: 1500 N
Connection for proximity switches: M8
Dimensions: 195.6 x 107 x 81 mm
Ambient Temperature Range: 5 …
