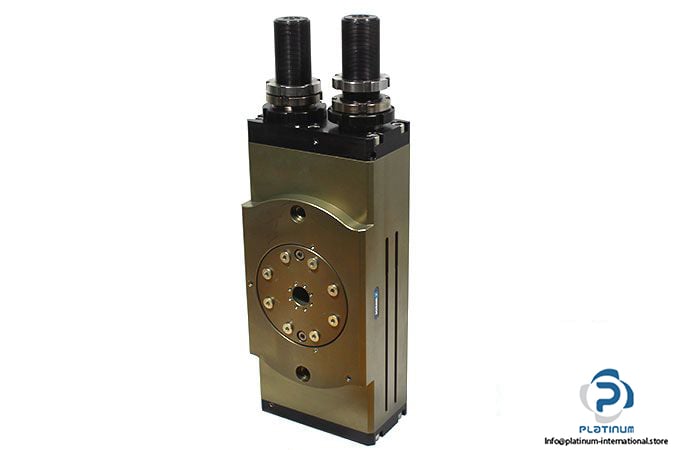

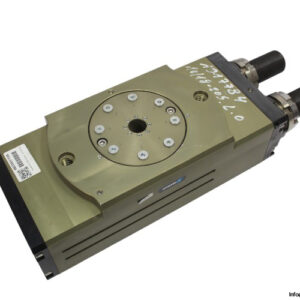

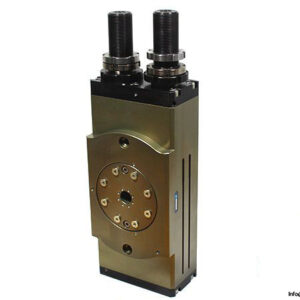

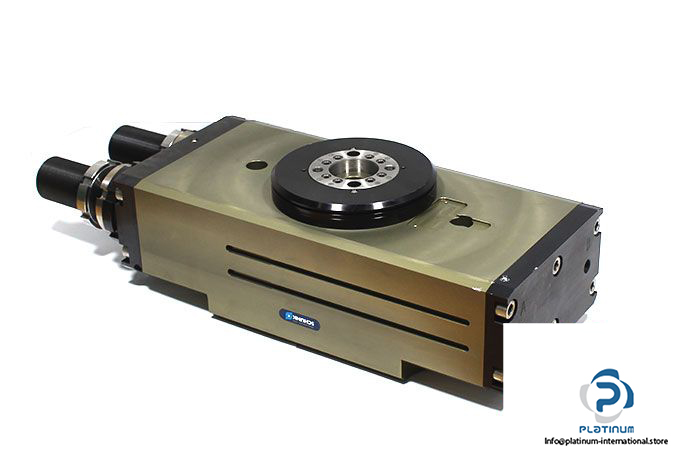

Schunk SRU+ 63-W-90-3-8-R Universal Swivel Unit

Manufacturer: Schunk

Type: Universal Swivel Unit

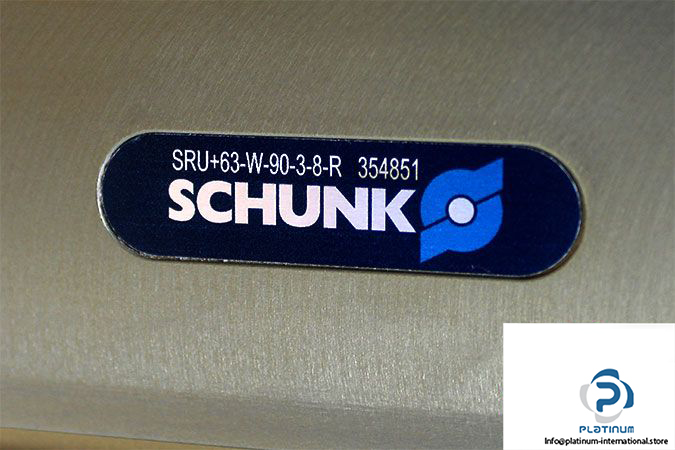

Model: SRU-PLUS 63-W-90-3-8-R

Part No: 0354851

Angle of Rotation: 90°

End Position Adjustability: 2°

Repeat Accuracy: 0.05°

Middle Position: None

Torque: 115 Nm

Fluid Consumption: 656 cm³

Nominal Pressure: 6 bar

Pressure Range: 4.5…8 bar

Diameter of Connecting Hose: 8 x 6 x 1

No. of Fluid Feed-Throughs: 8

Material: Aluminum

Ambient Temperature: 5…60 °C

Dimensions: 526 x 180 x 138.5 mm

Protection Class: IP67

Weight: 28 kg

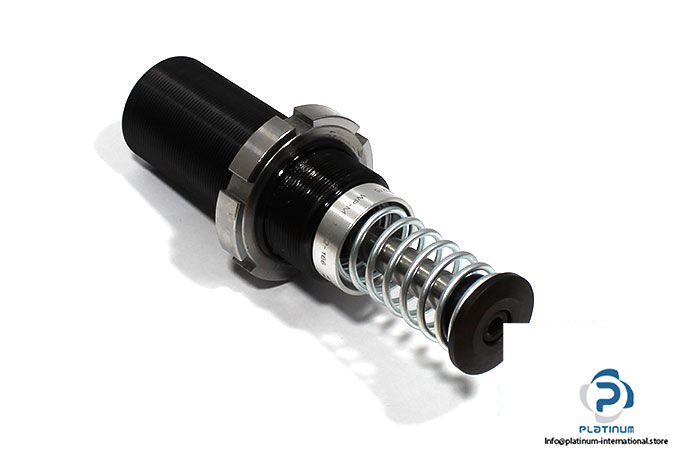

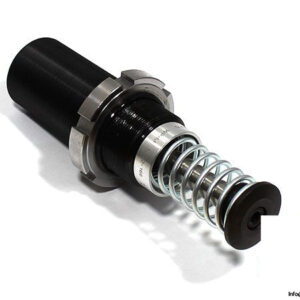

Attachment: SCHUNK WP-M 1.5X2-166 PNEUMATIC SHOCK ABSORBER

Manufacturer: Schunk

Type: Pneumatic Shock Absorber

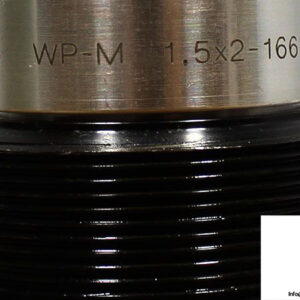

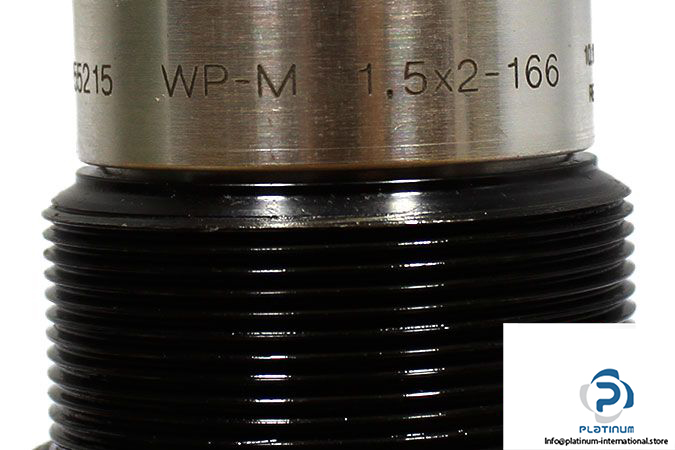

Model: WP-M 1.5X2-166

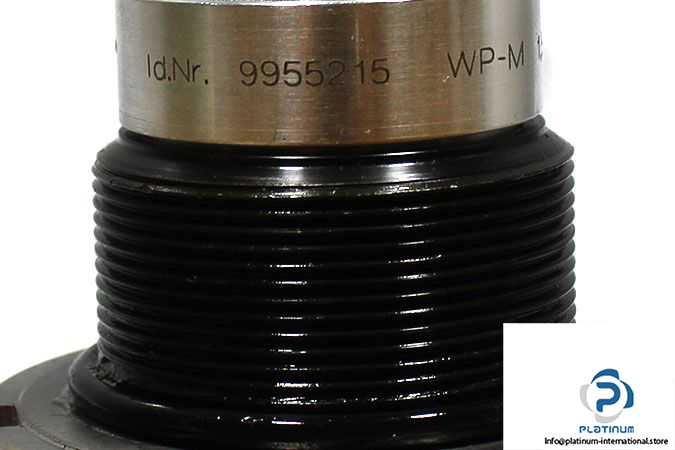

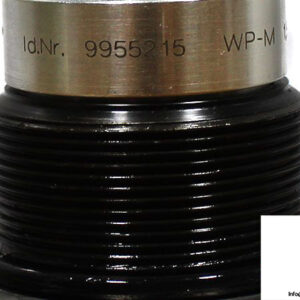

Part No.: 9955215

Stroke Length: 57 mm

Rod Diameter: 14 mm

Piston Diameter: 38 mm

Total length: 190 mm

Diameter and Step for Threaded Surface: 1.5 x 44.5 mm

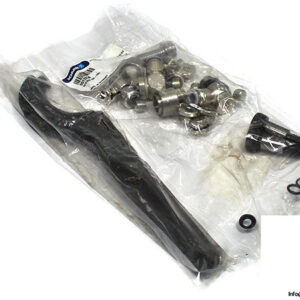

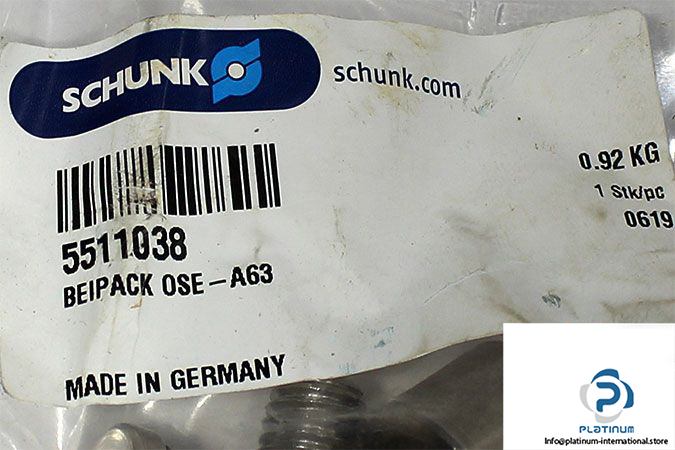

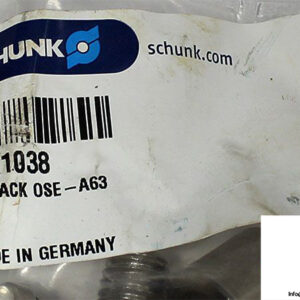

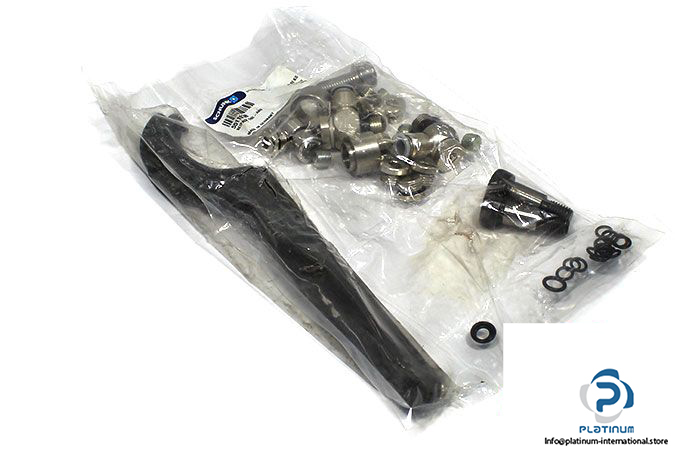

Accessory: SCHUNK OSE-A63 BEIPACK

Manufacturer: Schunk

Type: Pneumatic Shock Absorber

Model: OSE-A63

Part No.: 5511038
