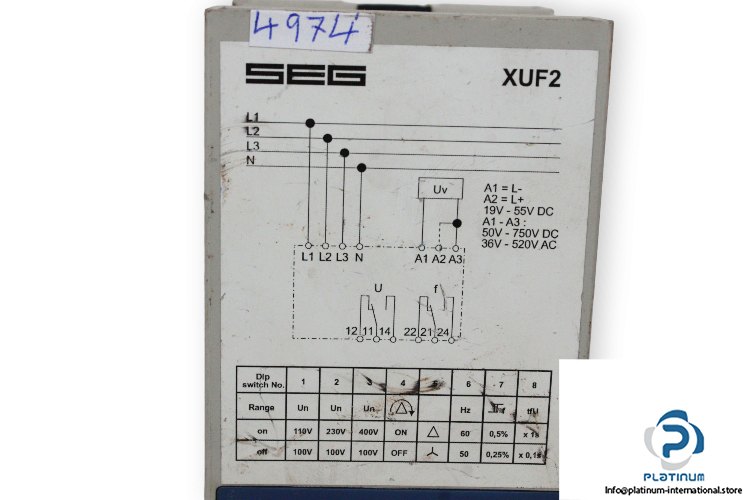

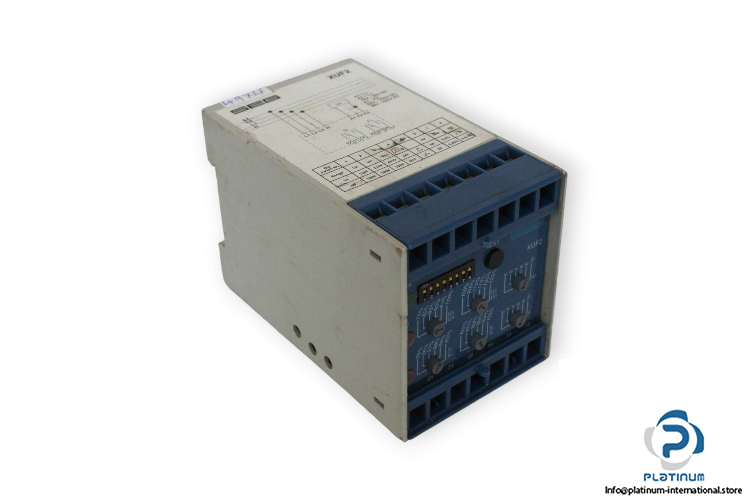

SEG XUF2 Voltage AND Frequency Relay

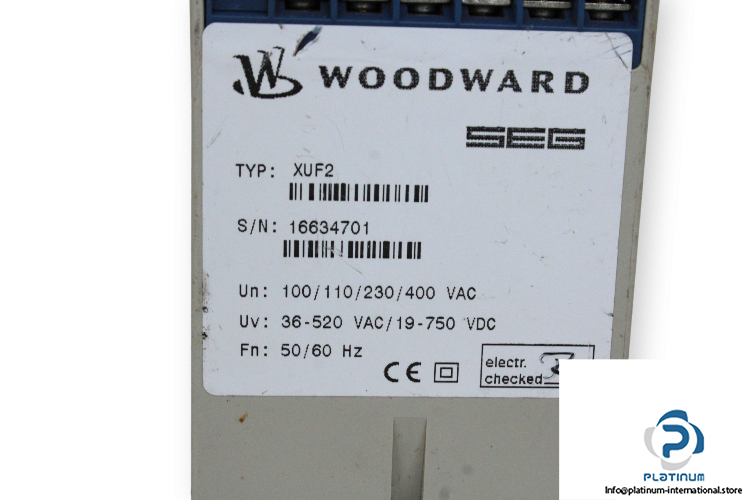

Manufacturer: Seg WoodWard
Type: Voltage and Frequency Relay
Model: XUF2
Rated Voltage: 100 … 400 V AC
Rated Frequency: 50 … 60 Hz
power Consumption: 1 VA
Auxiliary Voltage Range: 36 … 520 V AC
Operating Temperature: -25 … 70 °C
Degree of protection: IP40
Number of Relays: 2
Contacts: 2 Changeover Contact
Max. switching capacity: 1250 VA
Max. switching voltage: 250 V AC, 220 V DC
Max Rated Current: 5A
Contact Life: 105 Switching Cycles at Maximum Switching Capacity
Dimensions: 110 X 75 X 65 mm
