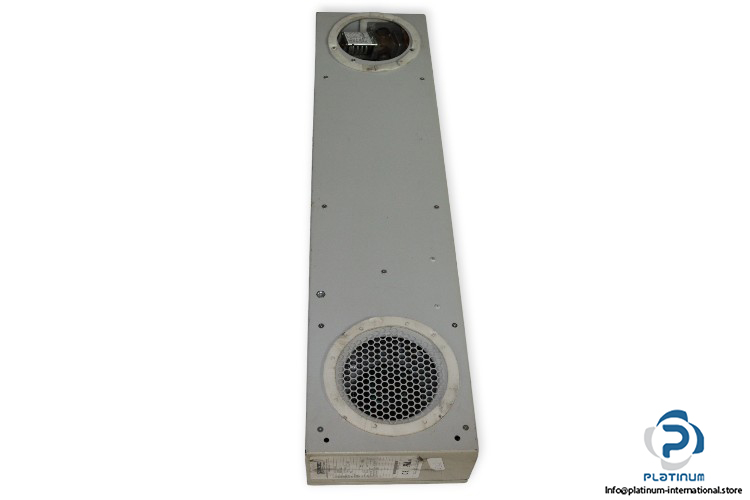

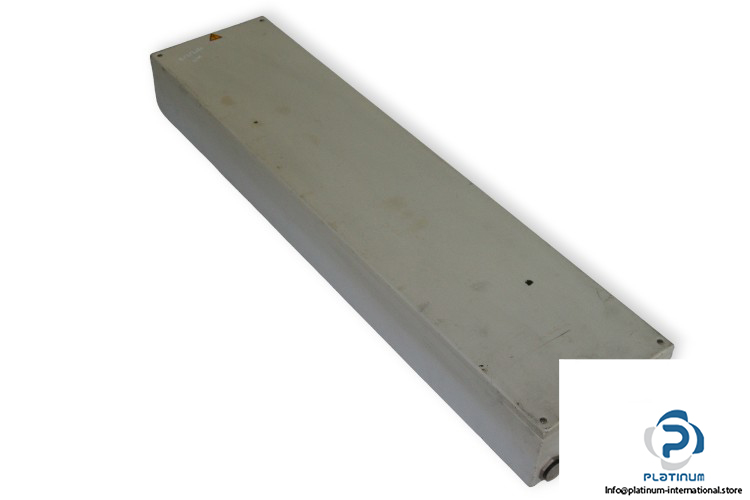

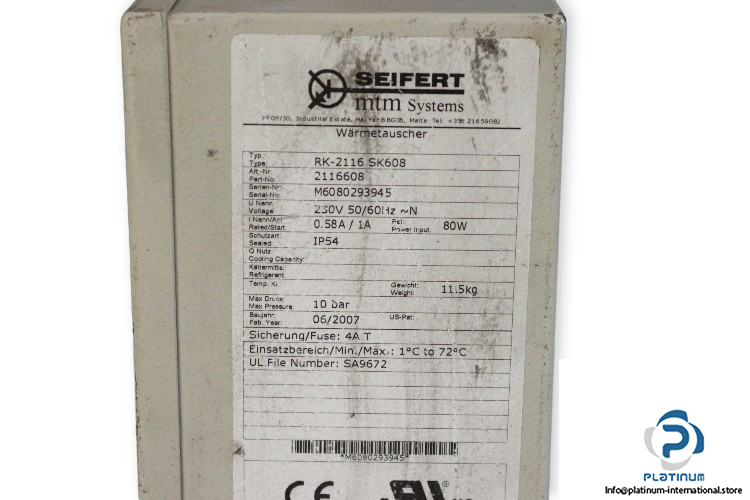

Seifert RK-2116 SK608 Cooling Unit

Manufacture: Seifert
Type: Cooling Unit
Model: RK2116SK608
Art. No.: 2116608

Voltage: 230 V AC
Frequency: 50/60 Hz
Current Rating: 0.58/1 A (80 W)
Pressure: 10 bar
Fuse: 4 A (T)
Ingress Protection: IP54
Cooling capacity L35W10 (200 l/h): 2.1 Kw
Cooling capacity L35W10 (500 l/h): 2.2 kW
Coolant: Water, light oils or similar
Air flow volume (system / unimpeded): 270 / 690 m³/h @ 50 Hz, 300/ 740 m³/h @ 60 Hz
Mounting: Wall mounted / internal
Connection: 3 m cable ready for connection
Housing Material: Mild steel, powder coated

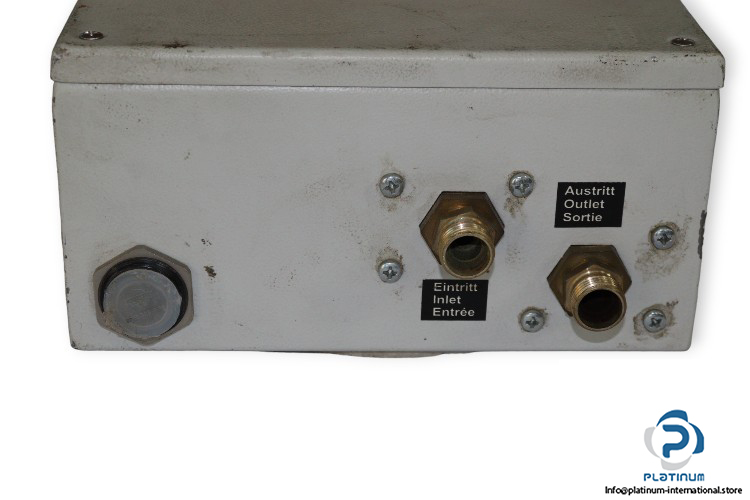

Water connection: Rp 1/4″ – inside thread with 2 connectors for pipe internal diameter of 10 mm
Temperature range: 1 … 72°C
Dimensions: 891 x 212 x 105 mm
