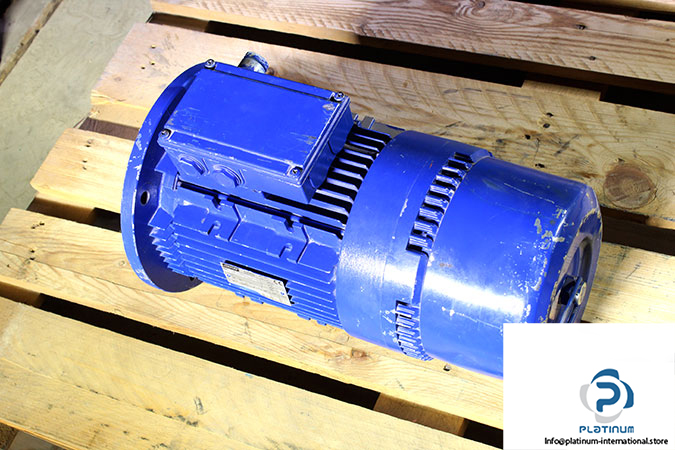

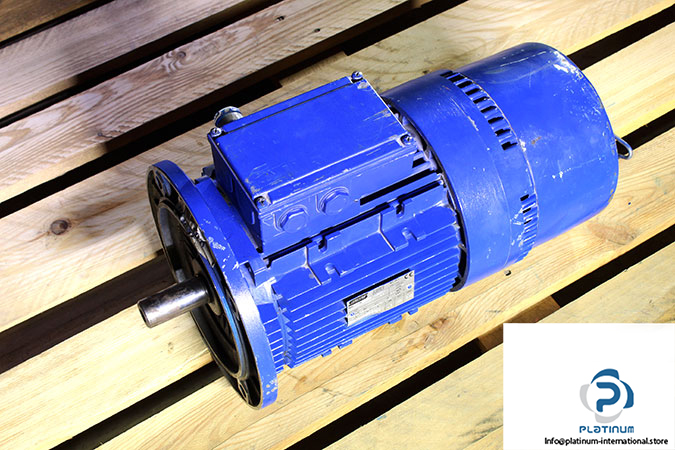

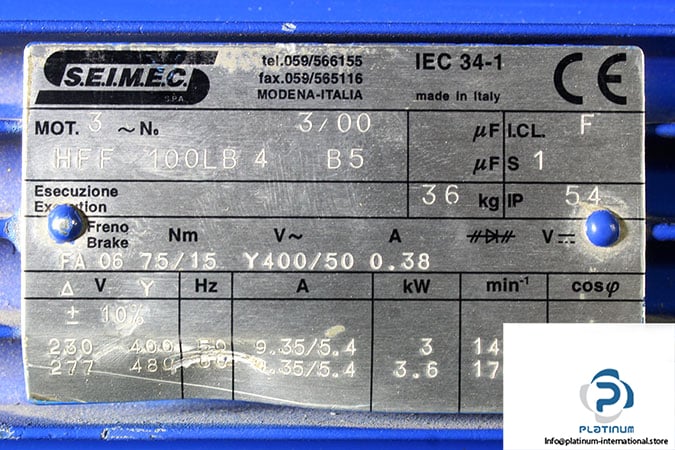

Seimec HFF 100LB 4 B5 3PH Motor Brake

Manufacturer: SEIMEC
Type: Motor Brake
Model: HFF100LB4B5

Frequency (HZ): 50
Voltages (V(Delta – Star)): 230 – 400
Rated Current (A(Delta – Star)): 9.35 – 5.4
Rated Power (KW): 3
Rated Speed (RPM): 1420
Pawer factor: 0.78

Frequency (HZ): 60
Voltages (V(Delta – Star)): 277 – 480
Rated Current (A(Delta – Star)): 9.35 – 5.4
Rated Power (KW): 3.6
Rated Speed (RPM): 1700
Pawer factor: 0.78
Number of Pole: 4
Protection Class (IP): 54
Duty: S1

BRAKE Model: FA 06
Max AC Brake Torque (Nm): 40
Rated AC Brake Current (mA): 380
