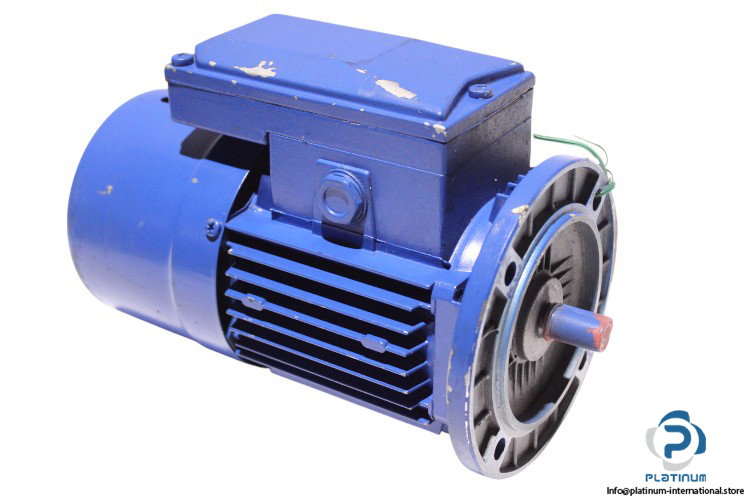

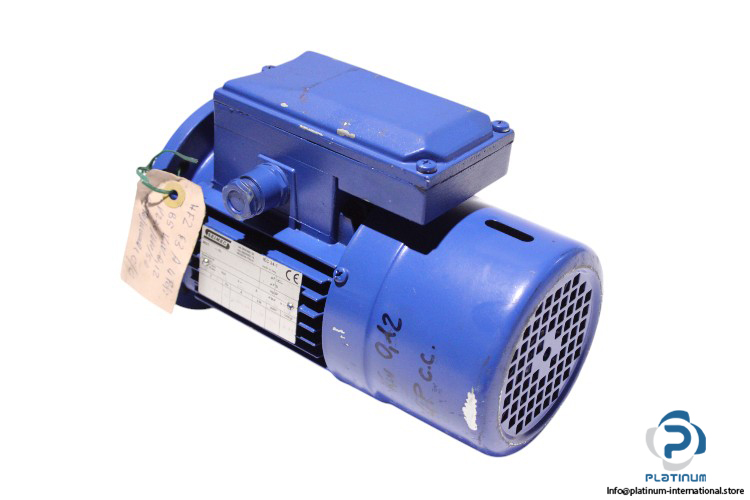

Seimec HFZ 63A 4 B5 Brake Motor

SEIMEC HFZ63A4B5 BRAKE MOTOR

The SEIMEC HFZ63A4B5 Brake Motor is designed for reliable performance in various industrial applications. With a rated power of 0.12 kW and a rated speed of 1400 min-1, this motor is ideal for situations requiring high-efficiency operation. Featuring a thermal class of F and an IP54 protection class, it offers durability and safety in diverse environments.

Manufacturer: SEIMEC

Type: Brake Motor

Model: HFZ63A4B5

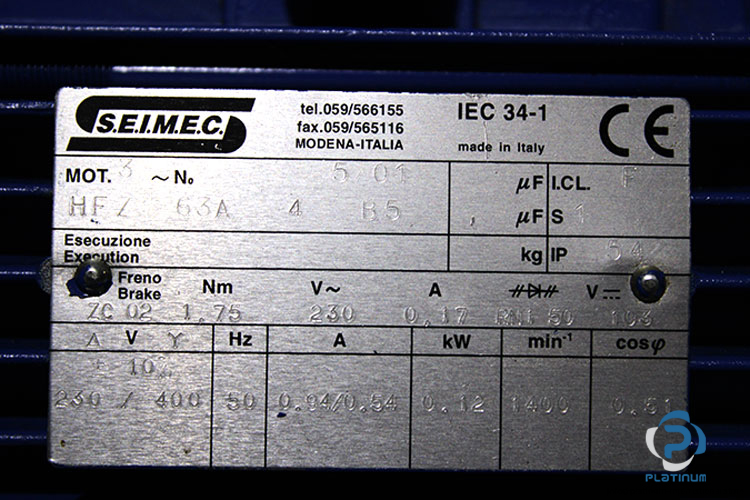

Technical Specifications

• Rated Power [kW]: 0.12
• Rated Voltage [V]: 230 / 400
• Rated Current [A]: 0.94 / 0.54
• Rated Speed [min-1]: 1400
• Frequency [Hz]: 50
• Protection Class [IP]: 54
• Thermal Class: F
• Duty: S1
• Power Factor [cos]: 0.51
• Brake: ZC 02
• Rated Voltage [V] (Brake): 230 AC
• Rated Current [A] (Brake): 0.17
• Rated Torque [Nm]: 1.75
