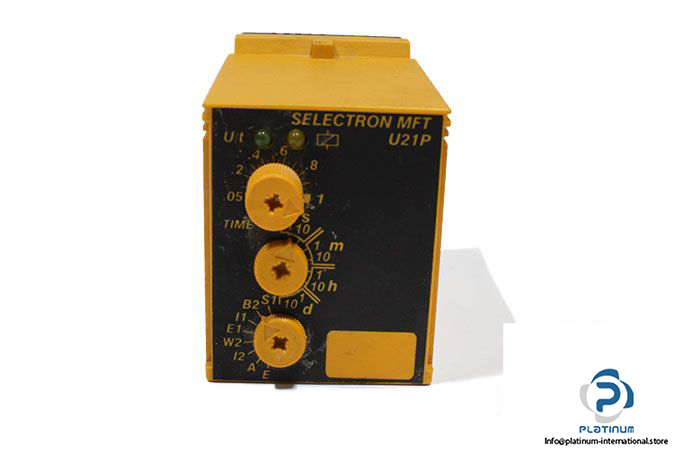

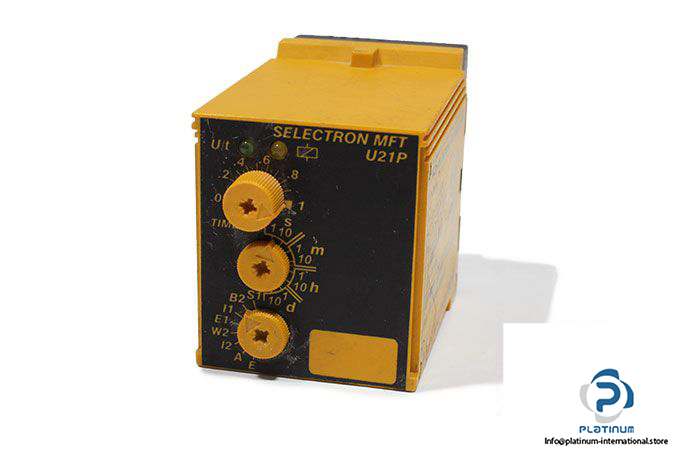

Selectron MFT U21P Multifunctional Time Delay Relay

Manufacturer: SELECTRON

Type: Multifunctional Time Delay Relay

Model: MFT U21P

Art No.: 41140005

Nominal Voltage: 24 V AC/DC, 1.5 VA / 1 W

                               110 VAC, 2 VA / 1 W

  ……………………………240 VAC, 11 VA / 1.4 W

Recovery Time: max. 90 ms

Control Contact/Voltage Controlled:

Parallel switching of loads possible

Parallel min. load 1 VA or 0.5 W

Cover 90% of the supply voltage

Resistive >1MΩ (contact K2 open)

Rest Current at parallel load: approx. 2 mA at contact K2 open

Output Relay: 1 or 2 changers potential free

Time Range: 0.05 s … 10 days

Dimensions: 38 X 80 X 51 mm

Weight: 0.06 Kg
