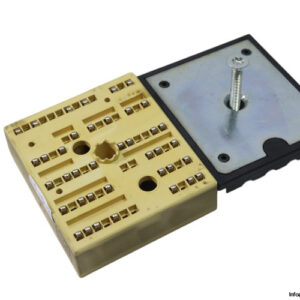

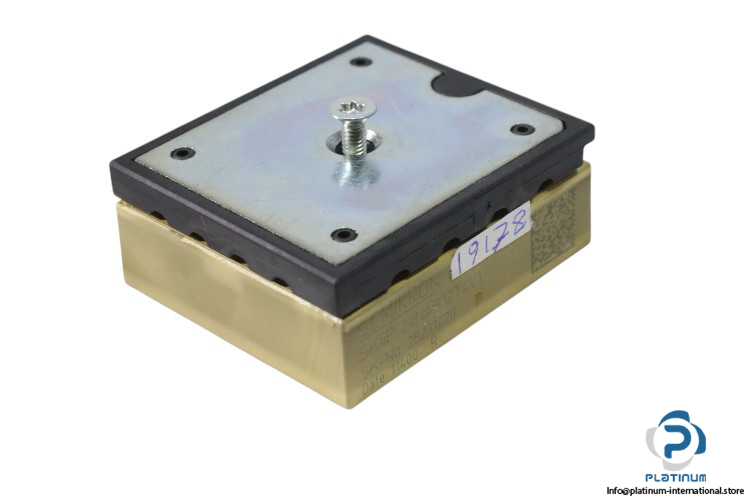

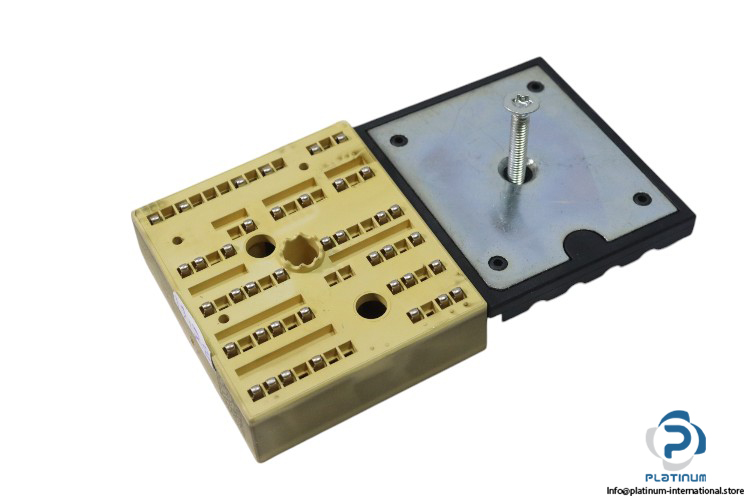

Semikron Skiip 24NAB12T4V1 Igbt Module
IGBT Module
The Semikron SKIIP24NAB12T4V1 IGBT Module is designed for inverter applications up to 22 kVA and ABB ACS880 drives. With 1200V voltage and 35A current, it ensures efficient power conversion and reliability.Semikron SKIIP24NAB12T4V1 IGBT Module
The Semikron SKIIP24NAB12T4V1 IGBT Module is a high-performance power module designed for efficient energy conversion in inverter applications up to 22 kVA. Engineered for ABB ACS880 drives, this module delivers superior switching performance, reliability, and robust thermal management.
Manufacturer: Semikron
Type: IGBT Module

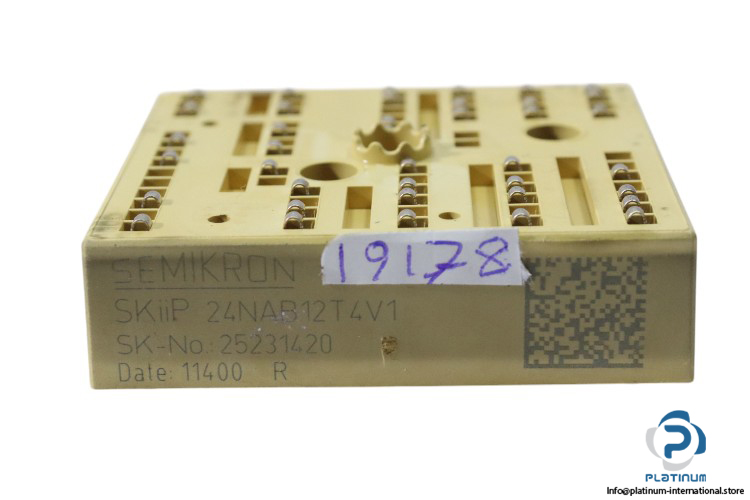

Model: SKIIP24NAB12T4V1
Part No.: 25231420
Features
Trench 4 IGBTs
Robust and soft-switching freewheeling diodes in CAL technology
Highly reliable spring contacts for electrical connections
Designed for high-efficiency power conversion, the Semikron SKIIP24NAB12T4V1 is an ideal choice for demanding industrial applications, offering durability, precision, and optimized thermal performance.
| Applications | Inverter up to 22 kVA, Typical motor power 11 kW |
| Designed for | ABB ACS880 drives |
| Voltage | 1200 V |
| Current | 35 A |
| Thickness of Thermal Paste | 55 mm |
| Technology | IGBT |
| Transistor Polarity | Six NPN |
| No. of Pins | 29 Pins |
| Dimensions | 59 x 52 x 16 mm |
| UL recognized | File no. E63532 |
